Visaton DK 133 - 8 ohm pressure chamber horn loudspeaker
Pressure chamber horn loudspeaker
Visaton DK 133 - 8 ohm pressure chamber horn loudspeaker
Pressure chamber horn loudspeaker
€143.88
Our previous price
€205.54
Save 30%
Tax included
Shipping excluded
4-0204
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

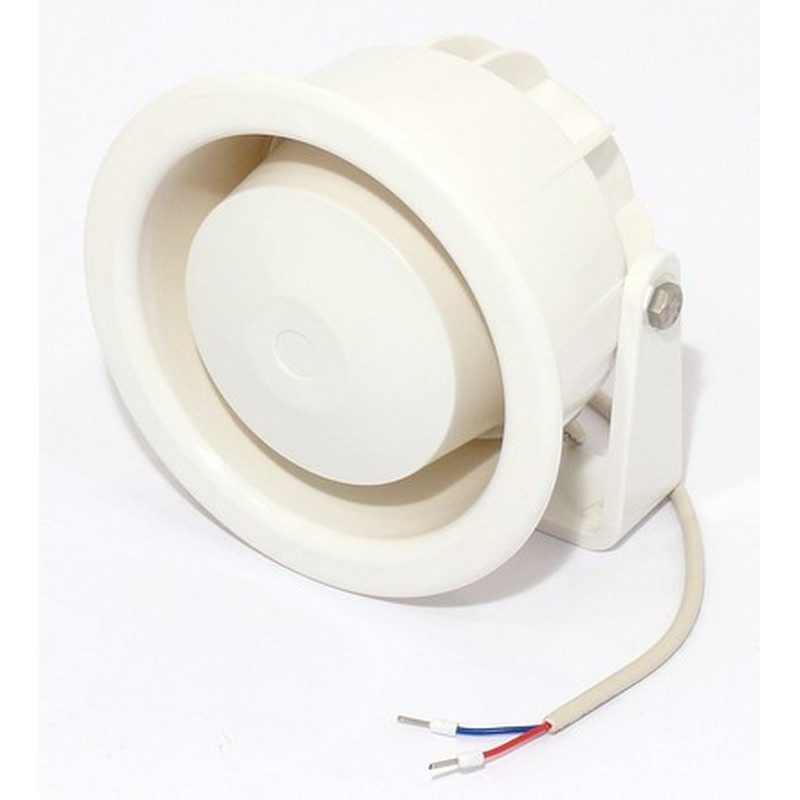

Pressure chamber horn loudspeaker in waterproof version with 8 ohm impedance.
High IP protection class, high sound pressure, good speech comprehensibility, compact design.
Applications
- sounding of factory halls, railway stations, etc.
- External sounding on vehicles
- Use in alarm systems
Characteristics
- UV-resistant
- very high efficiency
Technical data
| Rated load capacity | 10 W |
|---|---|
| Music loading | 15 W |
| Nominal impedance Z | 8 Ohm |

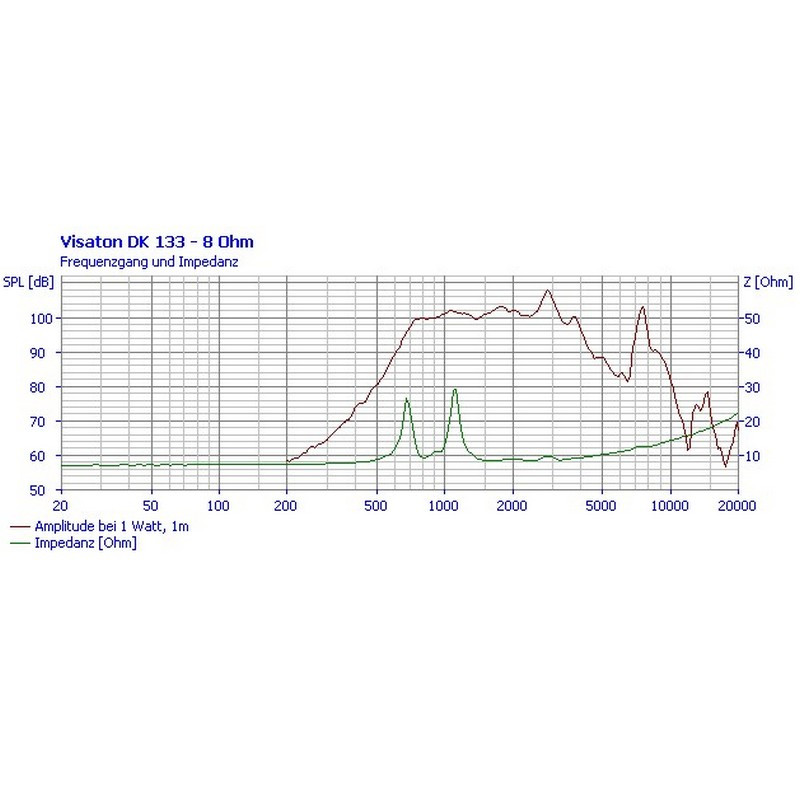

| Sound pressure level | 106 dB (1 W/1 m) @ 2800 Hz |
| Transmission range (-10 dB) | 570–4400 Hz |
| Medium sound pressure level | 100 dB (1 W/1 m) |

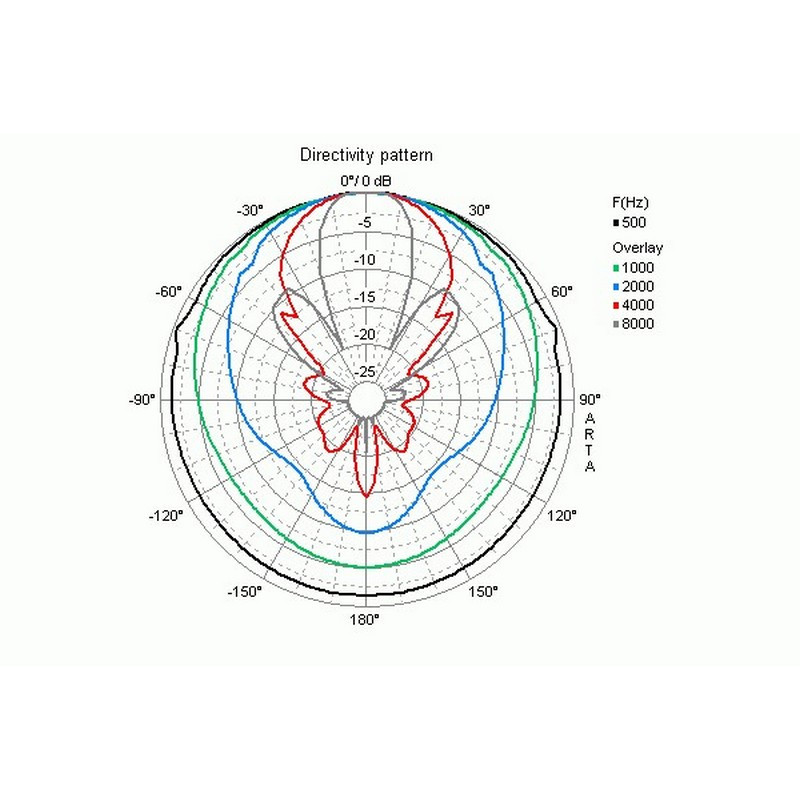

| Beam angle (-6 dB) | 63°/4000 Hz |
| Oscillating coil diameter | 38 mm |
| Weight net | 0,625 |
| Connections | End sleeves/ ferrules |
| Length of connection cable | 0,5 m |
| Protection class | IP 67 |
| Temperature range | −25 ... 70 °C |
| Colour | RAL 9010 |
