Visaton DK 133 - 100 V Pressure chamber horn loudspeaker
Pressure chamber horn loudspeaker
Visaton DK 133 - 100 V Pressure chamber horn loudspeaker
Pressure chamber horn loudspeaker
€159.40
Our previous price
€227.71
Save 30%
Tax included
Shipping excluded
4-0203
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

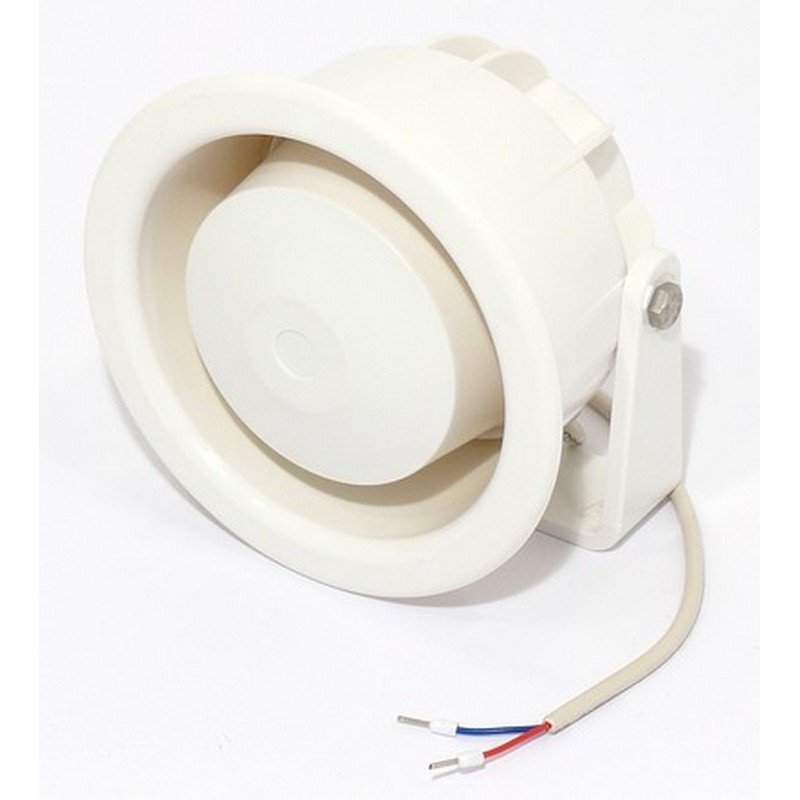

Pressure chamber horn loudspeaker in waterproof version with 100V transmitter.
High IP protection class, high sound pressure, good speech comprehensibility, compact design.
Applications
- sounding of factory halls, railway stations, etc.
- External sounding on vehicles
- Use in alarm systems
Characteristics
- UV-resistant
- very high efficiency
- 100-V transformer
Technical data

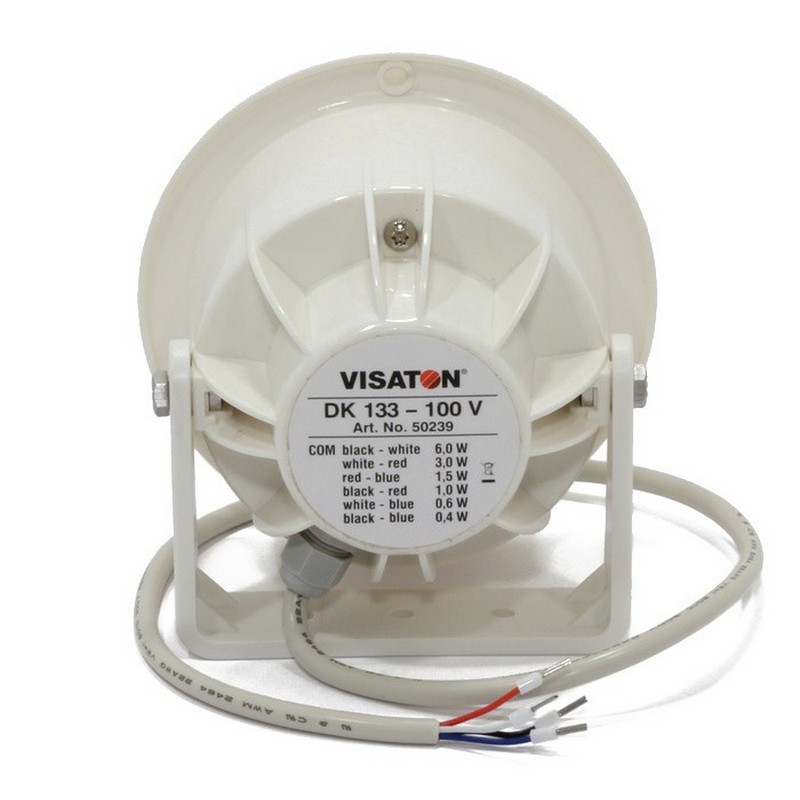

| Trafo matching | 6/3/1,5/1/0,6/0.4 W |
|---|---|

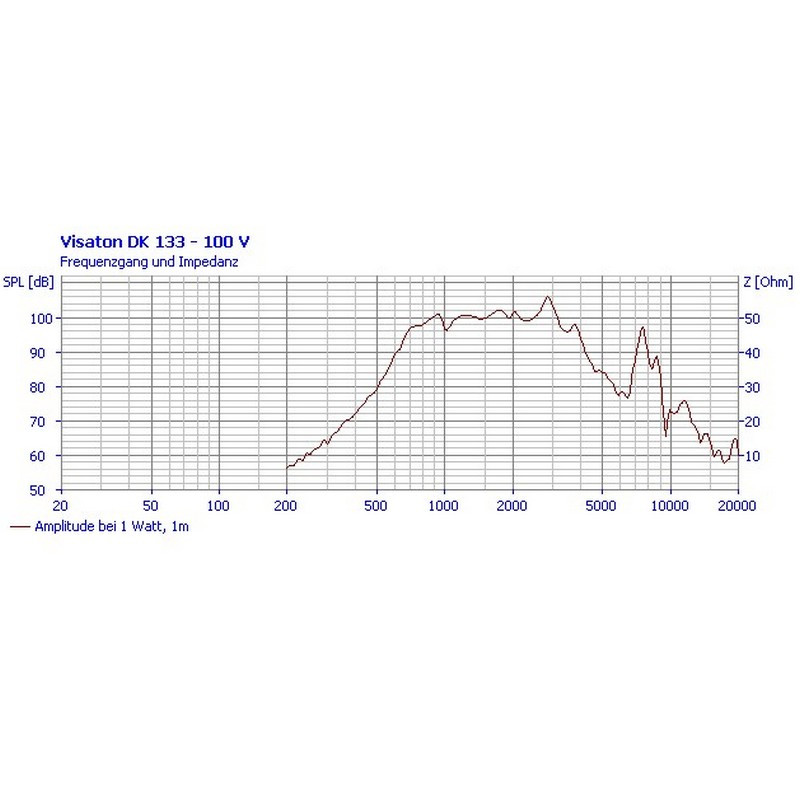

| Sound pressure level | 106 dB (1 W/1 m) @ 2800 Hz |
| Transmission range (-10 dB) | 570–4400 Hz |
| Medium sound pressure level | 100 dB (1 W/1 m) |
| Maximum sound pressure level | 107 dB (6 W/1 m) |

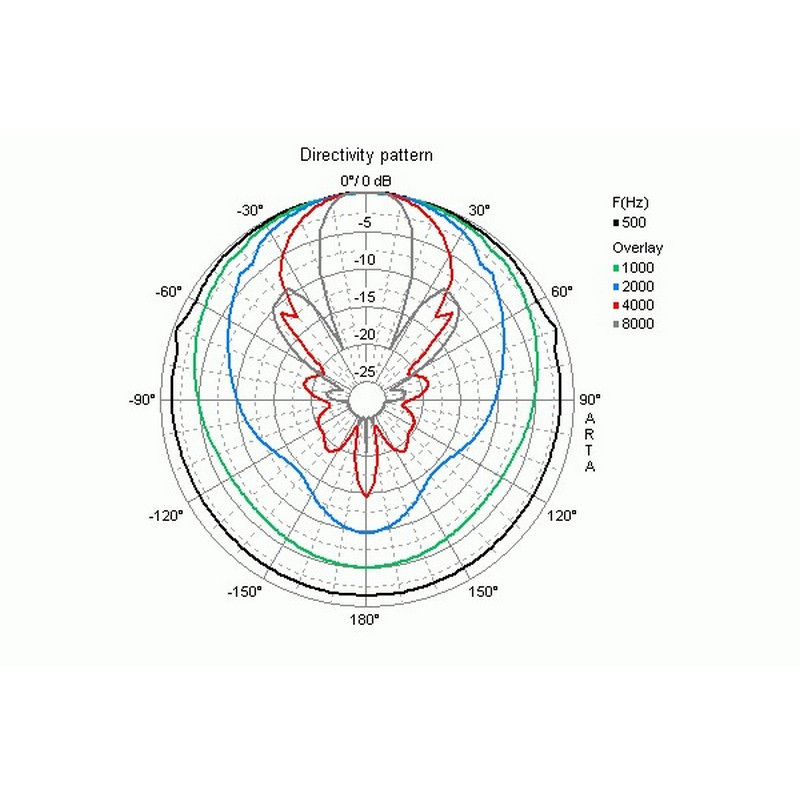

| Beam angle (-6 dB) | 63°/4000 Hz |
| Oscillating coil diameter | 38 mm |
| Weight net | 0,83 |
| Connections | End sleeves/ ferrules |
| Length of connection cable | 0,5 m |
| Protection class | IP 67 |
| Temperature range | −25 ... 70 °C |
| Colour | RAL 9010 |
