Visaton DK 6 MW - 100 V/70 V/8 Ohm pressure chamber horn loudspeaker

Pressure chamber horn loudspeaker

€135.71
Our previous price €193.87
Save 30%
Tax included Shipping excluded
Pressure chamber horns
4-0205
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

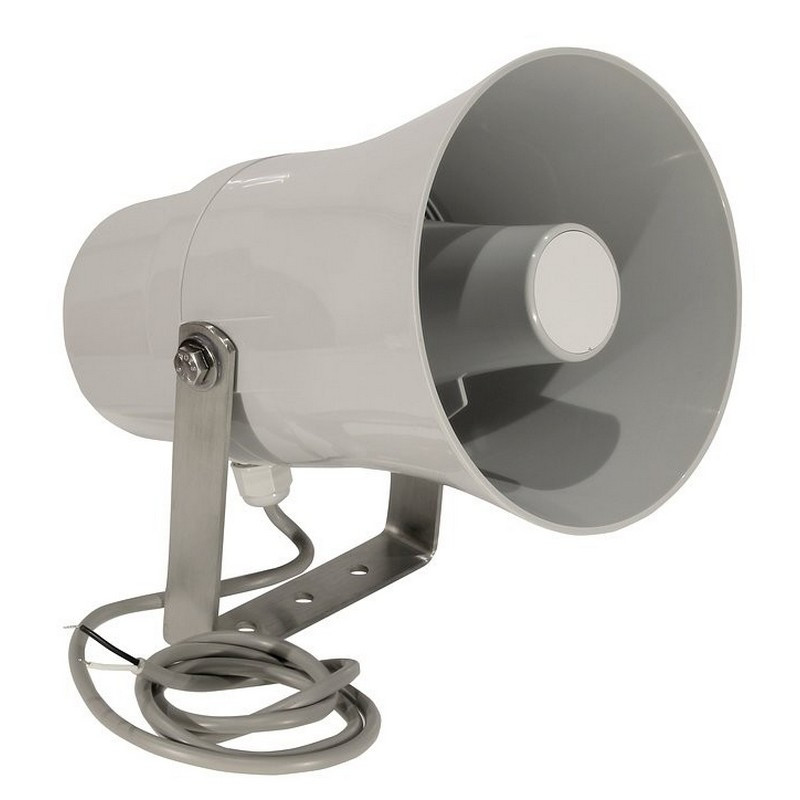

Pressure chamber horn loudspeaker with very high mean sound pressure level and wide, balanced transmission range.

This ensures excellent speech comprehensibility.

Performance adjustment in 100-V/70-V or. 8-ohm operation takes place via rotary switches which are protected against accidental switching or switching off.

UV-resistant, light grey plastic housing (ABS UL 94: HB). Swivelable stainless steel bracket (V2A/AISI 304) for mounting on ceilings, walls, columns, etc.

Technical data

Rated load capacity 10 W
Music loading 20 W
Trafo matching 100 V: 10 W/5 W/2.5 W/ 1.25 W/Off/8 Ohm
70 V: 5 W/2.5 W/1,25 W/ 0,625 W/Off/8 Ohm

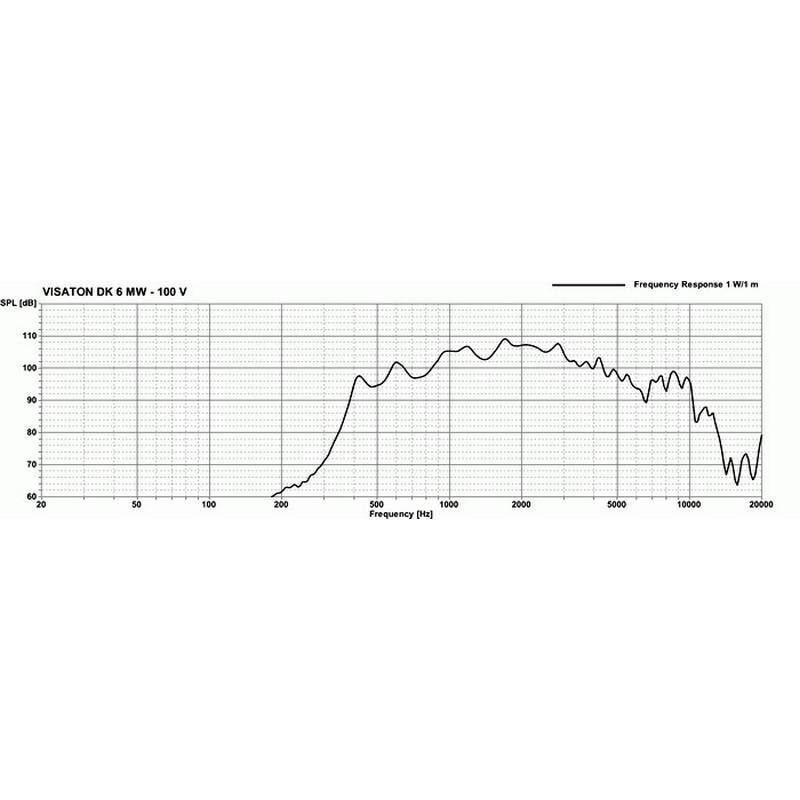

Transmission range (-10 dB) 400–5500 Hz
Medium sound pressure level 106 dB (1 W/1 m)
Maximum sound pressure level 116 dB (10 W/1 m)
Weight net 1,54 kg
Protection class IP 66
Temperature range 30... 90 °C
