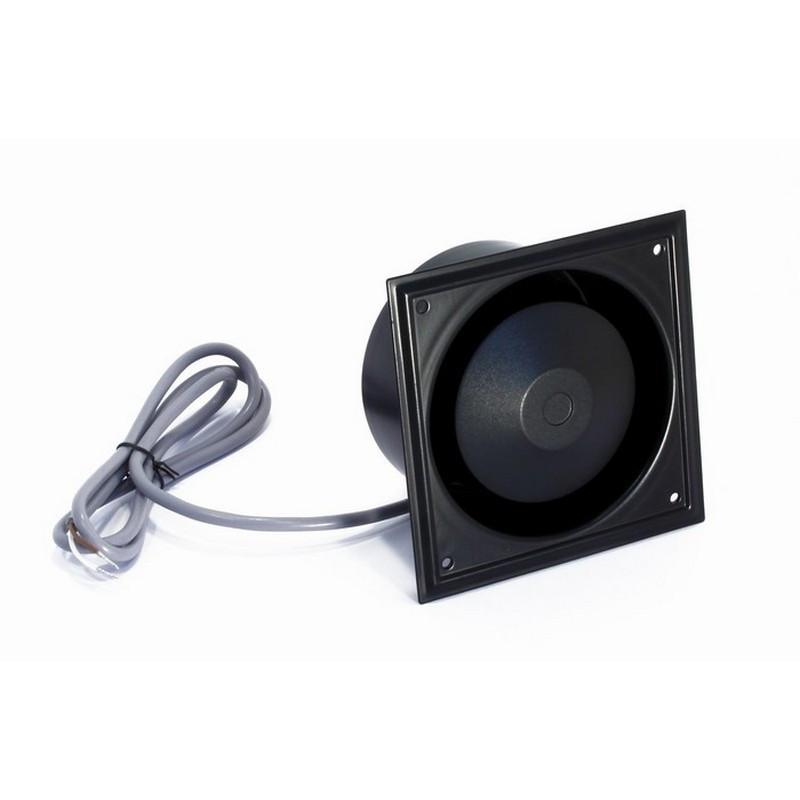

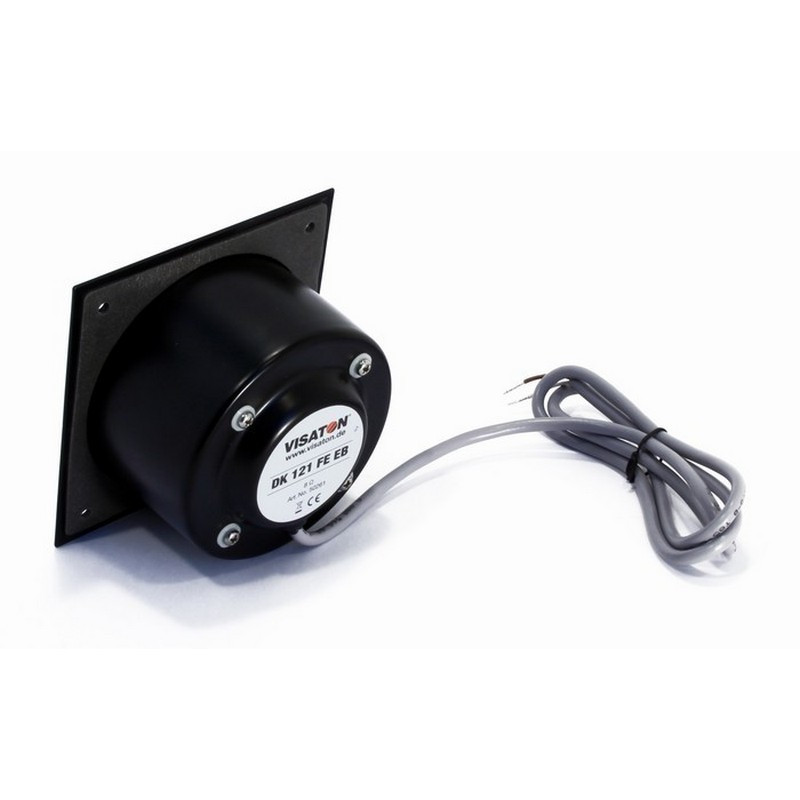

Visaton DK 121 FE EB - 8 Ohm Pressure Chamberhorn Speaker
Integrated pressure chamber horn loudspeaker
Visaton DK 121 FE EB - 8 Ohm Pressure Chamberhorn Speaker
Integrated pressure chamber horn loudspeaker
€115.08
Our previous price
€164.40
Save 30%
Tax included
Shipping excluded
4-0201
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
Integrated pressure chamber horn loudspeaker with low height.
Waterproof version with 8 ohm impedance and ferrite magnet.
Case made of black lacquered aluminium, polypropylene horn inserts (PP).
High IP protection class, high sound pressure and good speech.
Due to the compact dimensions especially suitable for unobtrusive assembly, z.B. on vehicles.
The connection is made via a two-wire hose line (100 cm); certified according to ISO 6722 Kls. B 2 x 0,75 mm2.
Differences to the DK 121 - 8 Ohm: - Ferrit Magnet - Specs. Cable type - No potential compensationApplications
- External sounding on vehicles
- sounding of railway stations, workshops, etc.
- Use in alarm systems
Characteristics
- weatherproof aluminium housing
- Plastic housing insert
- UV-resistant
Technical data
| Rated load capacity | 10 W |
|---|---|
| Music loading | 15 W |
| Nominal impedance Z | 8 Ohm |

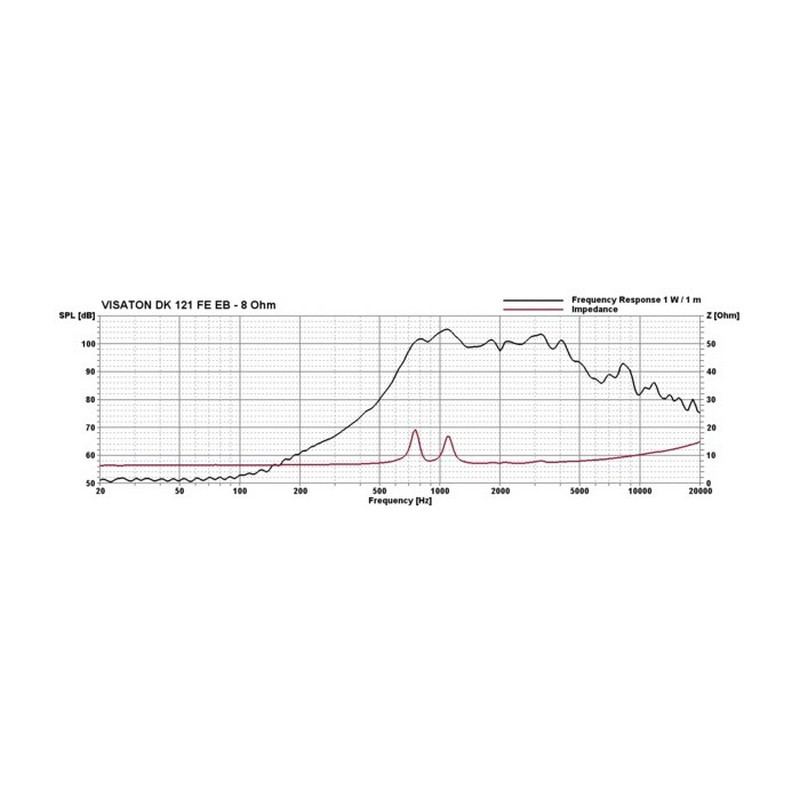

| Transmission range (-10 dB) | 620–5000 Hz |
| Medium sound pressure level | 100 dB (1 W/1 m) |

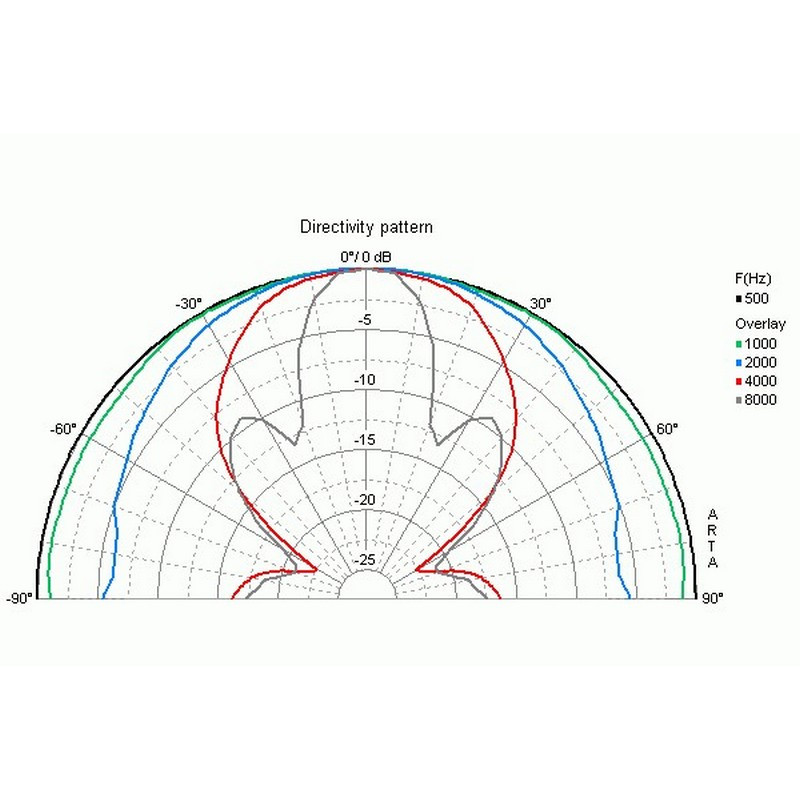

| Beam angle (-6 dB) | 69°/4000 Hz |
| Weight net | 0,62 |
| Length of connection cable | 1.0 m |
| Protection class | IP 67 |
| Temperature range | −25 ... 70 °C |
