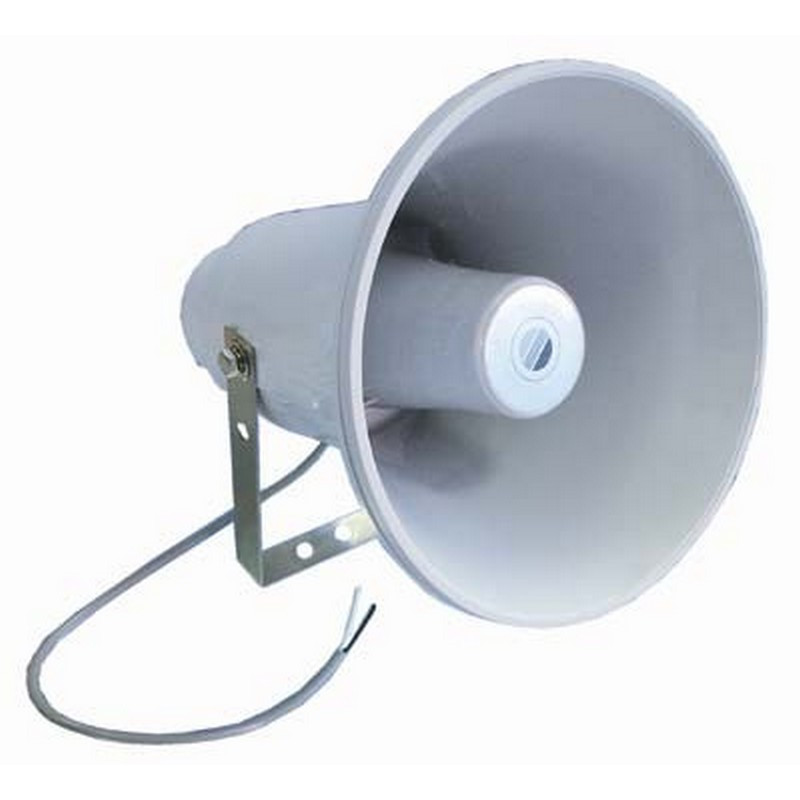

Visaton DK 8 P - 100 V/15 W Pressure chamber horn loudspeaker
Pressure chamber horn loudspeaker
Visaton DK 8 P - 100 V/15 W Pressure chamber horn loudspeaker
Pressure chamber horn loudspeaker
€117.71
Our previous price
€168.15
Save 30%
Tax included
Shipping excluded
4-0209
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
Pressure chamber horn loudspeaker with 100 V transmitter.
Light grey plastic housing.
Power adaptation to the 100-V network by means of rotary switches, additionally 20-ohm adjustment possible.
High sound pressure and broad transmission range, thereby excellent speech comprehensibility.
Swivelable metal hanger for fastening to ceilings, walls, columns etc.
Applications
- sounding of factory halls, railway stations, etc.
- External sound
Characteristics
- Functional at low temperatures according to EN 60068-2-1 (-40 °C; 96 h)
- meets the requirements of Germanischer Lloyd (requirements for electrical equipment/colds)
- Plastic: ABS (UL 94:HB)
- Metal hanger: stainless steel (1.4301)
Technical data
| Trafo matching | 15; 10; 5; 3; 1 W; 20 Ohm |
|---|---|

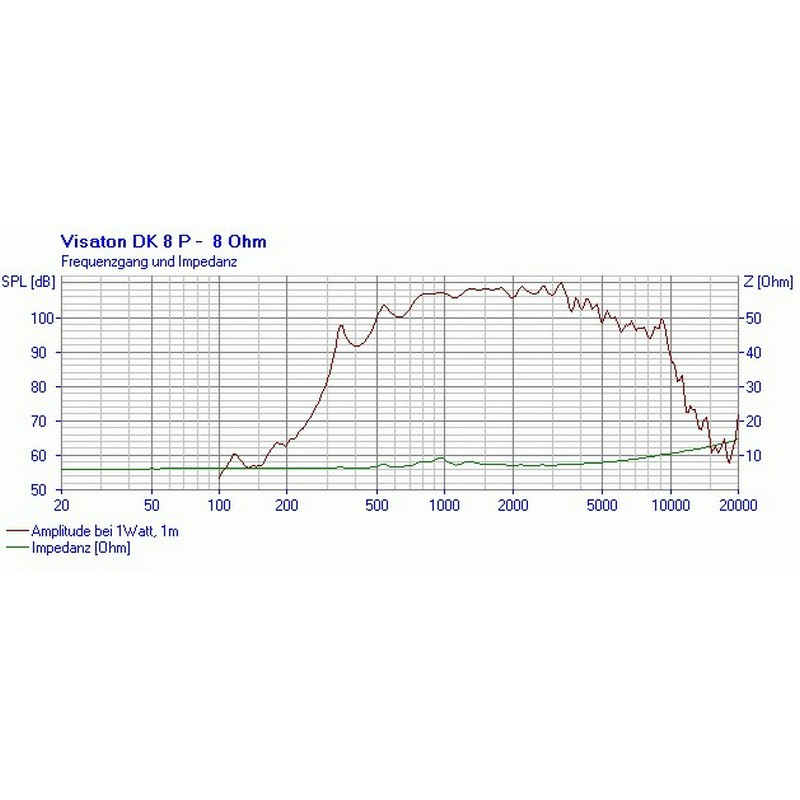

| Sound pressure level | 110 dB (1 W/1 m) @ 2644 Hz |
| Transmission range (-10 dB) | 500–5500 Hz |
| Medium sound pressure level | 107 dB (1 W/1 m) |
| Maximum sound pressure level | 119 dB (15 W/1 m) |

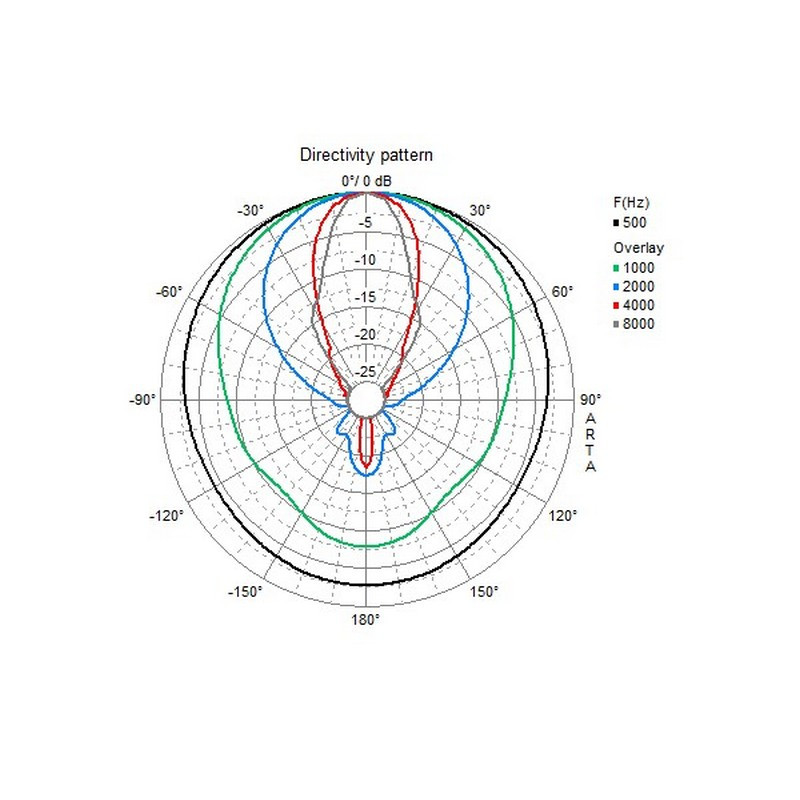

| Beam angle (-6 dB) | 37°/4000 Hz |
| Weight net | 1.8 kg |
| Length of connection cable | 0,6 m |
| Protection class | IP 66 |
| Temperature range | −40 – 80 °C |
| Colour | light grey/light grey similar/similar RAL 7035 |
