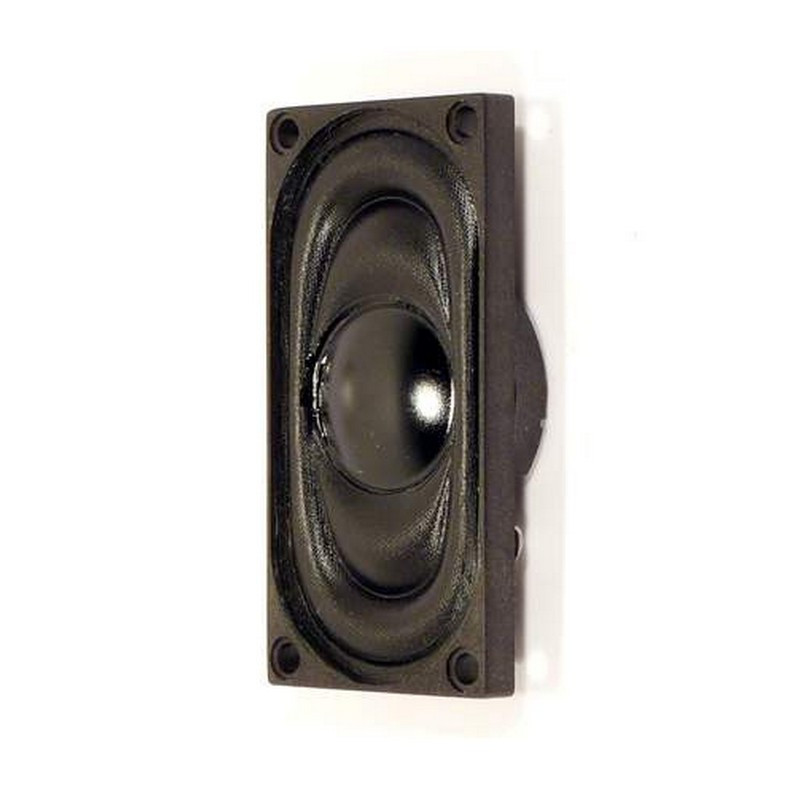

Visaton K 20.40 - 8 Ohm small speaker
2 x 4 cm (0.8" x 1.6") small speaker
Visaton K 20.40 - 8 Ohm small speaker
2 x 4 cm (0.8" x 1.6") small speaker
€5.57
Our previous price
€7.96
Save 30%
Tax included
Shipping excluded
4-0161
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
2 x 4 cm (0.8" x 1.6") small speaker. Universally applicable in all devices where little space is available.
*) IP protection class for front side when installed in a sealed housing
Applications
- voice and signal output in internal and external devices
Characteristics
- Plastic basket
- UV-resistant
Technical data
| Rated load capacity | 1 W |
|---|---|
| Music loading | 2 W |
| Nominal impedance Z | 8 Ohm |

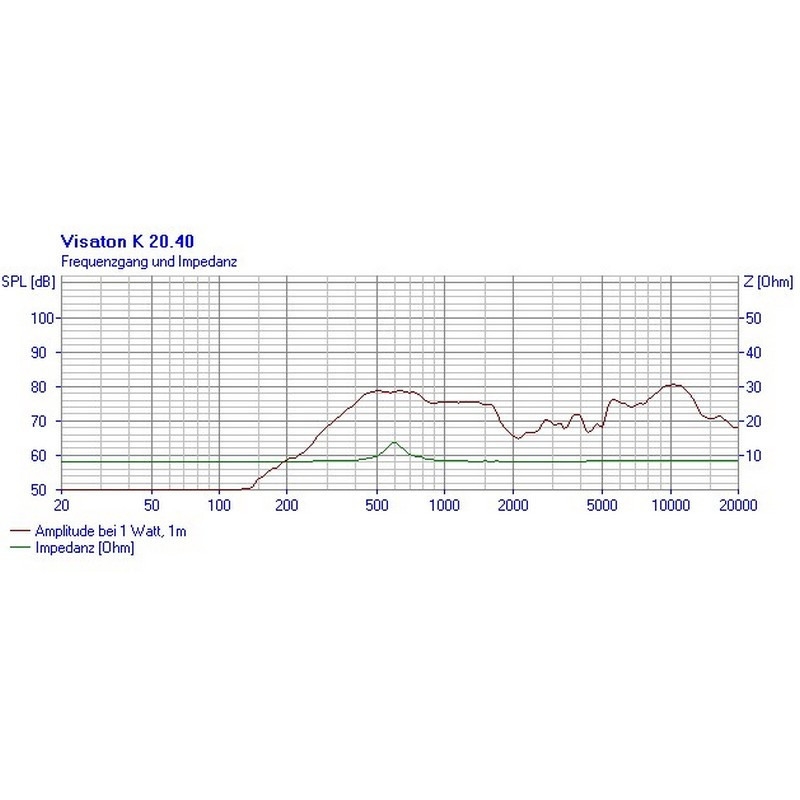

| Transmission range (-10 dB) | 300-20000 Hz |
| Medium sound pressure level | 76 dB (1 W/1 m) |
| Reaction frequency fs | 600 Hz |
| Upper pole plate height | 1 mm |
| Oscillating coil diameter | 12 mm |

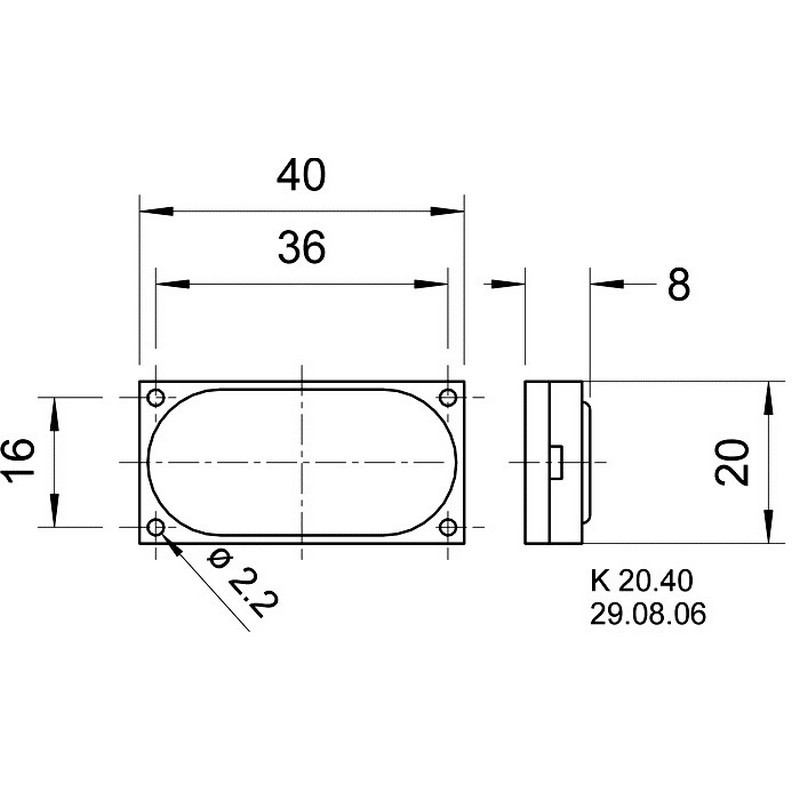

| Sound wall opening | 38 x 18 mm |
| Weight net | 0,007 kg |
| Connections | 2,8 x 0,3 mm (solder lug) |
| Protection class | IP 64 * |
| Temperature range | −25 ... 70 °C |
