Visaton W 170 S - 4 Ohm HiFi tweeter
17 cm (6.5") HiFi tweeter
Visaton W 170 S - 4 Ohm HiFi tweeter
17 cm (6.5") HiFi tweeter
€41.42
Our previous price
€59.17
Save 30%
Tax included
Shipping excluded
4-0105
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
17 cm (6.5") HiFi tweeter with coated paper membrane, strong drive and deep-drawn pole plate.
Special coil and elastic rubber bead for large strokes.
Technical data
| Rated load capacity | 50 W |
|---|---|
| Music loading | 80 W |
| Nominal impedance Z | 4 Ohms |

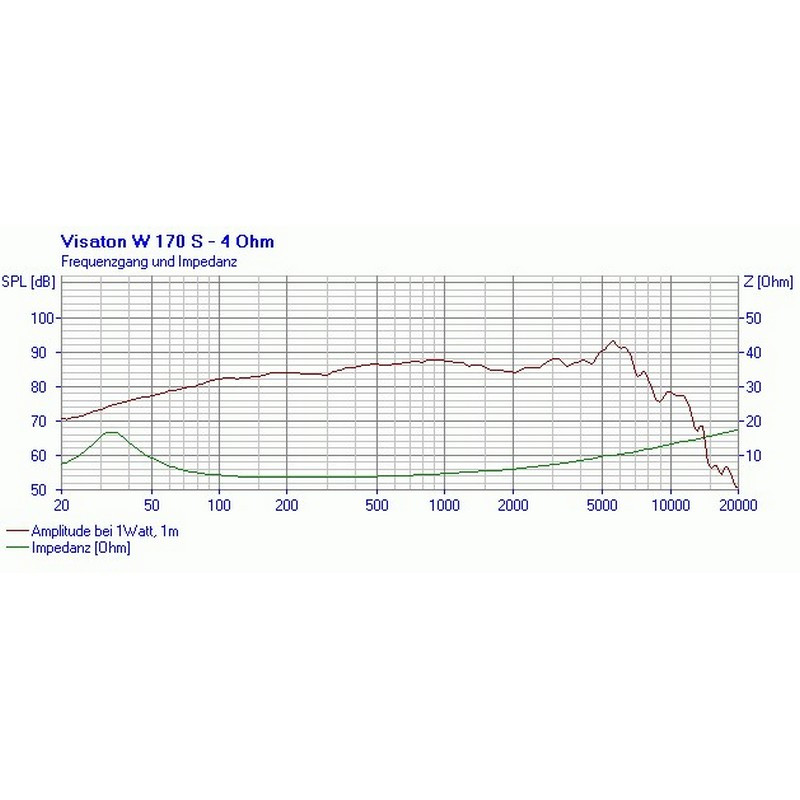

| Transmission range (-10 dB) | fu–8000 Hz |
| (fu: lower limit frequency depending on the housing) | . |
| Medium sound pressure level | 86 dB (1 W/1 m) |

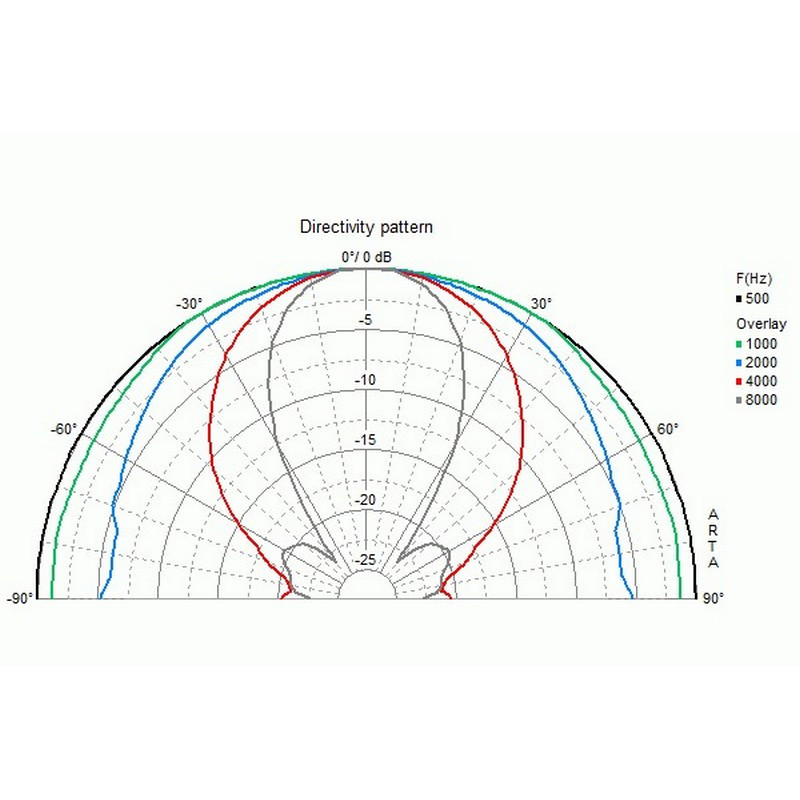

| Beam angle (-6 dB) | 72°/4000 Hz |
| Border deflection | +/−10 mm |
| Reaction frequency fs | 36 Hz |
| Magnetic induction | 1.0 |
| Magnetic flux | 314 μWb |
| Upper pole plate height | 4 mm |
| Oscillating coil diameter | 25 mm |
| Winding height | 12.5 mm |

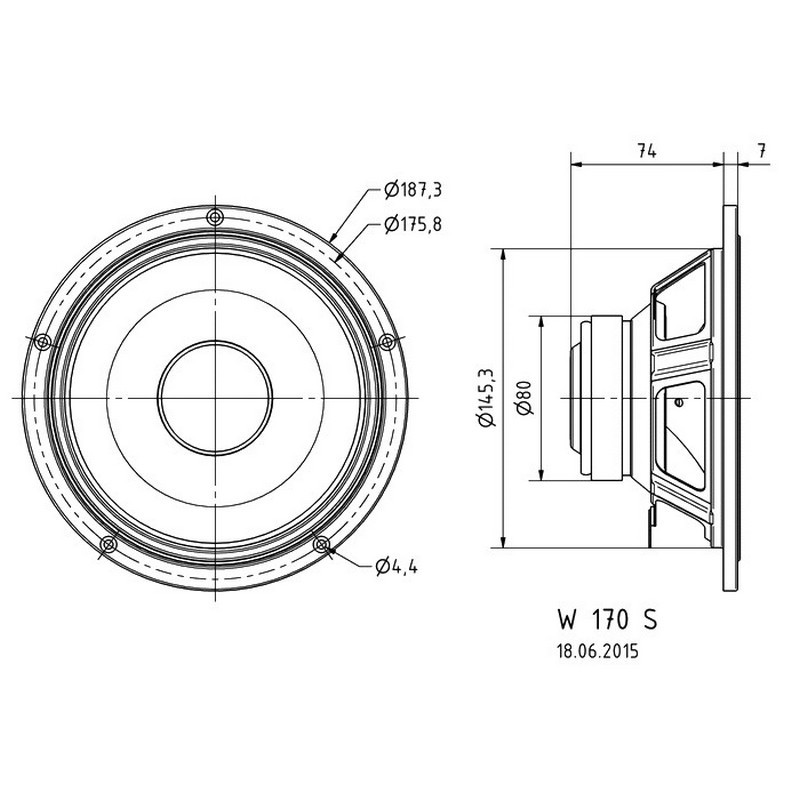

| Sound wall opening | 148 mm |
| Weight net | 1,1 kg |
| DC resistance Rdc | 3,2 Ohm |
| Mechanical Q-factor Qms | 2,16 |
| Electric Q-factor Qes | 0,51 |
| Total Q factor Qts | 0,41 |
| Equivalent air yield volume Vas | 38 |
| Effective membrane surface Sd | 129 cm2 |
| Dynamic moving mass Mms | 12 g |
| Drive factor Bxl | 4.4 Tm |
| Vibration coil inductance L | 0,6 m |
Case recommendation
| Volume/principle | BR-tube | fb | fc)/QTC |
| 20 l/closed | - | - | 61 Hz/0.70 |
| 20 l/bass reflex | BR 19.24 (14 cm long) | 44 Hz | - |
| 30 l/bass reflex | BR 15.34 (12 cm long) | 39 Hz | - |
| 50 l/bass reflex | FR OF 15.34 | 33 Hz | - |
