Visaton TIW 200 XS - 8 Ohm High-End Toner

20 cm (8") High-end tweeter

€166.87
Our previous price €238.39
Save 30%
Tax included Shipping excluded
Subwoofer
4-0100
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

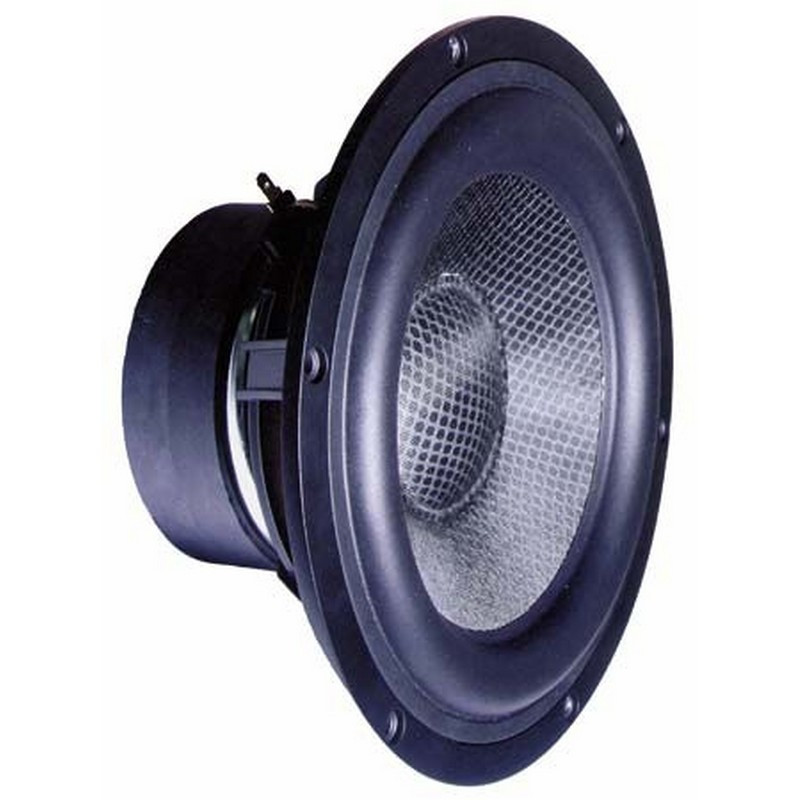

20 cm (8") High-end tweeter especially for small subwoofers.

The extra wide rubber bead, the long coil and the particularly large magnet system allow extreme strokes.

Losses and flow noises are minimized by the multiple ventilation of the oscillating coil (pole bore, bores in the pole plate, openings in the aluminum die casting basket for back ventilation of the centering).

The oscillating coil carrier made of Kapton and the long oscillating coil allow very high loads.

The membrane is a sandwich construction made of glass fiber layers and polyester fabric and thus particularly low in resonance.

These structural details lead to a high level strength and excellent low base reproduction even in small housings.

Case recommendations

Volume/principle BR-tube fb fc)/QTC
20 l/closed - - 52 Hz/0.77
30 l / closed - - 46 Hz/0.68
20 l/bass reflex OJ L 347, 20.12.2013, P 39 Hz -
30 l/bass reflex OJ L 347, 20.12.2013, P 32 Hz -
50 l/bass reflex OF 25.50 31 Hz -

Technical data

Rated load capacity 120 W
Music loading 180 W
Nominal impedance Z 8 Ohm

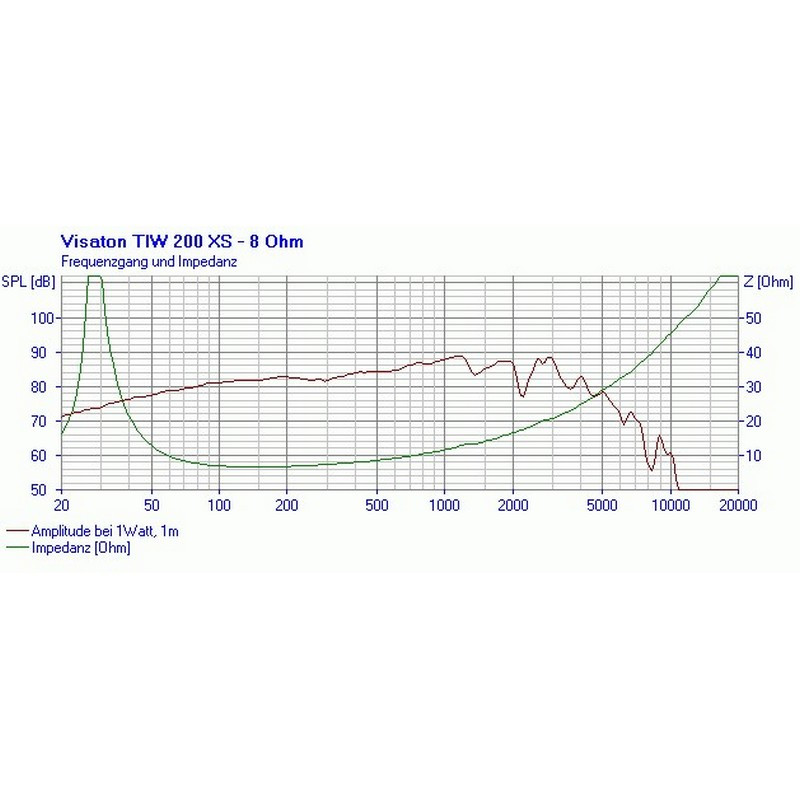

Transmission range (-10 dB) fu–7500 Hz
(fu: lower limit frequency depending on the housing) .
Medium sound pressure level 84 dB (1 W/1 m)

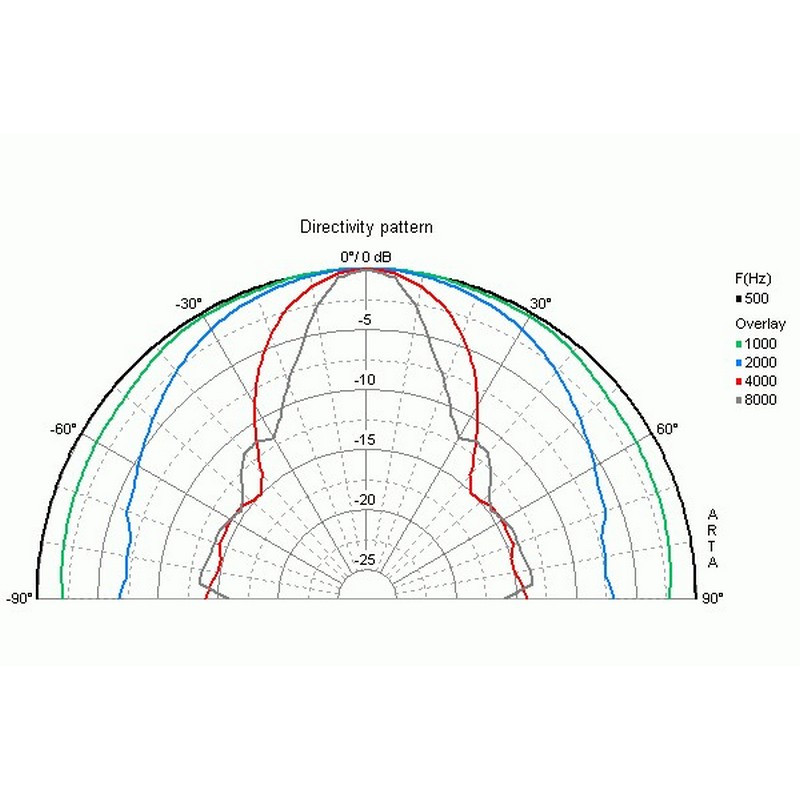

Beam angle (-6 dB) 48°/4000 Hz
Border deflection +/−12.5 mm
Reaction frequency fs 30 Hz
Magnetic induction 1,1 T
Magnetic flux 1050 μWb
Upper pole plate height 8 mm
Oscillating coil diameter 38 mm
Winding height 30 mm

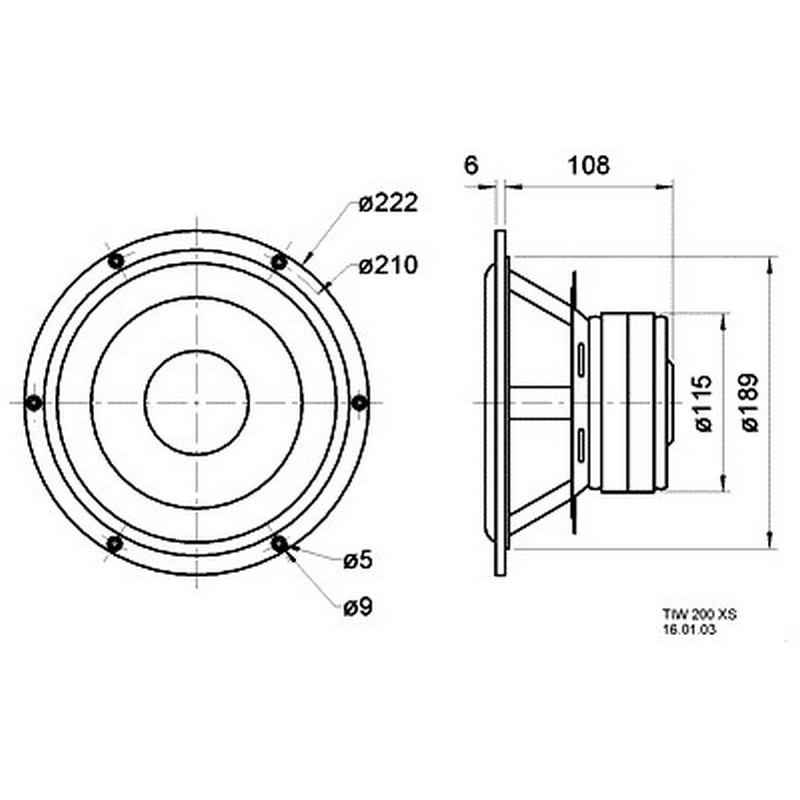

Sound wall opening 190 mm
Weight net 3,5 kg
DC resistance Rdc 6.0 Ohm
Mechanical Q-factor Qms 5,19
Electric Q-factor Qes 0,50
Total Q factor Qts 0,46
Equivalent air yield volume Vas 51.5 l
Effective membrane surface Sd 206 cm2
Dynamic moving mass Mms 33 g
Drive factor Bxl 8,51 Tm
Vibration coil inductance L 1.6 mH
