Visaton AL 200 - 8 Ohm High-End Toner
20 cm (8") High-end tweeter
Visaton AL 200 - 8 Ohm High-End Toner
20 cm (8") High-end tweeter
€187.59
Our previous price
€267.99
Save 30%
Tax included
Shipping excluded
4-0094
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

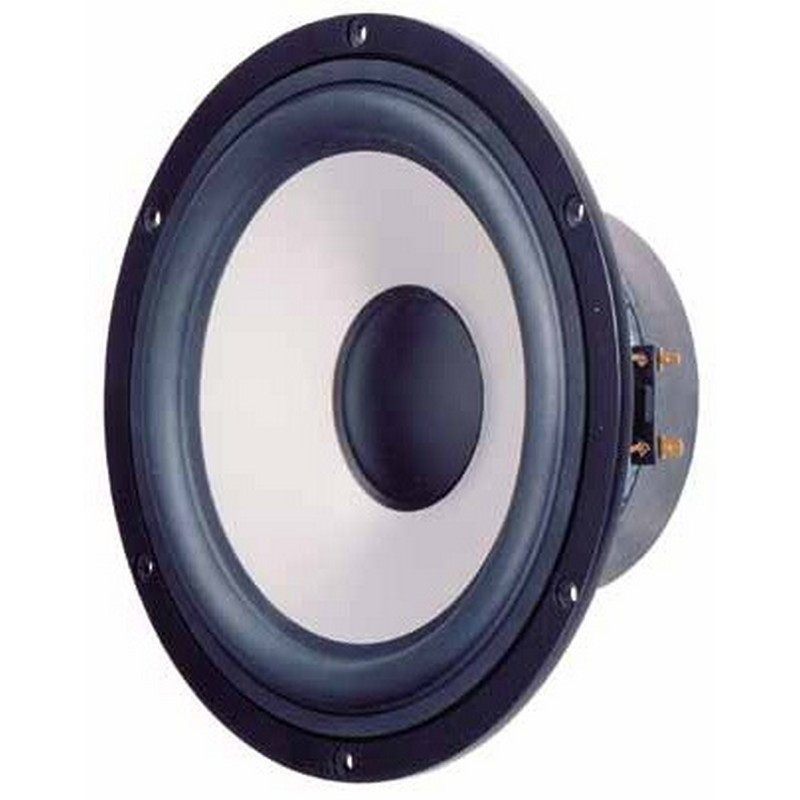

20 cm (8") High-end tweeter with rigid aluminum membrane, stable aluminum die casting basket and elastic rubber beads.
Low mechanical and electrical losses due to pole core ventilation, back-ventilated centering and Kapton coil support.
High pulse dynamics due to light aluminum membrane.
Excellent in 2- and 3-way combinations and as low-medium tone drivers in 4-way high-end systems.
Case recommendations
| Volume/principle | BR-tube | fb |
| 30 l/bass reflex | OF 25.50 | 40 Hz |
| 50 l/bass reflex | OF 25.50 | 31 Hz |
| 70 l/bass reflex | OF 25.50 | 27 Hz |
Technical data
| Rated load capacity | 120 W |
|---|---|
| Music loading | 180 W |
| Nominal impedance Z | 8 Ohm |

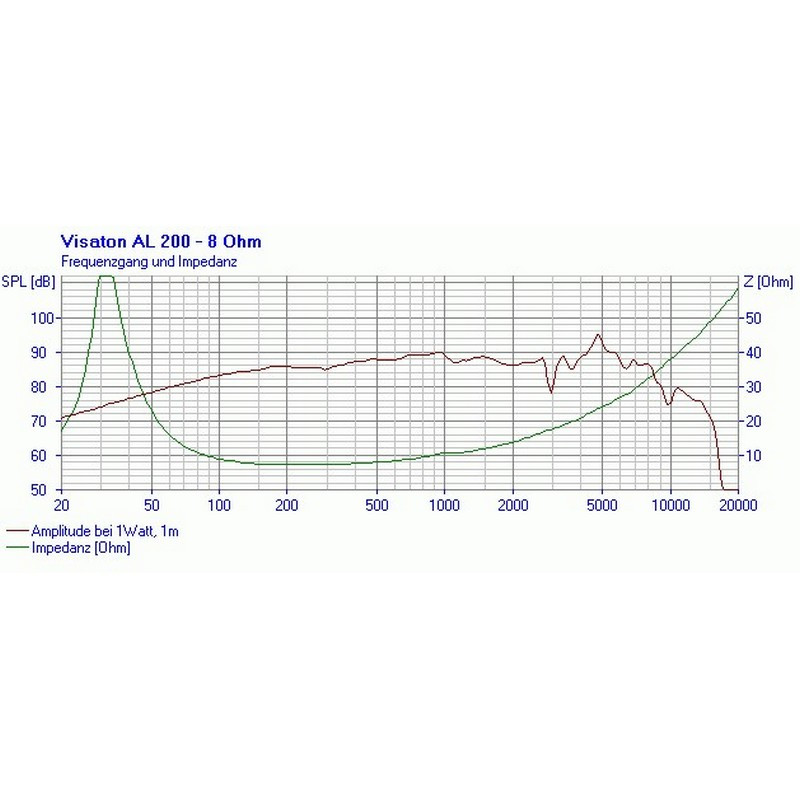

| Transmission range (-10 dB) | fu–9000 Hz |
| (fu: lower limit frequency depending on the housing) | . |
| Medium sound pressure level | 88 dB (1 W/1 m) |

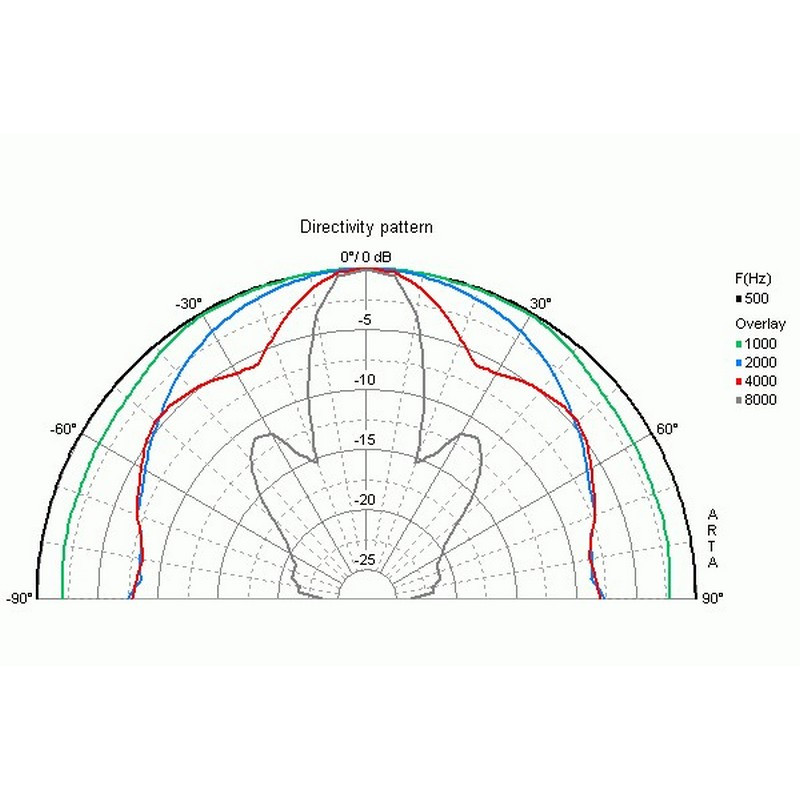

| Beam angle (-6 dB) | 122°/4000 Hz |
| Border deflection | +/−10 mm |
| Reaction frequency fs | 32 Hz |
| Magnetic induction | 1.3 T |
| Magnetic flux | 930 μWb |
| Upper pole plate height | 6 mm |
| Oscillating coil diameter | 38 mm |
| Winding height | 20 mm |

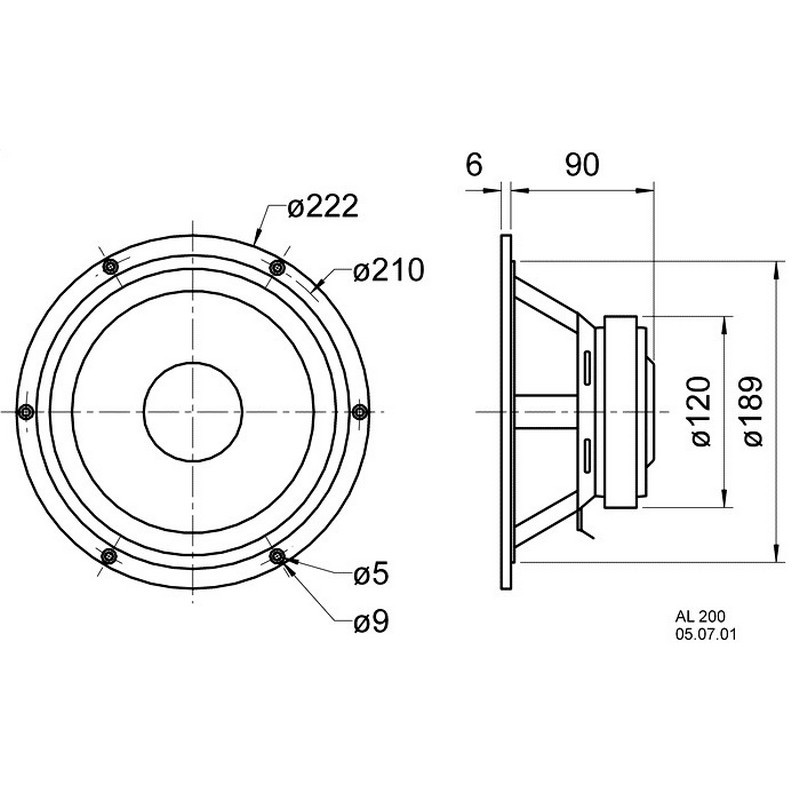

| Sound wall opening | 190 mm |
| Weight net | 2,5 kg |
| DC resistance Rdc | 6.6 Ohm |
| Mechanical Q-factor Qms | 3,73 |
| Electric Q-factor Qes | 0,39 |
| Total Q factor Qts | 0,35 |
| Equivalent air yield volume Vas | 77 l |
| Effective membrane surface Sd | 216 cm2 |
| Dynamic moving mass Mms | 21 g |
| Drive factor Bxl | 8,8 Tm |
| Vibration coil inductance L | 1.2 mH |
