Visaton GF 200 - 2 x 4 Ohm High-End Toner

20 cm (8") High-end tweeter

€148.67
Our previous price €212.39
Save 30%
Tax included Shipping excluded
Subwoofer
4-0095
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

20 cm (8") High-end tweeter with black glass fiber membrane, stable aluminum die casting basket and elastic rubber bead.

Very flexible possibilities of use by 2 x 4-ohm double-oscillator coil, a high-quality 8-ohm chassis being produced by series connection.

Together with the deep-drawn pole plate, the rear-ventilated centering, the Kapton oscillating coil carrier and the pole core ventilation, the long-stroke plumage guarantees great strokes and absolute level strength.

Connection options:

- (1) an oscillating coil open
- (2) both coils in series
- (3) both oscillating coils parallel

Case recommendations

Volume/principle BR-tube fb
30 l/bass reflex OF 25.50 40 Hz
50 l/bass reflex OF 25.50 31 Hz
70 l/bass reflex OF 25.50 27 Hz

Technical data

Rated load capacity 120 W
Music loading 180 W
Nominal impedance Z (1) 4 Ohm (2) 8 Ohm (3) 2 Ohm

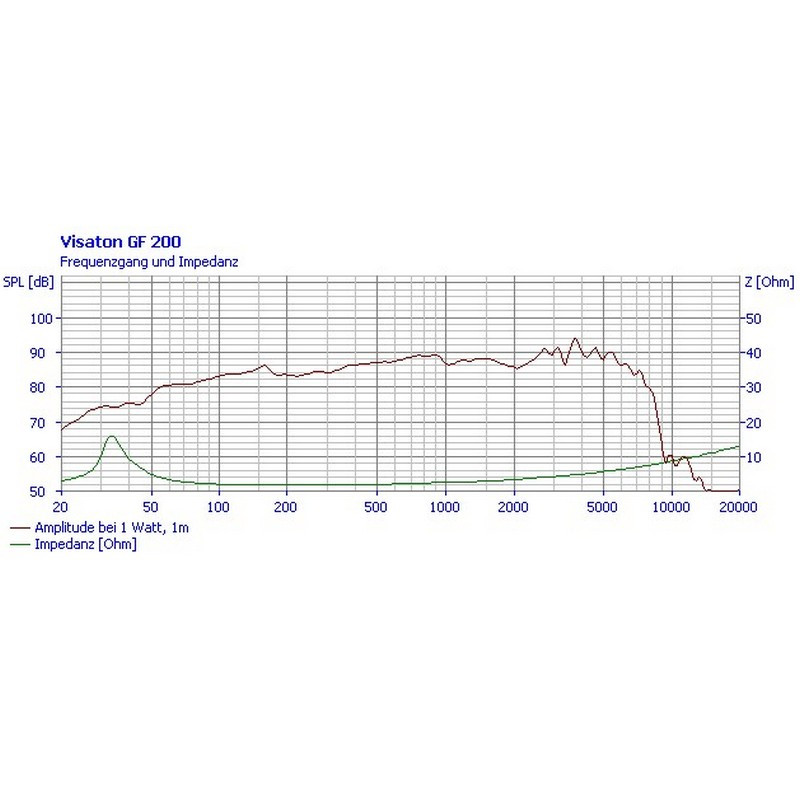

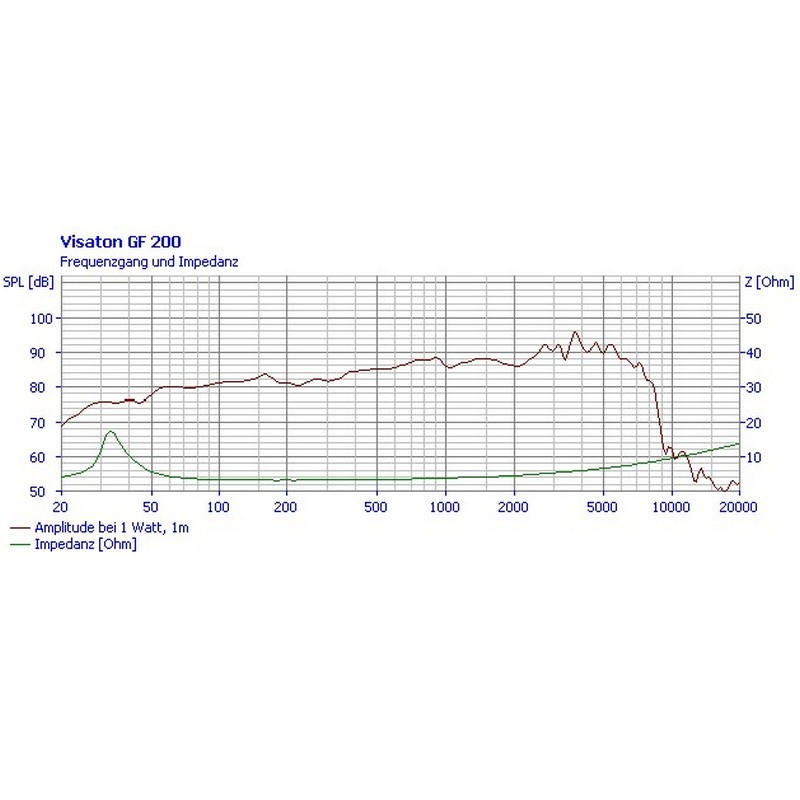

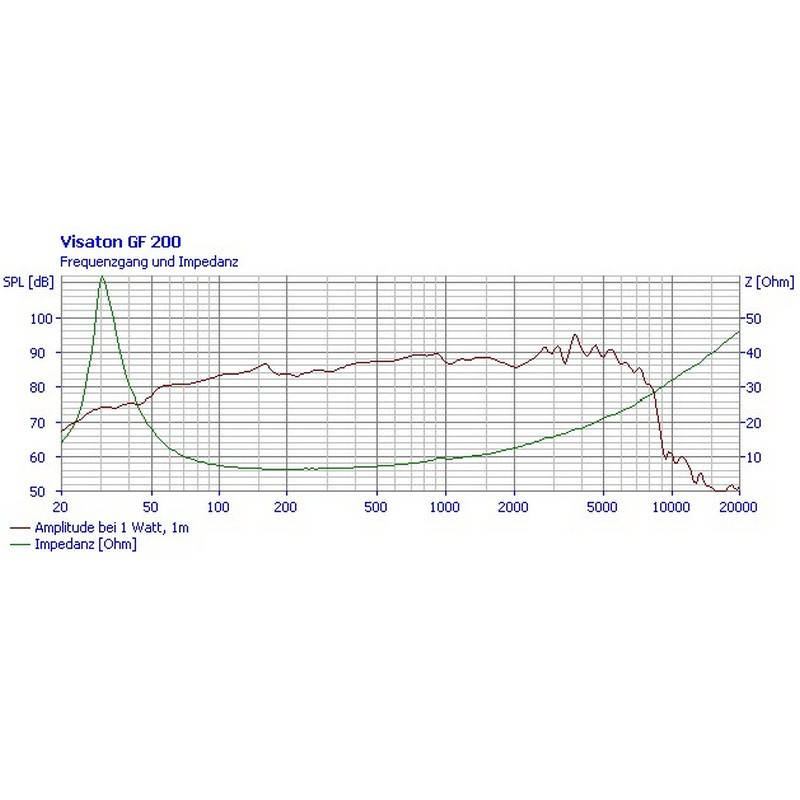

Transmission range (-10 dB) fu–8000 Hz
(fu: lower limit frequency depending on the housing) .
Medium sound pressure level

(1) 85 dB (1 W/1 m)

(2) 88 dB (1 W/1 m)

(3) 88 dB (1 W/1 m)

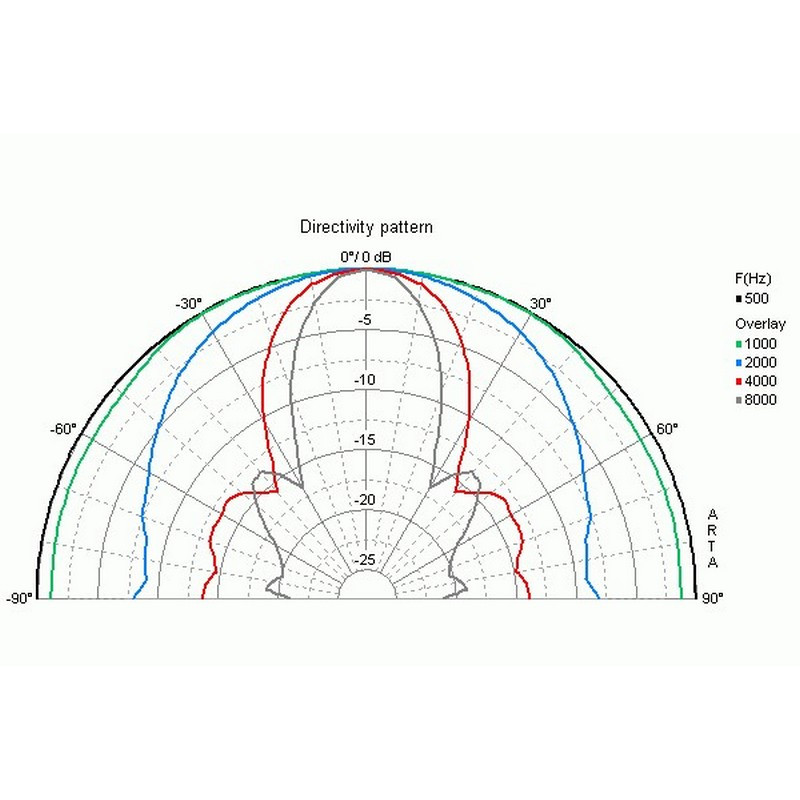

Beam angle (-6 dB) 46°/4000 Hz
Border deflection +/−10 mm
Reaction frequency fs (1) 34 Hz (2) 30 Hz (3) 35 Hz
Magnetic induction 1.3 T
Magnetic flux 930 μWb
Upper pole plate height 6 mm
Oscillating coil diameter 38 mm
Winding height 18 mm

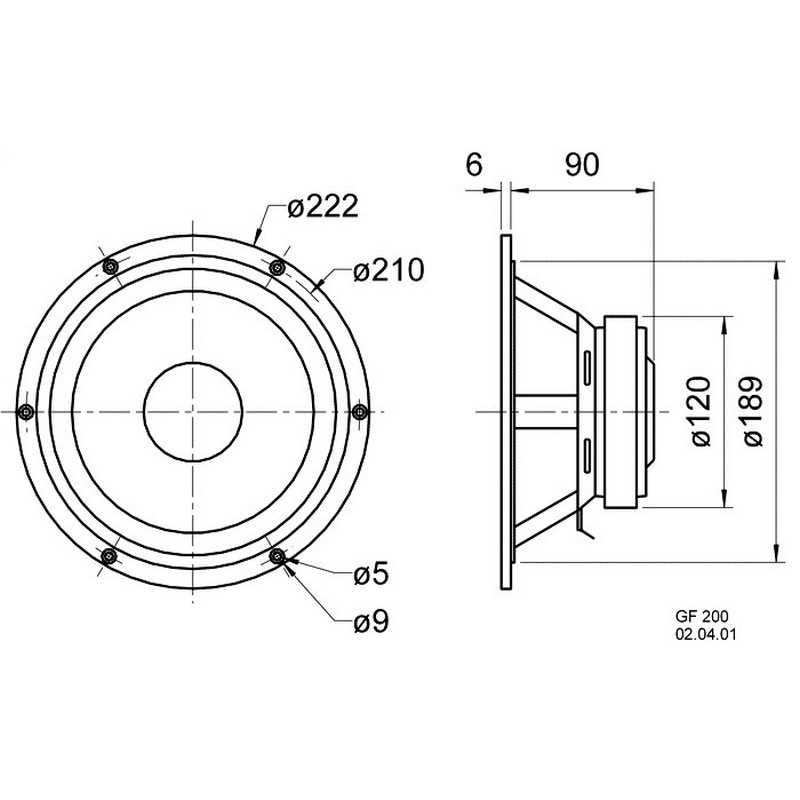

Sound wall opening 190 mm
Weight net 2,5 kg
DC resistance Rdc (1) 2,9 Ohm (2) 5,8 Ohm (3) 1,4 Ohm
Mechanical Q-factor Qms (1) 4,51 (2) 4,12 (3) 4,33
Electric Q-factor Qes (1) 0.93 (2) 0.37 (3) 0.44
Total Q factor Qts (1) 0,77 (2) 0,34 (3) 0,39
Equivalent air yield volume Vas (1) 62 l (2) 68 l (3) 57 l
Effective membrane surface Sd 214 cm2
Dynamic moving mass Mms 25 g
Drive factor Bxl (1) 4.6 Tm (2) 9.2 Tm (3) 4.6 Tm
Vibration coil inductance L (1) 0.4 mH (2) 1.1 mH (3) 0.3 mH
