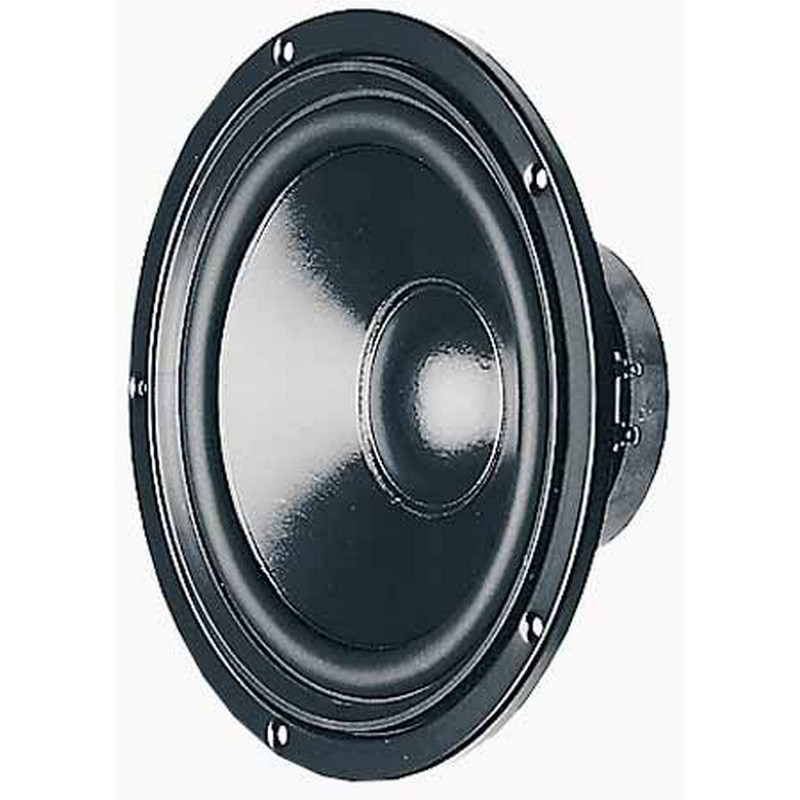

Visaton W 200 S - 8 Ohm HiFi tweeter

20 cm (8") HiFi tweeter

€60.40
Our previous price €86.29
Save 30%
Tax included Shipping excluded
Subwoofer
4-0110
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

20 cm (8") HiFi tweeter with strong drive, deep-drawn pole plate and 35mm swing coil for high load capacity.

Elastic rubber bead and coated paper membrane.

Case recommendations:
Volume/principle BR-tube fb fc)/QTC
15 l  -  - 72 Hz/0.75
20 l/bass reflex BR 19.24 (14 cm long) 45 Hz  -
30 l/bass reflex BR 19.24 (11 cm long) 39 Hz  -
50 l/bass reflex BR 15.34 (13 cm long) 33 Hz  -

Technical data

Rated load capacity 75 W
Music loading 115 W
Nominal impedance Z 8 Ohm

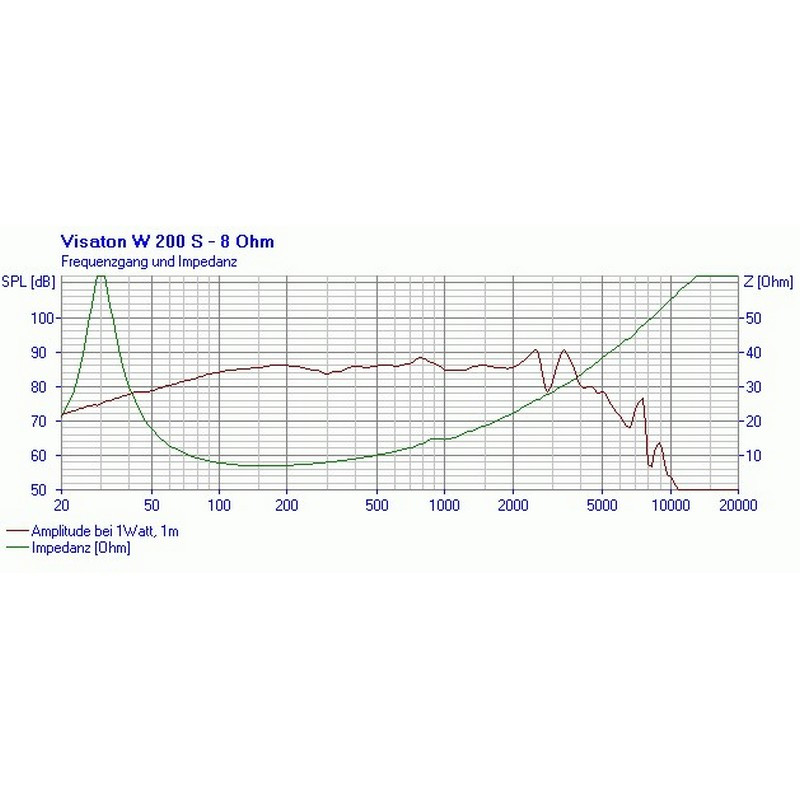

Transmission range (-10 dB) fu–6000 Hz
(fu: lower limit frequency depending on the housing) .
Medium sound pressure level 88 dB (1 W/1 m)

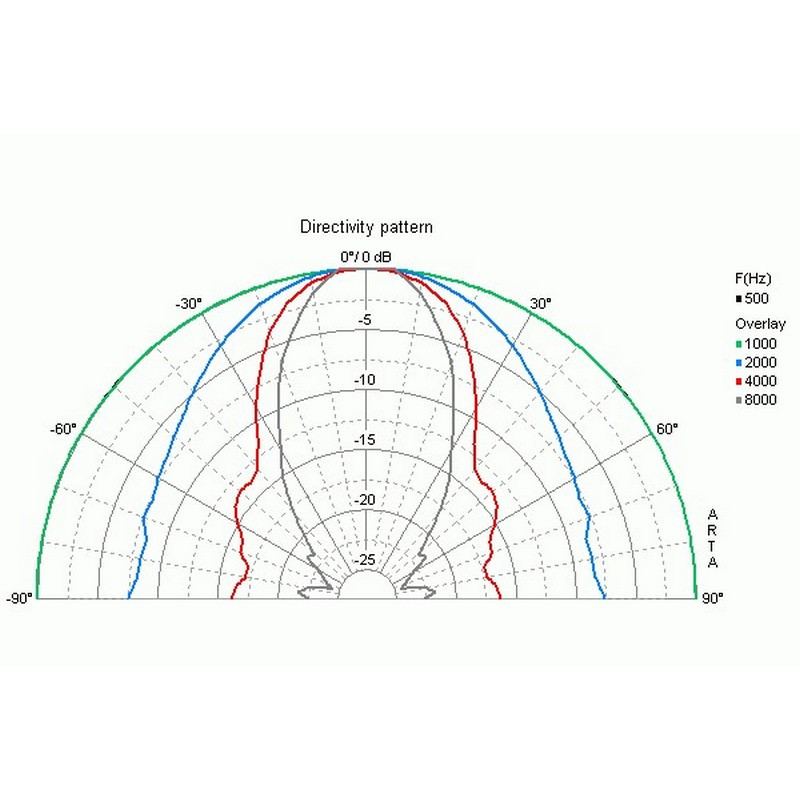

Beam angle (-6 dB) 48°/4000 Hz
Border deflection +/−10 mm
Reaction frequency fs 30 Hz
Magnetic induction 1,1 T
Magnetic flux 600 μWb
Upper pole plate height 5 mm
Oscillating coil diameter 35 mm
Winding height 12 mm

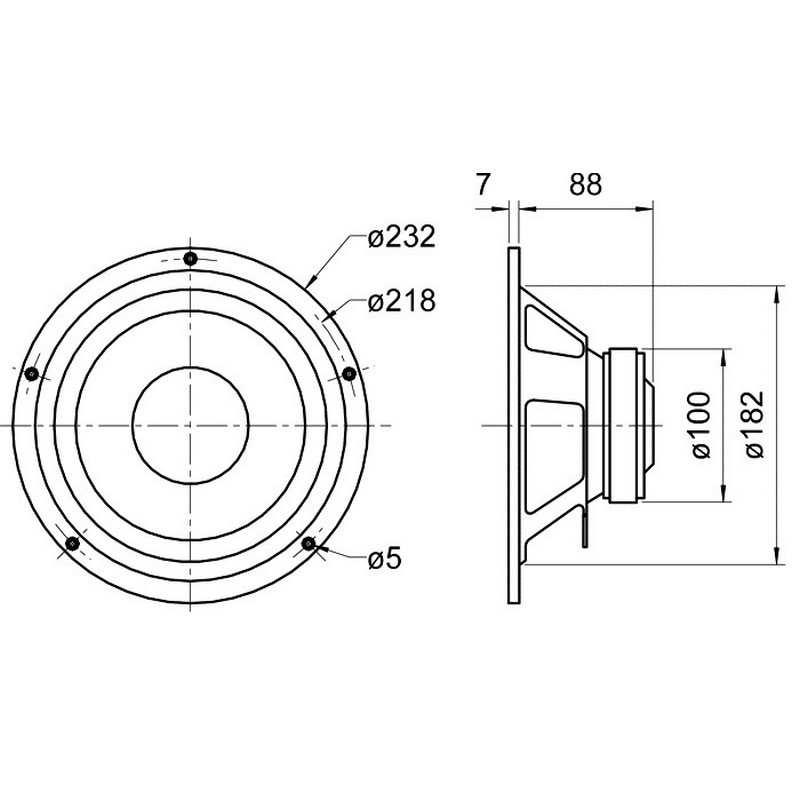

Sound wall opening 184 mm
Weight net 1,5 %
DC resistance Rdc 6.0 Ohm
Mechanical Q-factor Qms 3,59
Electric Q-factor Qes 0,36
Total Q factor Qts 0,33
Equivalent air yield volume Vas 70 l
Effective membrane surface Sd 214 cm2
Dynamic moving mass Mms 26 g
Drive factor Bxl 9.0 Tm
Vibration coil inductance L 2,2 mH
4-0110
