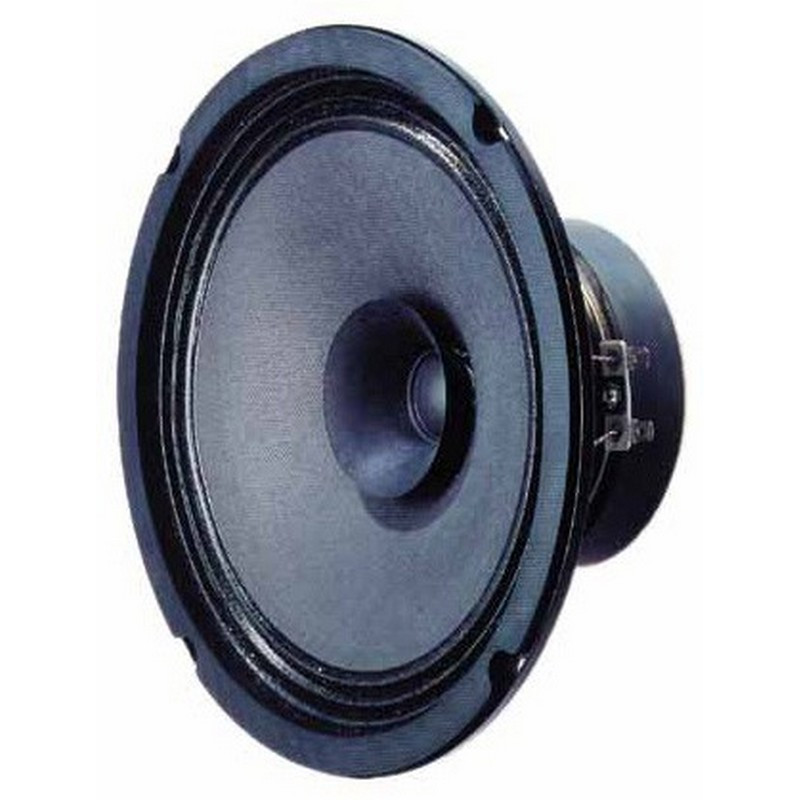

Visaton BG 20 - 8 Ohm broadband speakers
20 cm (8") broadband speakers with high-tone cone
Visaton BG 20 - 8 Ohm broadband speakers
20 cm (8") broadband speakers with high-tone cone
€37.54
Our previous price
€53.63
Save 30%
Tax included
Shipping excluded
4-0007
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
20 cm (8") broadband speakers with high-tone cone. High efficiency.
Suitable as wide bands for small vocal and guitar monitors or as medium tone for PA systems and music boxes.
Applications
- medium tone in PA systems and music boxes
- Voice and guitar monitors
- broadband loudspeaker for electronic organs and keyboards
Case recommendations
width=‘437’>| Volume/principle | BR-tube | fb | fc)/QTC |
|---|---|---|---|
| 30 l / closed | - | - | 82 Hz/0.96 |
| 30 l/bass reflex | FR OF 15.34 | 42 Hz | - |
| 50 l/bass reflex | BR 15.34 (7 cm long) | 42 Hz | - |
Technical data
| Rated load capacity | 40 W |
|---|---|
| Music loading | 70 W |
| Nominal impedance Z | 8 Ohm |

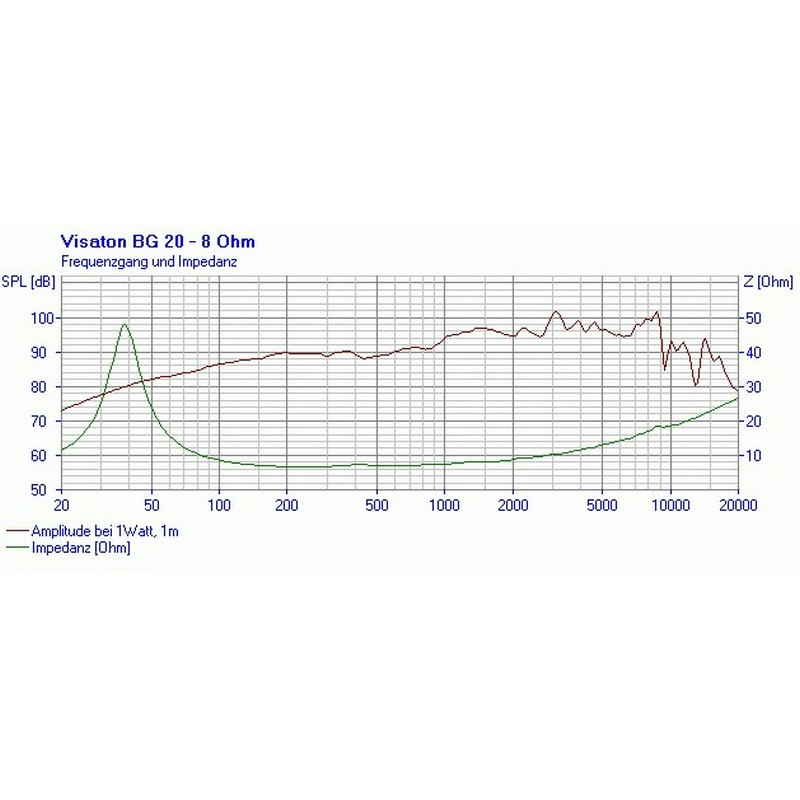

| Transmission range (-10 dB) | fu–18000 Hz |
| (fu: lower limit frequency depending on the housing) | . |
| Medium sound pressure level | 92 dB (1 W/1 m) |

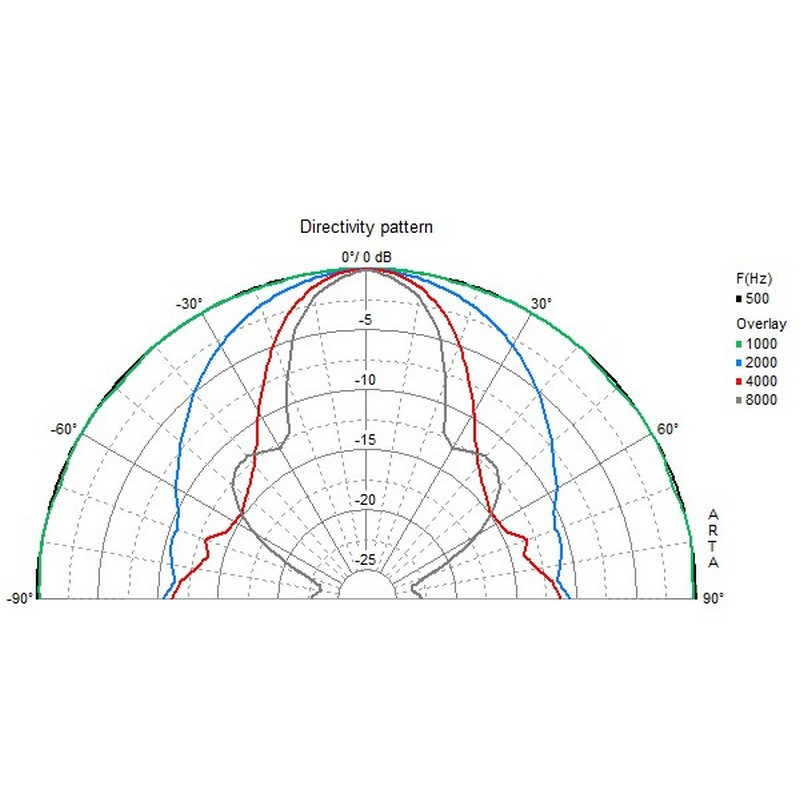

| Beam angle (-6 dB) | 45°/4000 Hz |
| Border deflection | +/-4 mm |
| Reaction frequency fs | 38 Hz |
| Magnetic induction | 1,2 T |
| Magnetic flux | 380 μWb |
| Upper pole plate height | 4 mm |
| Oscillating coil diameter | 25 mm |
| Winding height | 8 mm |

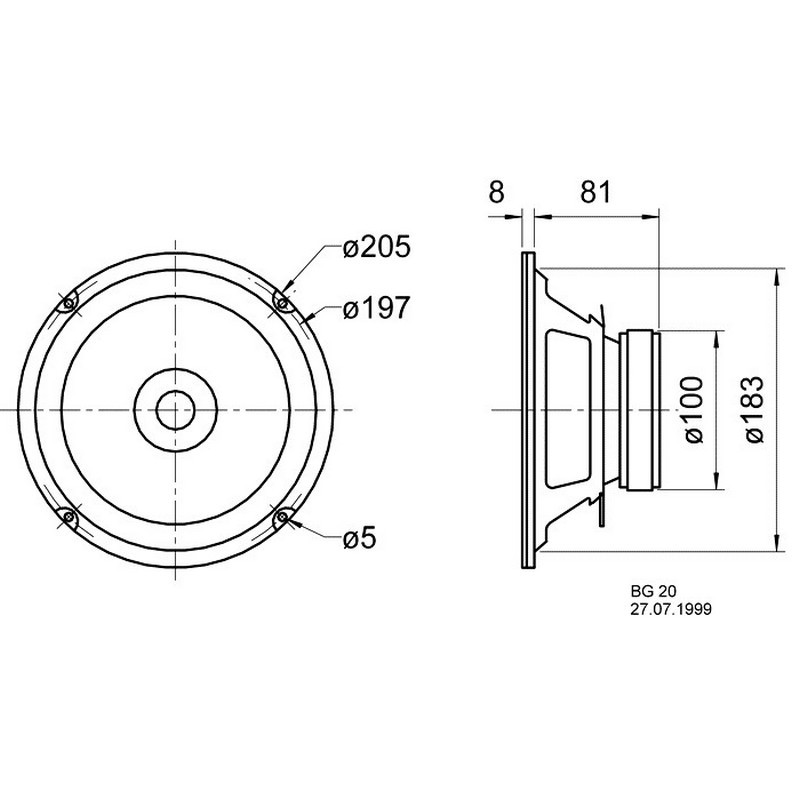

| Sound wall opening | 184 mm |
| Weight net | 1,3 kg |
| DC resistance Rdc | 6.2 Ohm |
| Mechanical Q-factor Qms | 3,47 |
| Electric Q-factor Qes | 0,51 |
| Total Q factor Qts | 0,44 |
| Equivalent air yield volume Vas | 110 l |
| Effective membrane surface Sd | 214 cm2 |
| Dynamic moving mass Mms | 10 g |
| Drive factor Bxl | 6.1 Tm |
| Vibration coil inductance L | 0,8 mH |
| Temperature range | −25 ... 70 °C |
