Visaton FRS 5 XTS - 8 Ohm broadband speakers
5 cm (2") broadband loudspeaker
Visaton FRS 5 XTS - 8 Ohm broadband speakers
5 cm (2") broadband loudspeaker
€12.99
Our previous price
€18.55
Save 30%
Tax included
Shipping excluded
4-0045
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

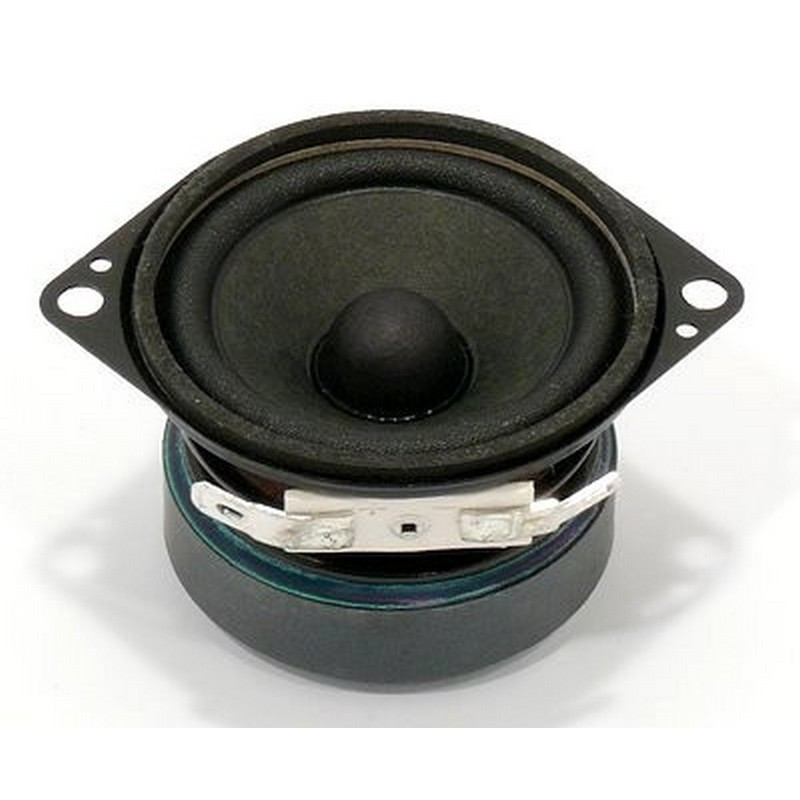

5 cm (2") broadband loudspeaker with black basket and two fastening straps.
Due to the low resonant frequency, the transmission range begins at 120 Hz. Suitable as broadband loudspeakers or midrange loudspeakers for hi-fi and sound systems as well as for ELA systems in 100-V technology.
Due to the small dimensions also very well suited as control speakers in electronic devices.
Equipped with flat plugs 4,8 x 0,8 mm (+) and 2,8 x 0,8 mm (-), 30° angled and a foam seal.
Applications
- Very narrow ELA lines
- Control loudspeaker for electronic devices
- Model construction
- Electronic musical instruments
Â
Characteristics
- Moisture-impregnated membrane
- Metal design
Â
Technical data
| Rated load capacity | 5 W |
|---|---|
| Music loading | 8 W |
| Nominal impedance Z | 8 Ohm |

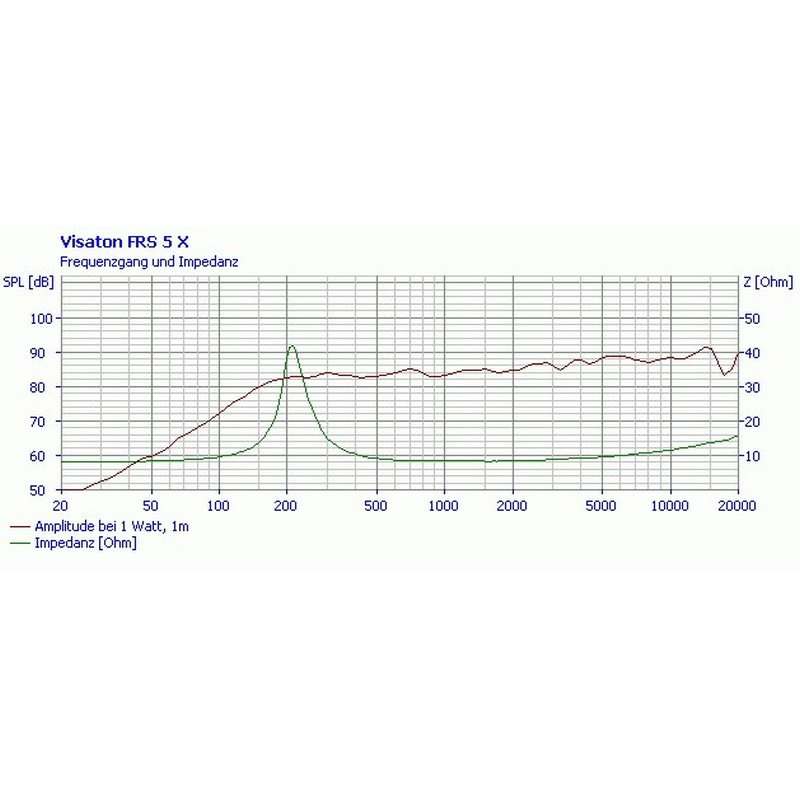

| Transmission range (-10 dB) | 120–20000 Hz |
| Medium sound pressure level | 86 dB (1 W/1 m) |

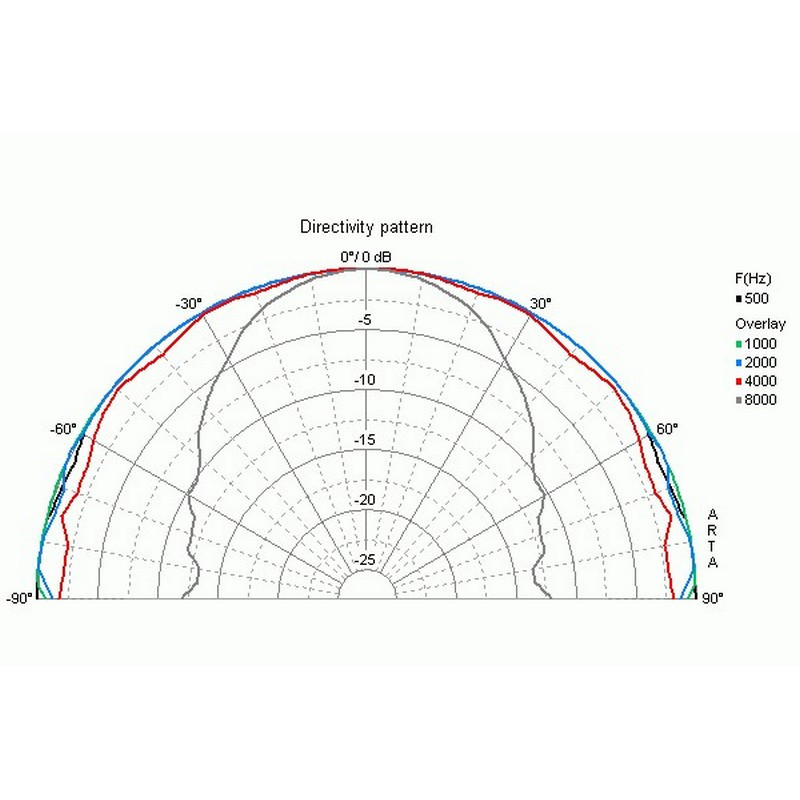

| Beam angle (-6 dB) | 180°/4000 Hz |
| Reaction frequency fs | 190 Hz |
| Oscillating coil diameter | 14 mm |
| Sound wall opening | 46 mm |
| Weight net | 0,14 kg |
| DC resistance Rdc | 7.7 Ohm |
| Mechanical Q-factor Qms | 3,49 |
| Electric Q-factor Qes | 0,88 |
| Total Q factor Qts | 0,7 |
| Equivalent air yield volume Vas | 0,23 l |
| Effective membrane surface Sd | 12.5 cm2 |
| Dynamic moving mass Mms | 0,7 g |
| Drive factor Bxl | 2,67 Tm |
| Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-) |
| Temperature range | −25 ... 70 °C |
