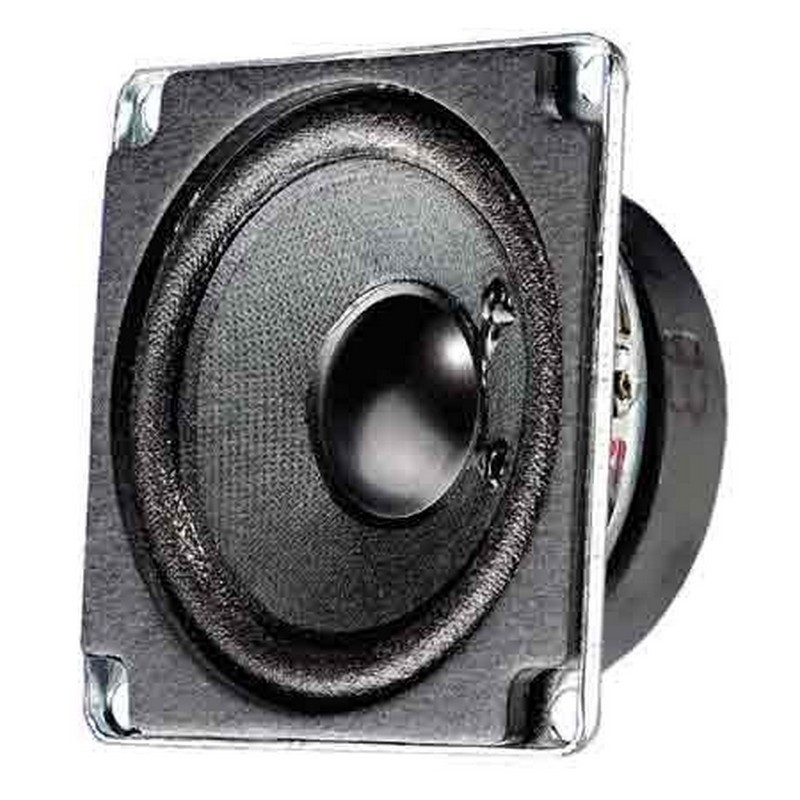

Visaton FRWS 5 - 8 Ohm broadband speakers
5 cm (2") broadband loudspeaker
Visaton FRWS 5 - 8 Ohm broadband speakers
5 cm (2") broadband loudspeaker
€10.89
Our previous price
€15.55
Save 30%
Tax included
Shipping excluded
4-0056
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
5 cm (2") broadband loudspeaker with square basket, soft bead and light special membrane.

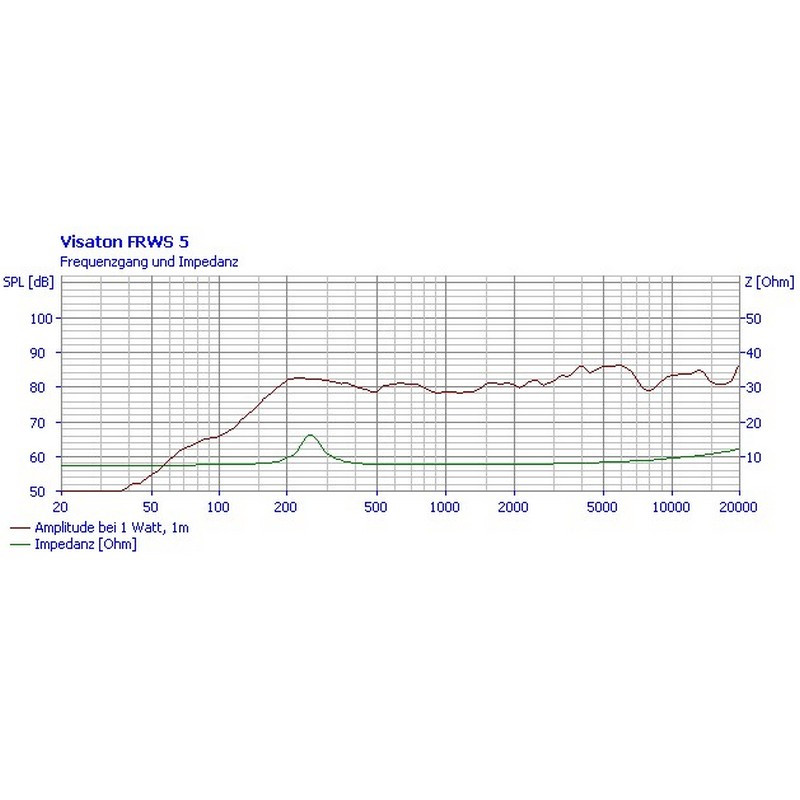

Balanced frequency response from 250 Hz and splashy high tone reproduction with good round beam behavior.
Suitable as a midrange driver in speaker lines for hi-fi and sound systems as well as for ELA systems in 100-V technology.
Due to the small dimensions also very well suited for model construction and as a control loudspeaker in electronic devices.
Applications
- Very narrow ELA lines
- Control loudspeaker for electronic devices
- Model construction
Characteristics
- Moisture-impregnated membrane
- Metal design
Technical data
| Rated load capacity | 4 W |
|---|---|
| Music loading | 10 W |
| Nominal impedance Z | 8 Ohm |
| Transmission range (-10 dB) | 150–20000 Hz |
| Medium sound pressure level | 84 dB (1 W/1 m) |

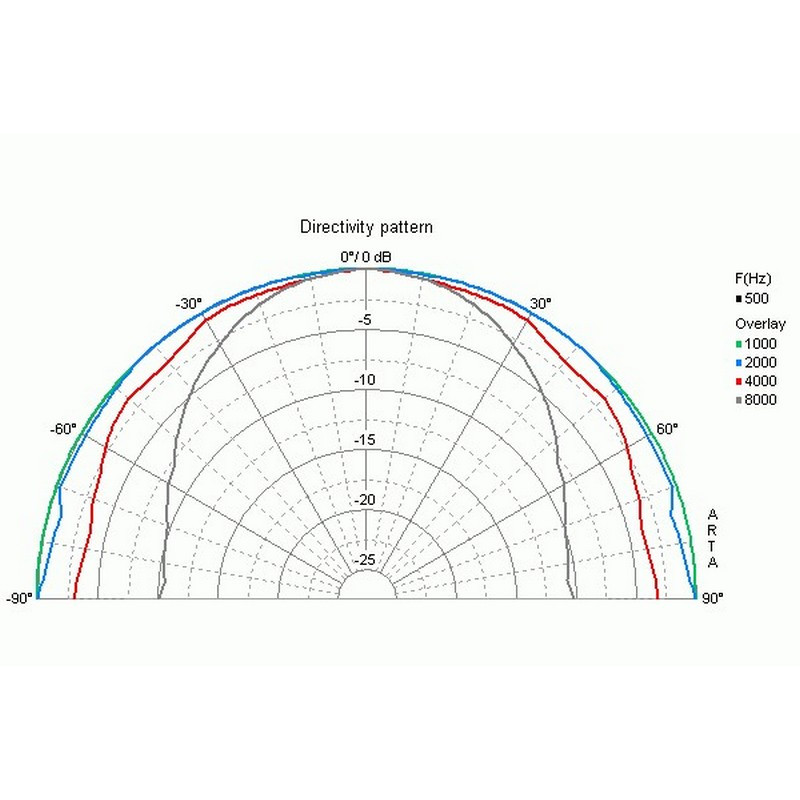

| Beam angle (-6 dB) | 180°/4000 Hz |
| Border deflection | +/-2 mm |
| Reaction frequency fs | 250 Hz |
| Magnetic induction | 0,75 TONNES |
| Magnetic flux | 65 μWb |
| Upper pole plate height | 2 mm |
| Oscillating coil diameter | 14 mm |
| Winding height | 2.7 mm |
| Sound wall opening | 45 mm |
| Weight net | 0,1 kg |
| DC resistance Rdc | 6.8 Ohm |
| Mechanical Q-factor Qms | 3,31 |
| Electric Q-factor Qes | 3,22 |
| Total Q factor Qts | 1,63 |
| Equivalent air yield volume Vas | 0,1 l |
| Effective membrane surface Sd | 12 cm2 |
| Dynamic moving mass Mms | 0,5 g |
| Drive factor Bxl | 1,4 Tm |
| Vibration coil inductance L | 0,1 mH |
| Temperature range | −25 ... 70 °C |
