Visaton TIW 250 XS - 8 Ohm Visaton TIW 250 XS - 8 Ohm Visaton TIW 250 XS - 8 Ohm Visaton TIW 250 XS - 8 Ohm
Visaton TIW 250 XS - 8 Ohm
Visaton TIW 250 XS - 8 Ohm
Visaton TIW 250 XS - 8 Ohm
Visaton TIW 250 XS - 8 Ohm

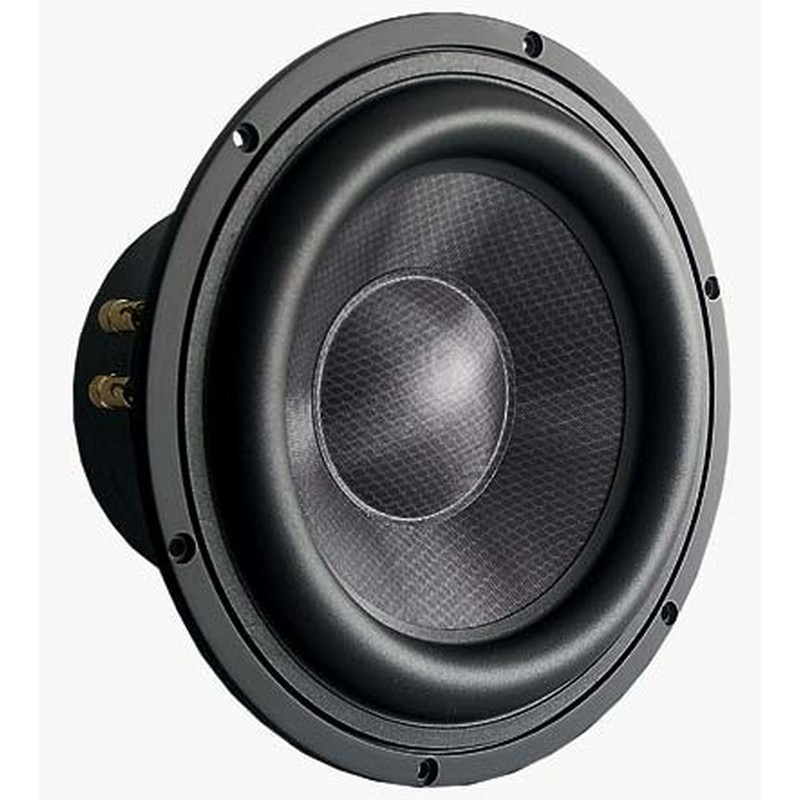

Visaton TIW 250 XS - 8 Ohm High-End Toner

25 cm (10") High-end tweeter

€284.12
Our previous price €405.89
Save 30%
Tax included Shipping excluded
Subwoofer
4-0101
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

25 cm (10") High-end tweeter.

The extra wide rubber bead, the long coil and the particularly large magnet system allow extreme strokes.

Losses and flow noises are minimized by the multiple ventilation of the oscillating coil (pole bore, bores in the pole plate, openings in the aluminum die casting basket for back ventilation of the centering).

The oscillating coil carrier made of Kapton and the long oscillating coil allow very high loads.

The membrane is a sandwich construction made of glass fiber layers and polyester fabric and thus particularly low in resonance.

These structural details lead to a high level strength and excellent low base reproduction.

Case recommendations

Volume/principle BR-tube fb fc)/QTC
30 l / closed - - 59 Hz/0.59
50 l/closed - - 50 Hz/0.5
70 l/c - - 46 Hz/0.46
30 l/bass reflex BR 15.34 (13 cm long) 42 Hz -
50 l/bass reflex BR 15.34 (12 cm long) 36 Hz -
70 l/bass reflex BR 15.34 (9 cm long) 32 Hz -

Technical data

Rated load capacity 200 W
Music loading 300 W
Nominal impedance Z 8 Ohm

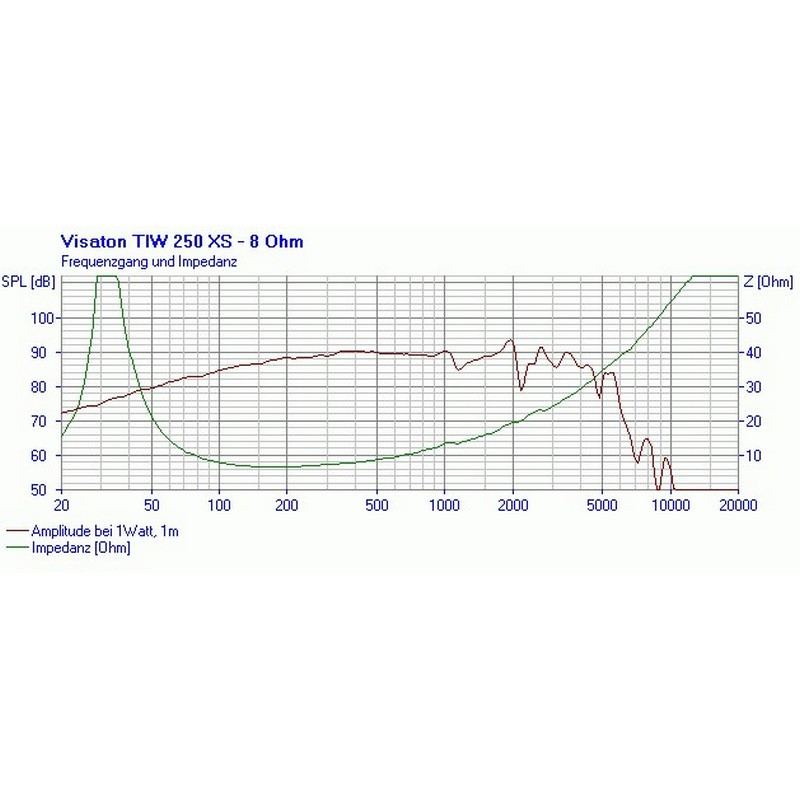

Transmission range (-10 dB) fu–3000 Hz
(fu: lower limit frequency depending on the housing) .
Medium sound pressure level 89 dB (1 W/1 m)
Border deflection +/-14 mm
Reaction frequency fs 33 Hz
Magnetic induction 1.3 T
Magnetic flux 1600 μWb
Upper pole plate height 8 mm
Oscillating coil diameter 50 mm
Winding height 25 mm

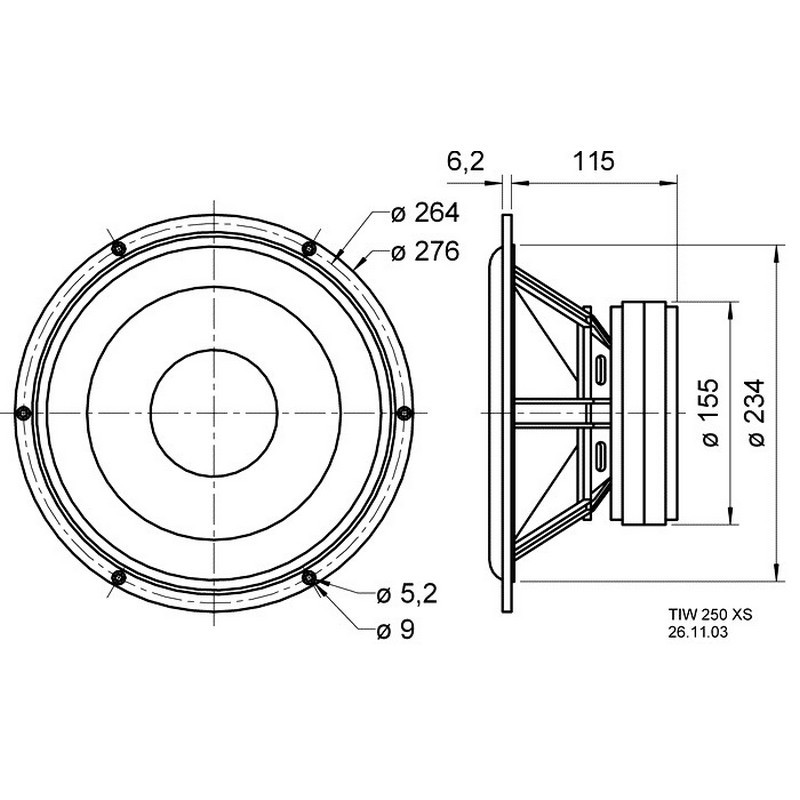

Sound wall opening 235 mm
Weight net 5.3 kg
DC resistance Rdc 5.6 Ohm
Mechanical Q-factor Qms 5,21
Electric Q-factor Qes 0,35
Total Q factor Qts 0,33
Equivalent air yield volume Vas 66
Effective membrane surface Sd 314 cm2
Dynamic moving mass Mms 49 g
Drive factor Bxl 13 Tm
Vibration coil inductance L 1,7 mH
