Visaton KT 100 V - 4 Ohm bass driver

10 cm (4") tweeter

€25.38
Our previous price €36.26
Save 30%
Tax included Shipping excluded
Subwoofer
4-0096
2 Items
Quantity
Wishlist
Compare
Last items in stock
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

10 cm (4") tweeter with low resonance frequency with compact size.

Large stroke possible due to elastic rubber bead and deep magnet with minimal noise due to pole core bore and back ventilation of the air gap.

Simple basket for flexible mounting possibilities.

Technical data

Rated load capacity 25 W
Music loading 40 W
Nominal impedance Z 4 Ohms

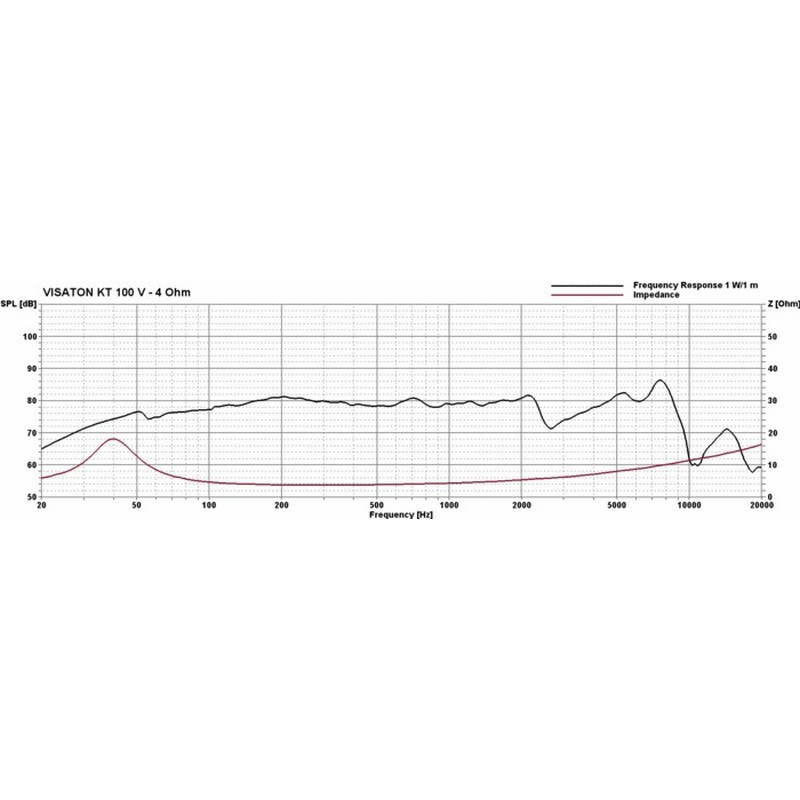

Transmission range (-10 dB) 32-9500 Hz
Medium sound pressure level 80 dB (1 W/1 m)
Reaction frequency fs 37 Hz
Upper pole plate height 3 mm
Oscillating coil diameter 25 mm
Winding height 7 mm

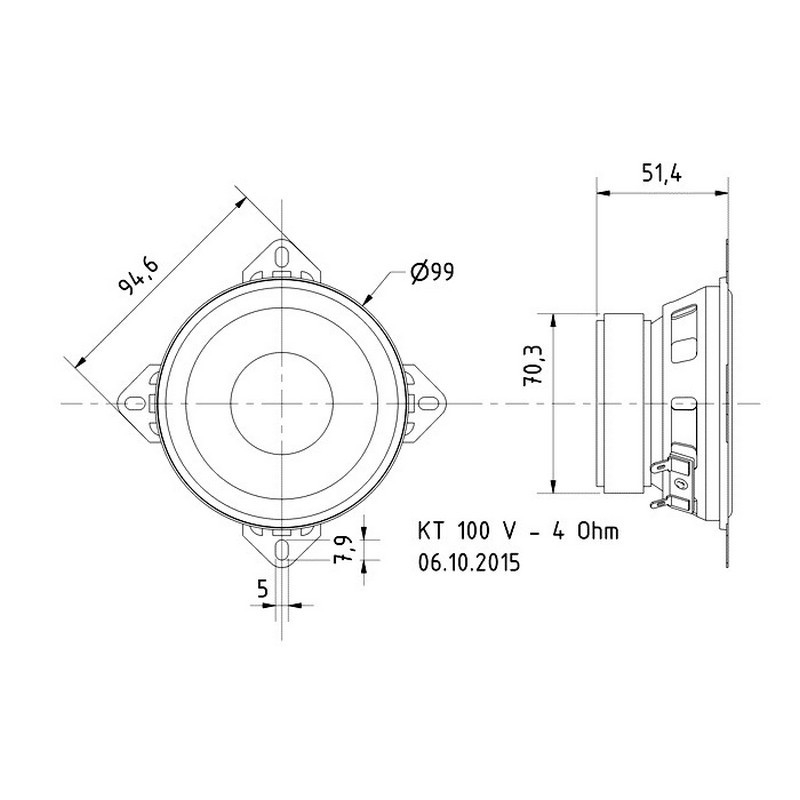

Sound wall opening 92 mm
Weight net 0,466 kg
DC resistance Rdc 3.6 Ohm
Mechanical Q-factor Qms 2,22
Electric Q-factor Qes 0,54
Total Q factor Qts 0,43
Equivalent air yield volume Vas 9.8 l
Effective membrane surface Sd 54,1 cm2
Dynamic moving mass Mms 7.5 g
Drive factor Bxl 3,43 Tm
Connections 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-)
