Visaton W 130 X - 2 x 4 ohm bass driver

13 cm (5") tweeter

€55.10
Our previous price €78.72
Save 30%
Tax included Shipping excluded
Subwoofer
4-0103
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

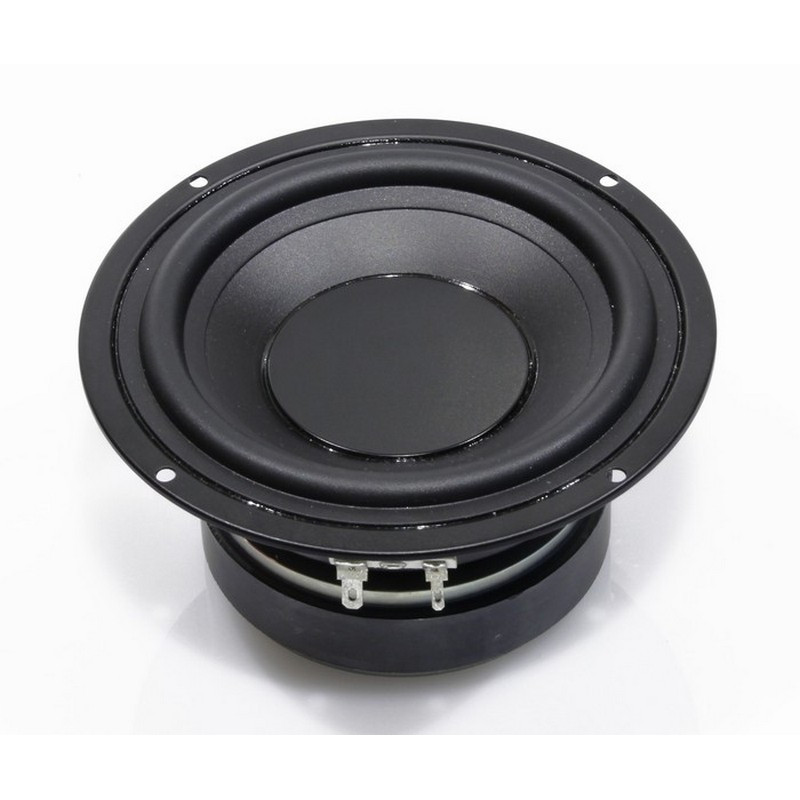

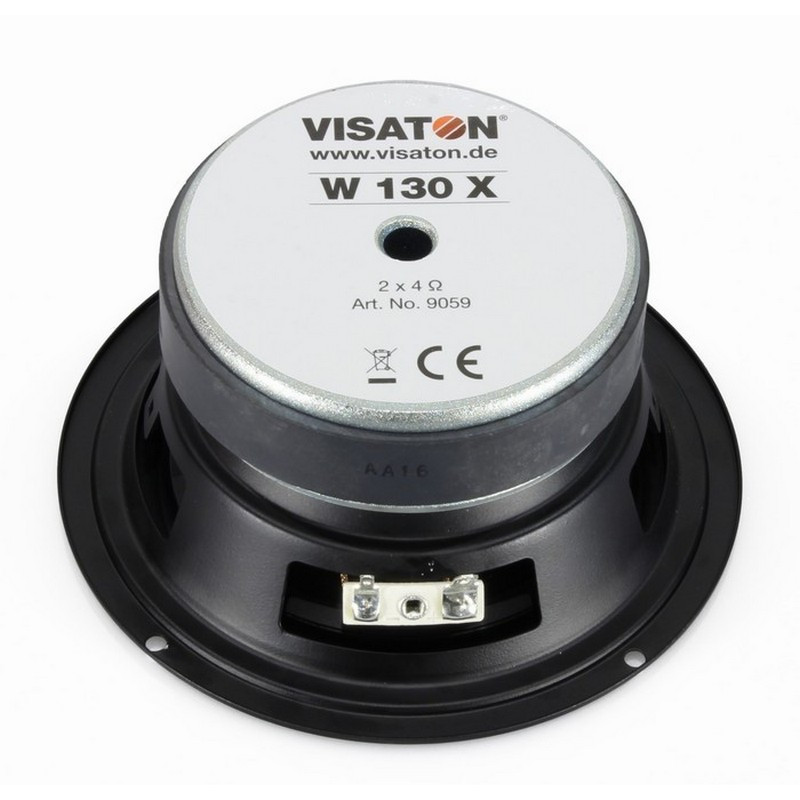

13 cm (5") tweeter with robust polypropylene membrane for extremely compact subwoofer applications.

Very flexible applications 2 x 4-Ohm double oscillating coil, wherein a high-quality 8-ohm chassis is produced by series connection.

The diaphragm stroke, which is enormous for its size, as well as the very low resonance frequency, allow a considerable sound pressure level to which one does not assign such a small loudspeaker.

Connection options:

- (1) a coil open (4 ohms)
- (2) both coils in series (8 ohms)
- (3) both coils parallel (2 ohms)

Case recommendations

Volume/principle BR channel fb fc)/QTC
2,3 l/closed - - 70 Hz/0.71
7.5 l/bass reflex 150 x 10 x 400 (bxhxt) 38 Hz -

Technical data

Rated load capacity 60 W
Music loading 90 W
Nominal impedance Z (1) 4 Ohm (2) 8 Ohm (3) 2 Ohm
Transmission range (-10 dB) fu–6000 Hz
(fu: lower limit frequency depending on the housing) .
Medium sound pressure level 78 dB (1 W/1 m)
Maximum linear stroke +/-5,8 mm (10 % THD)
Border deflection +/-11,5 mm
Reaction frequency fs 40 Hz
Magnetic induction 0,92
Magnetic flux 694 μWb
Upper pole plate height 6 mm
Oscillating coil diameter 40 mm
Winding height 12 mm
Sound wall opening 123 mm
Weight net 1,5 %
DC resistance Rdc (1) 3.8 Ohm (2) 7.9 Ohm (3) 2.0 Ohm
Mechanical Q-factor Qms (1) 4,27 (2) 4,39 (3) 4,59
Electric Q-factor Qes (1) 0.86 (2) 0.41 (3) 0.48
Total Q factor Qts (1) 0,71 (2) 0,37 (3) 0.43
Equivalent air yield volume Vas (1) 5,10 l (2) 5,64 l (3) 5,30 l
Effective membrane surface Sd 94.2 cm2
Dynamic moving mass Mms 37 g
Drive factor Bxl (1) 6.5 Tm (2) 13.2 Tm (3) 6.19 Tm
Vibration coil inductance L (1) 0,77 mH (2) 2,75 mH (3) 0,69 mH
