Visaton W 250 S - 4 Ohm HiFi tweeter

25 cm (10") HiFi tweeter

€87.51
Our previous price €125.01
Save 30%
Tax included Shipping excluded
Subwoofer
4-0112
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

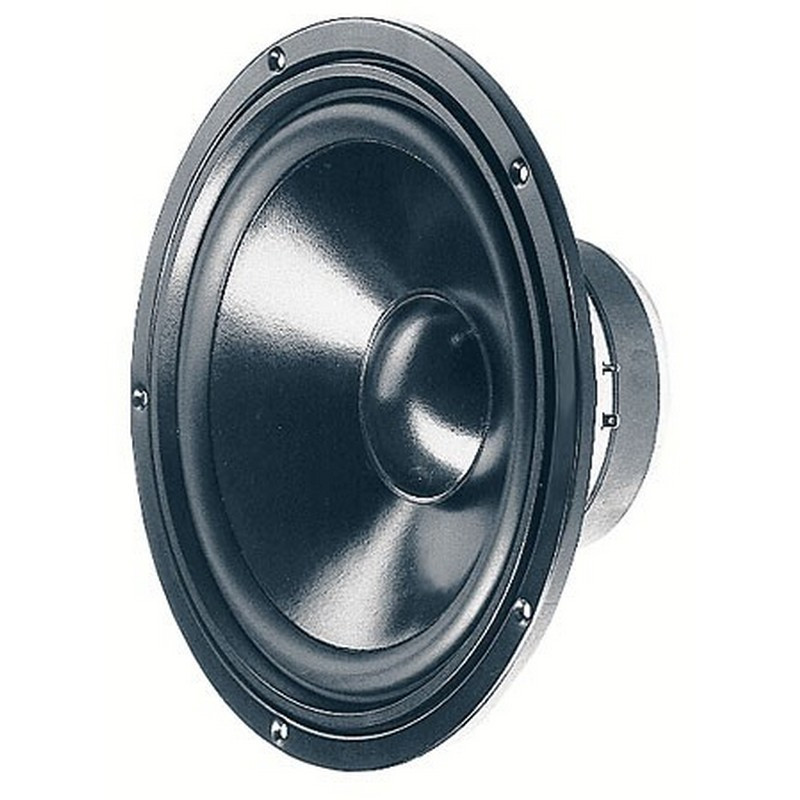

25 cm (10") HiFi tweeter with strong drive, deep-drawn pole plate and 38 mm vibration coil for high load capacity.

Elastic rubber bead, coated paper membrane and pressure equalization opening in the membrane.

Case recommendations:
Volume/principle BR-tube fb
50 l/bass reflex 2 x BR 15.34 43 Hz
70 l/bass reflex 2 x BR 15.34 39 Hz
1 x BR 25.50 (7 cm long)
100 l/bass reflex 2 x BR 15.34 (10 cm long) 34 Hz

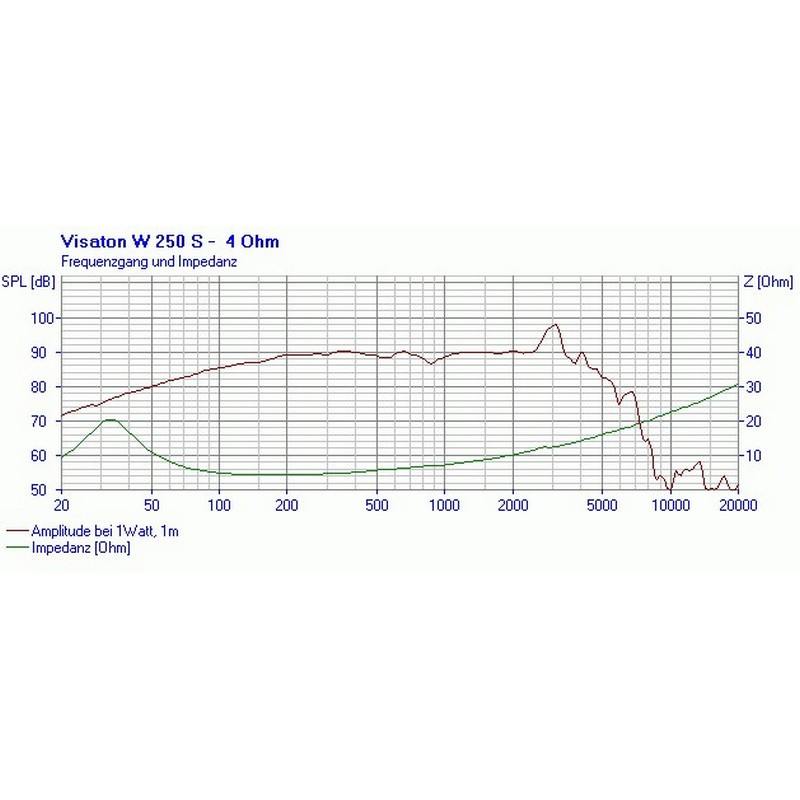

Technical data

Rated load capacity 100 W
Music loading 150 W
Nominal impedance Z 4 Ohms
Transmission range (-10 dB) fu–5500 Hz
(fu: lower limit frequency depending on the housing) .
Medium sound pressure level 90 dB (1 W/1 m)
Border deflection +/-7 mm
Reaction frequency fs 33 Hz
Magnetic induction 1.0
Magnetic flux 835 μWb
Upper pole plate height 7 mm
Oscillating coil diameter 38 mm
Winding height 17 mm

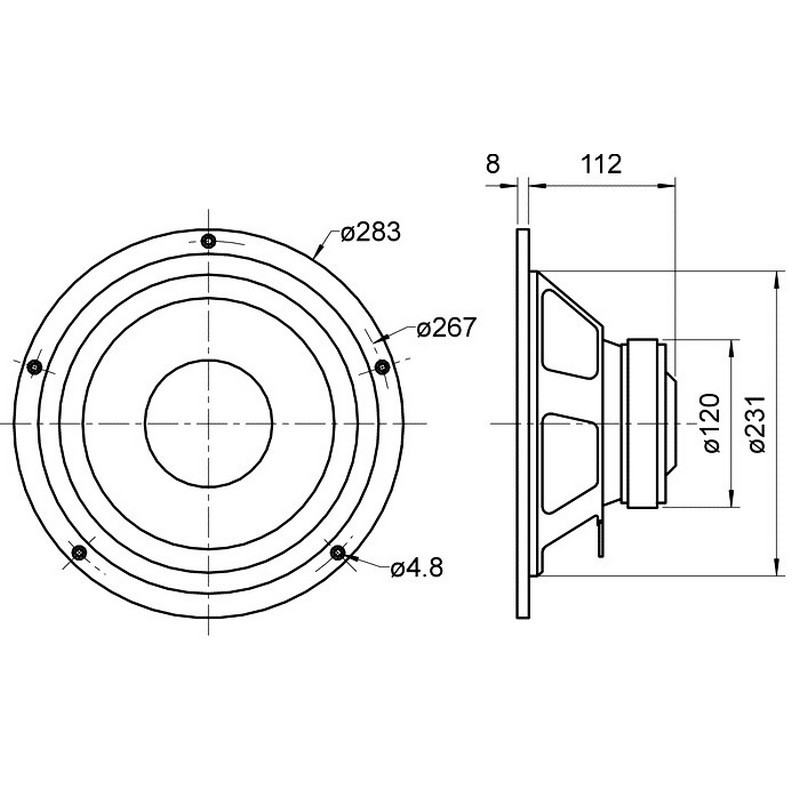

Sound wall opening 233 mm
Weight net 3 kg
DC resistance Rdc 3.6 Ohm
Mechanical Q-factor Qms 2,01
Electric Q-factor Qes 0,43
Total Q factor Qts 0,35
Equivalent air yield volume Vas 135 l
Effective membrane surface Sd 346 cm2
Dynamic moving mass Mms 32 g
Drive factor Bxl 8,9 Tm
Vibration coil inductance L 0,9 mH
