Visaton W 300 - 8 Ohm Visaton W 300 - 8 Ohm Visaton W 300 - 8 Ohm
Visaton W 300 - 8 Ohm
Visaton W 300 - 8 Ohm
Visaton W 300 - 8 Ohm

Visaton W 300 - 8 Ohm Low Sound Speaker

30 cm (12") Low-tone loudspeaker

€85.67
Our previous price €122.38
Save 30%
Tax included Shipping excluded
Subwoofer
4-0114
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

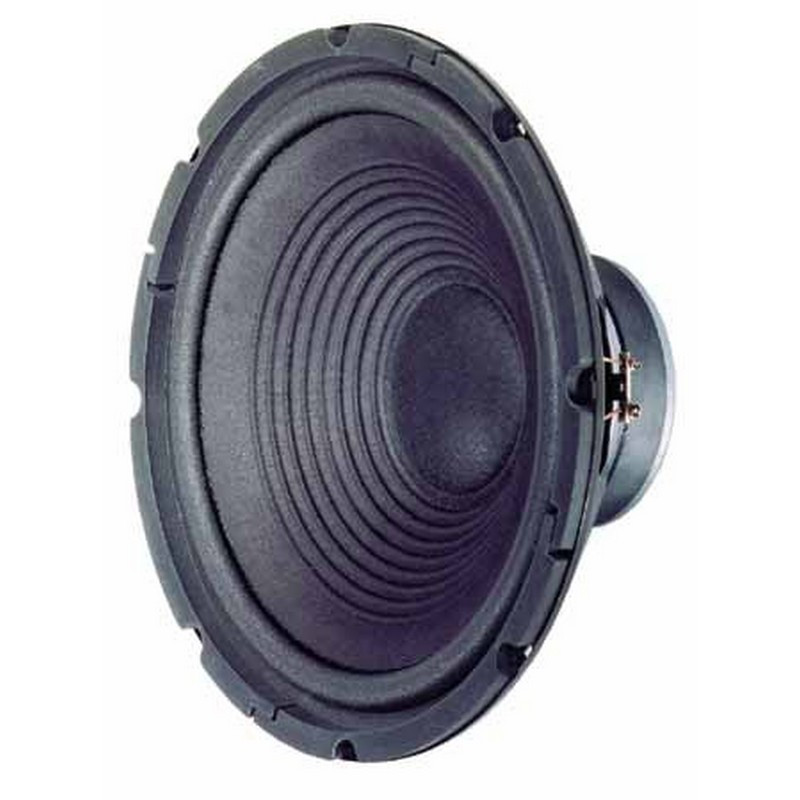

30 cm (12") Low-tone loudspeaker with air-dried membrane and pressure compensation opening in the pole core.

Front or rear mounting possible.

Very good price/performance ratio and high load capacity.

Particularly suitable as replacement fitting for finished boxes.

Case recommendations:
Volume/principle BR-tube fb fc)/QTC
70 l/c  -  - 62 Hz/0.87
100 l/closed  -  - 55 Hz/0.77
150 l/close  -  - 48 Hz/0.68
70 l/bass reflex BR 25.50 (7 cm long) 36 Hz  -
100 l/bass reflex BR 25.50 (20 cm long) 32 Hz  -
150 l/bass reflex 2 x BR 15.34 (7 cm long) 29 Hz  -

Technical data

Rated load capacity 120 W
Music loading 180 W
Nominal impedance Z 8 Ohm
Transmission range (-10 dB) fu–2500 Hz
(fu: lower limit frequency depending on the housing) .
Medium sound pressure level 91 dB (1 W/1 m)
Border deflection +/-14 mm
Reaction frequency fs 32 Hz
Magnetic induction 0,95
Magnetic flux 1250 μWb
Upper pole plate height 8 mm
Oscillating coil diameter 50 mm
Winding height 18,5 mm
Sound wall opening 280 mm
Weight net 2.8 kg
DC resistance Rdc 6.6 Ohm
Mechanical Q-factor Qms 2,68
Electric Q-factor Qes 0,54
Total Q factor Qts 0,45
Equivalent air yield volume Vas 190 l
Effective membrane surface Sd 490 cm2
Dynamic moving mass Mms 43 g
Drive factor Bxl 9,4 Tm
Vibration coil inductance L 1.8 mH
