Visaton CASABLANCA MK IV speaker kit pair

Couple price!

(quantity 1 = 2 pieces)

€986.27
Our previous price €1,408.96
Save 30%

€493.14 pro Stück

Tax included Shipping excluded
Visaton
3-0048
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

Features and sound

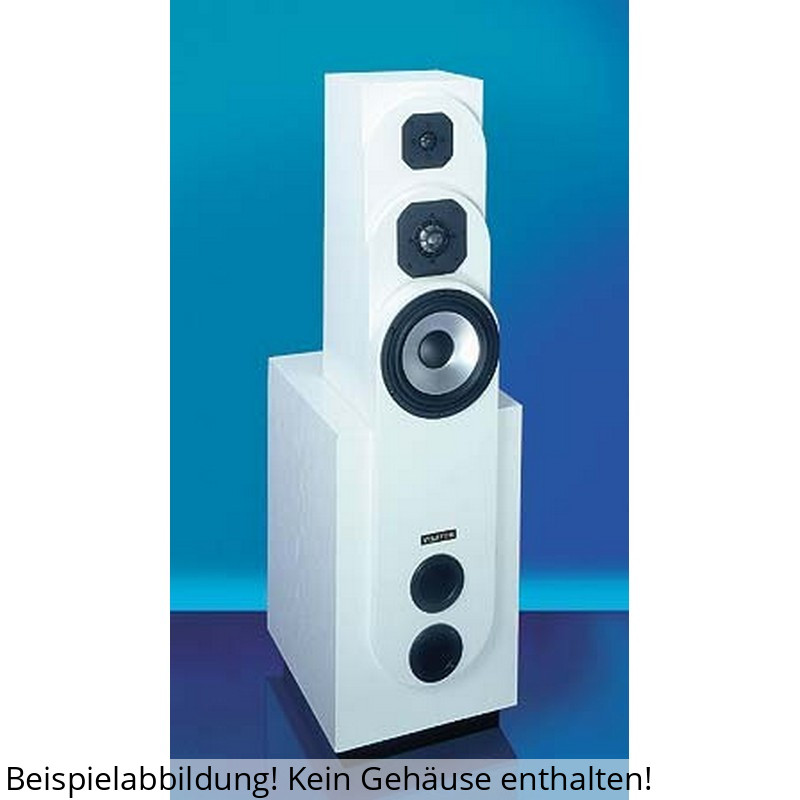

The CASABLANCA IV case immediately impresses with its unusual design.
However, in addition to their optical attractiveness, the housing shape has technical-acoustic advantages which can be converted into audible qualities.

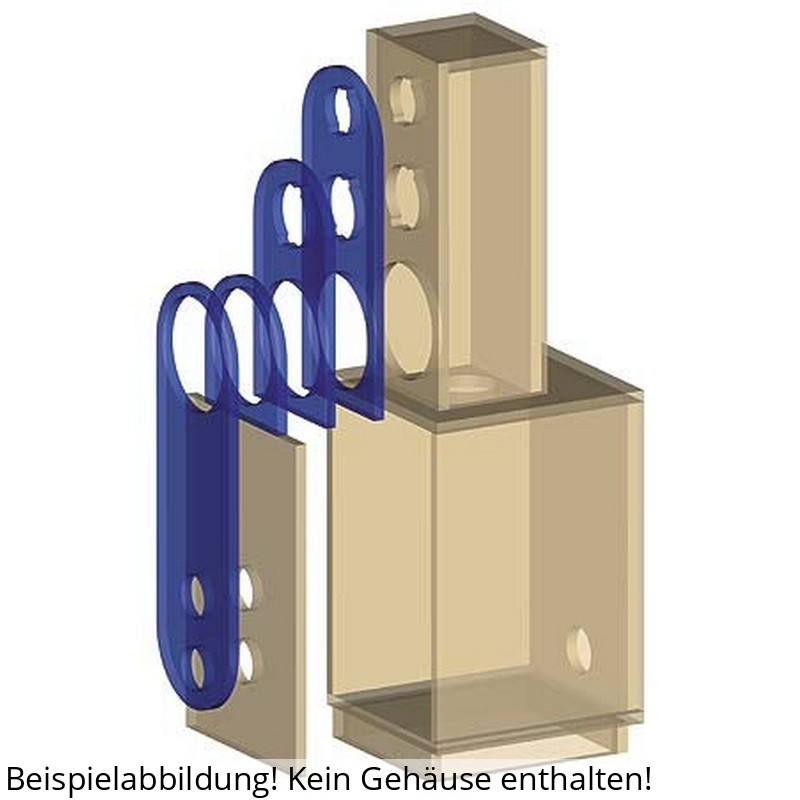

The box consists of a large lower volume and a smaller chamber, which is placed on the large volume and is connected to it by an exactly calculated opening.
This is a double-chamber bass reflex box.
By means of these two chambers, it is possible to extend the transmission range significantly downwards in comparison with a normal bass reflex box.
The reflex tuning (Helmholtzresonance) of the upper chamber is 90 Hz, the lower of which is 33 Hz.
The high-end bass loudspeaker AL 200 - 8 Ohm is used as a tweeter in CASBLANCA IV.
As a long-stroke tweeter, he helps her to ground-depth basses, with a maximum latitude high for its size.
Also new in this version are the two proven Titanium Calottes DSM 50 FFL - 8 Ohm and DSM 25 FFL - 8 Ohm, which guarantee a transparent and splashy sound reproduction throughout the medium and high tone range.
Result: An exceptional box with very good low-bass properties from the design and construction principle, combined with high impulse strength.

Technical data

Rated load capacity 120 W
Music loading 180 W
Nominal impedance Z 8 Ohm
Transmission range (-10 dB) 25 - 30000 Hz
Medium sound pressure level 84 dB (1 W/1 m)
Frequency 700 / 6500 Hz

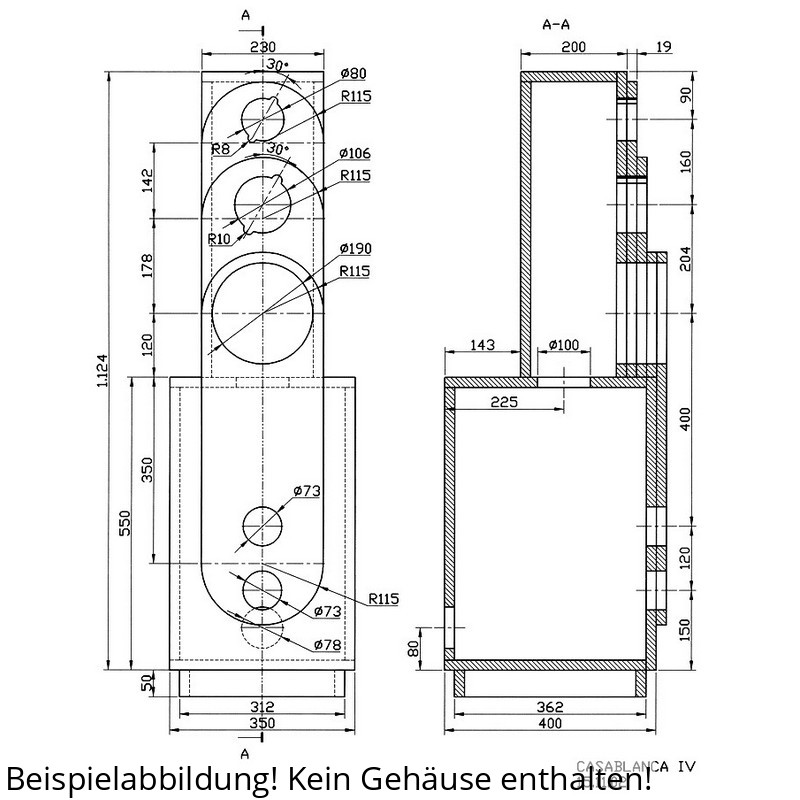

Housing principle Double chamber bass reflex
Net volume 70 l
Exterior height 1174 mm
External dimension width 350 mm
Exterior depth 400 mm

Scope

The kit contains all components listed in this list, but no housing.
Housing kits or CNC-freed sound walls are also available here in the shop.

Tweeters DSM 25 FFL - 8 Ohm 2 pcs.
Medium tones DSM 50 FFL - 8 Ohm 2 pcs.
Low-tone AL 200 - 8 Ohm 2 pcs.

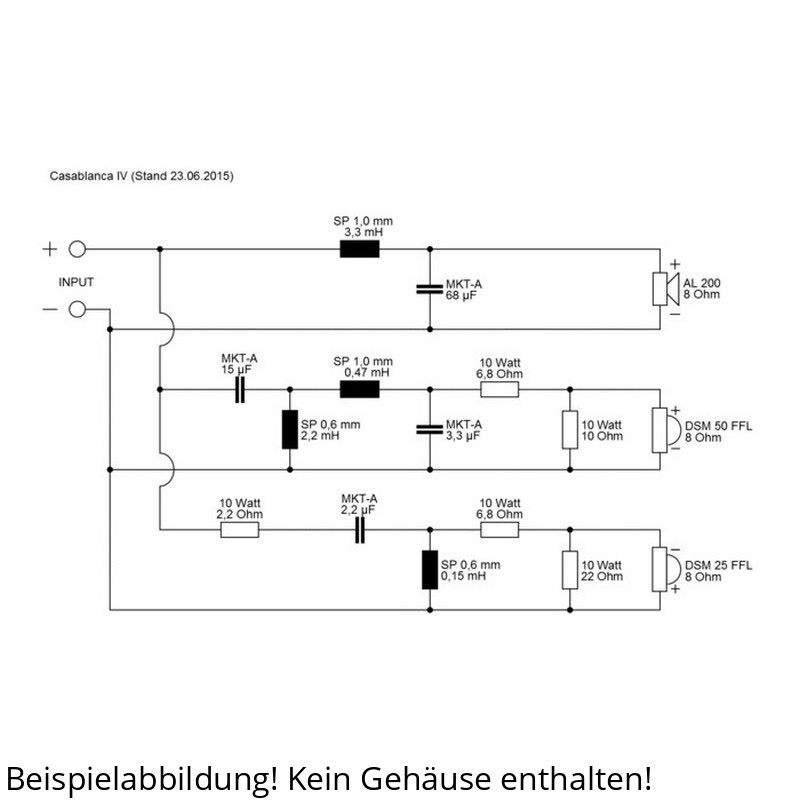

Frequency switch Soft CASBLANCA IV 2 pcs.
Connection terminal ST 77 2 pcs.
Bass reflex tube FR OF 15.34 4 hours.
Damping material Polyester wool 2 btl.
Special wood screws 4 x 20 mm 14 p.
Lower head screws 3,5 x 25 mm 8 pcs.
Cable 2 x 1,5 mm2 6,8 m
