Visaton COUPLET Speaker Kits

Couple price!

(quantity 1 = 2 pieces)

€929.63
Our previous price €1,328.04
Save 30%

€464.81 pro Stück

Tax included Shipping excluded
Visaton
3-0029
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

Features and sound

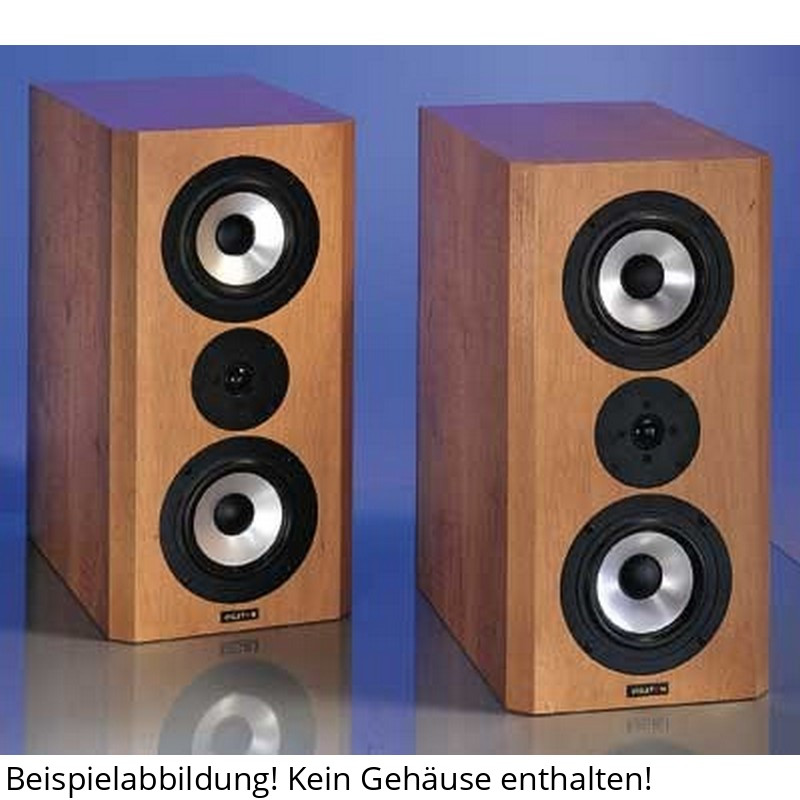

The COUPLET is a shelf box in D'Appolito configuration.
In the low-medium tone range, two 13 cm chassis of type AL 130 - 8 Ohm work.
These high-end loudspeakers can play their entire potential in a 25-l bass reflex housing.
Large stroke and low mechanical losses ensure high-pressure and deep-range bass playback.
The bass reflex tube BR 25.50 installed on the rear side of the housing also contributes to this with its flow-friendly shape.

In the high-tone range, starting at 3000 Hz, the 20-mm tissue calotte G 20 SC - 8 ohm works, which is characterized by a very linear frequency response and excellent round-beam behavior.

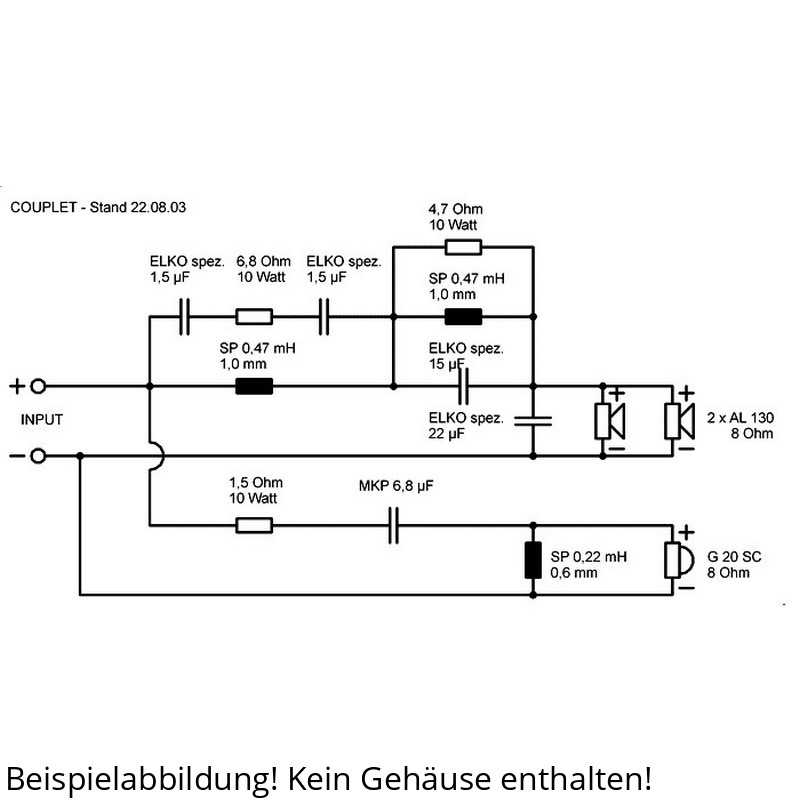

The special frequency softening circuit optimizes the adaptation of the low-medium tones to the tweeter and effectively suppresses resonances of the aluminum membranes.
The frequency response in the middle tone range is linearized.
The result is a box which operates almost linearly in the entire frequency range.
Due to the particularly balanced mid-tone range, every detail of a piece of music is clearly reproduced.
The excellent round-beam behavior leads to particularly spatial music reproduction and precise point imaging of individual instruments or voices.
But the bass foundation is not too short.
In short, the COUPLET is a box that is really fun.

Technical data

Rated load capacity 120 W
Music loading 180 W
Nominal impedance Z 4 Ohms
Transmission range (-10 dB) 38-30000 Hz
Medium sound pressure level 84 dB (1 W/1 m)
Frequency 3000 Hz
Housing principle Bass reflex
Net volume 25 l

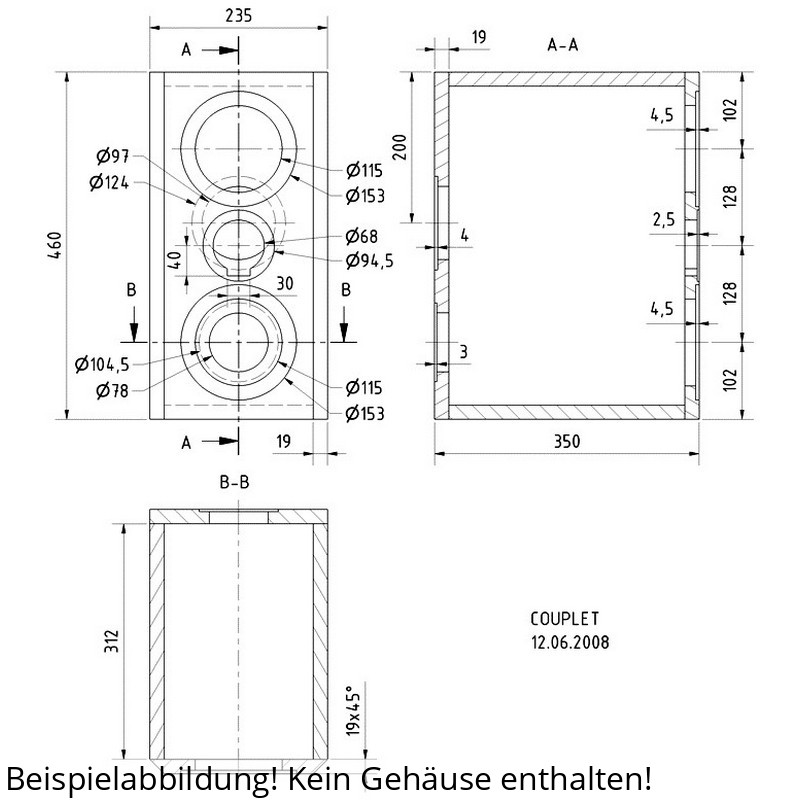

Exterior height 460 mm
External dimension width 235 mm
Exterior depth 350 mm

Scope

The kit contains all components listed in this list of fittings, but no housing. Housing kits or CNC-freed sound walls are also available here in the shop.

Tweeters G 20 SC - 8 Ohm 2 pcs.
Low-tone AL 130 - 8 Ohm 4 hours.
Connection terminal ST 77 2 pcs.
Bass reflex tube BR 25.50 (full length) 2 pcs.
Damping material Polyester wool 2 btl.
Frequency switch Soft Couplet 2 pcs.
Wooden screws 4 x 20 mm 24 pcs.
Lower head screws 3,5 x 25 mm 16 pcs.
Cable 2 x 1,5 mm2 3 m
