Visaton PORTRAIT speaker kit pair

Couple price!

(quantity 1 = 2 pieces)

€149.94
Our previous price €214.20
Save 30%

€74.97 pro Stück

Tax included Shipping excluded
Visaton
3-0036
Quantity
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

Features and sound

Many music lovers have a domestic problem: You want to listen to music in good quality, but there is no space to set up matching speakers or they do not find any speakers whose design fits into the ambience of the auditorium.
Speakers are therefore sought which are not perceived visually as such.

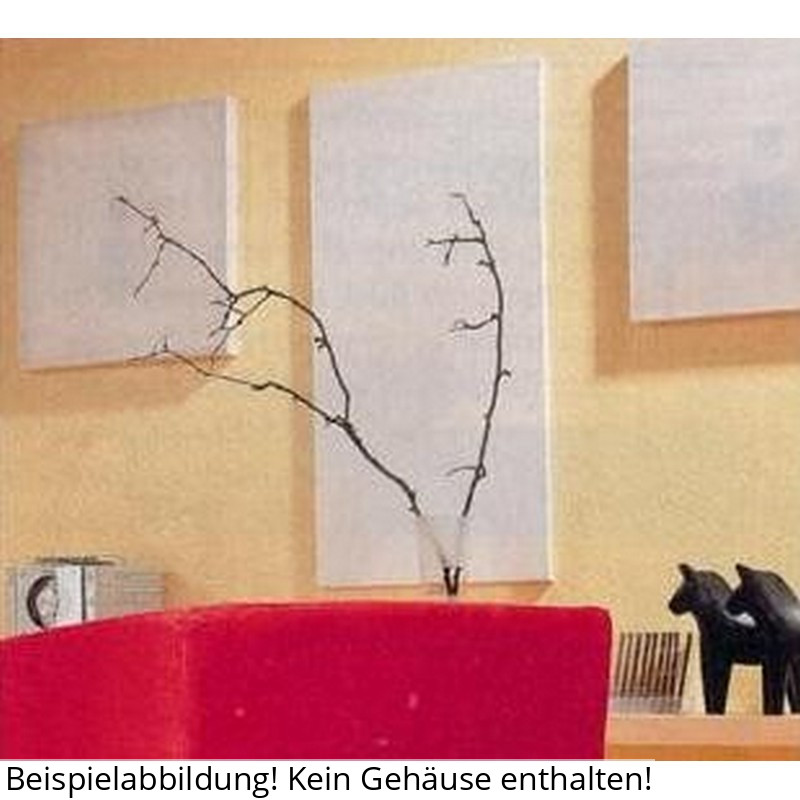

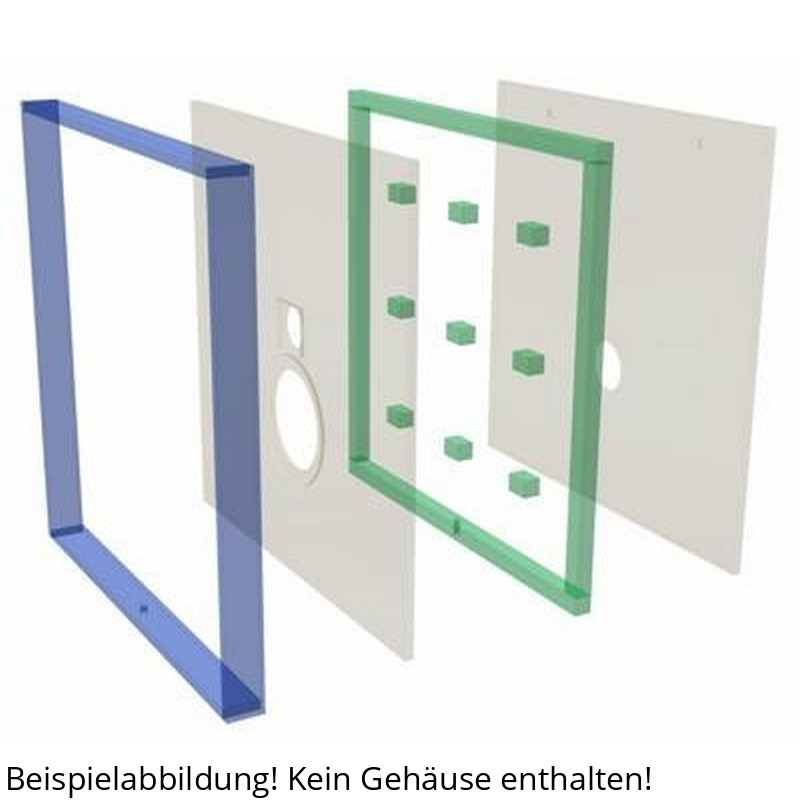

We have therefore developed the PORTRAIT construction proposal, which can be hung like a picture on the wall.
The aim was to design the housing as flat as possible.
The PORTRAIT comes with only 40 mm depth.
If you buy a little more effort for additional milling, you can even reduce the depth to 34 mm.
This is made possible by the use of the particularly flat 13 cm loudspeaker FR 12 - 8 Ohm as a woofer.
A mature satellite box was created in combination with the SC 5 - 8 Ohm tweeter and the specially adapted frequency switch.
Due to the small housing you cannot expect a low bass from the PORTRAIT.
A subwoofer should therefore be added for the bass range below 100 Hz (z.B. SUB-W 20.39 ).
In combination with the powerful subwoofer, an optically discreet and acoustically very powerful system is obtained with the PORTRAIT.
In the case of free wall surfaces in the auditorium in front of and behind the auditorium, further PORTRAITs can be suspended there and thus also a multi-channel system for home cinema and music can be built up.
The PORTRAIT Clou is, however, the possibility of providing the housing with a fabric tension, depending on the environment z.B. with monochrome or coloured silk cloths.
Or you can promote your own creativity in the form of silk painting and immortalize your favorite motifs on the speakers.
There are no limits to imagination.

Technical data

Rated load capacity 30 W
Music loading 80 W
Nominal impedance Z 8 Ohm
Transmission range (-10 dB) 80–22000 Hz
Medium sound pressure level 84 dB (1 W/1 m)
Frequency 7000 Hz
Housing principle closed / closed
Net volume 4 l

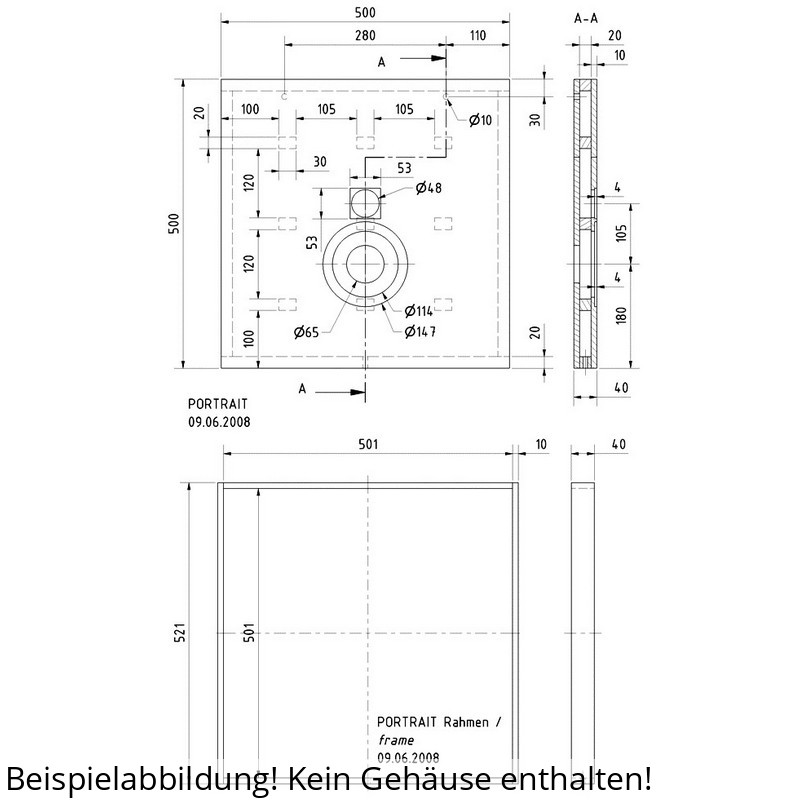

Exterior height 521 mm
External dimension width 521 mm
Exterior depth 40 mm

Scope

The kit contains all components listed in this list of fittings, but no housing.
Housing kits or CNC-freed sound walls are also available here in the shop. Tweeters

Tweeters SC 5 - 8 Ohm 2 pcs.
Low-tone FR 12 - 8 Ohm 2 pcs.
Damping material Polyester wool 1 btl.

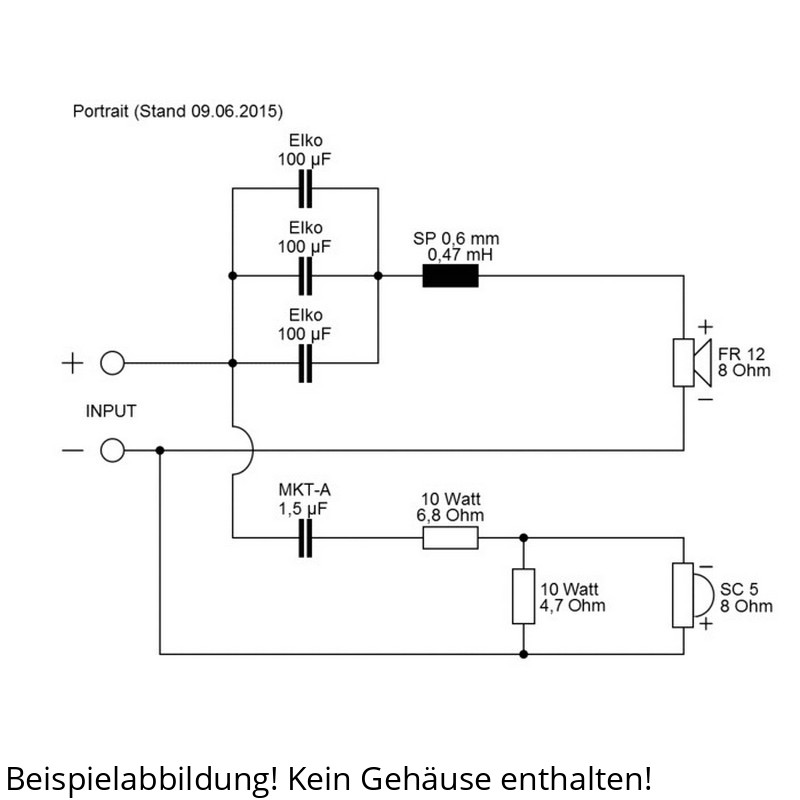

Frequency switch Soft PORTRAIT 2 pcs.
Wooden screws 3,5 x 19 mm 16 pcs.
Cable 2 x 1,5 mm2 2 m
