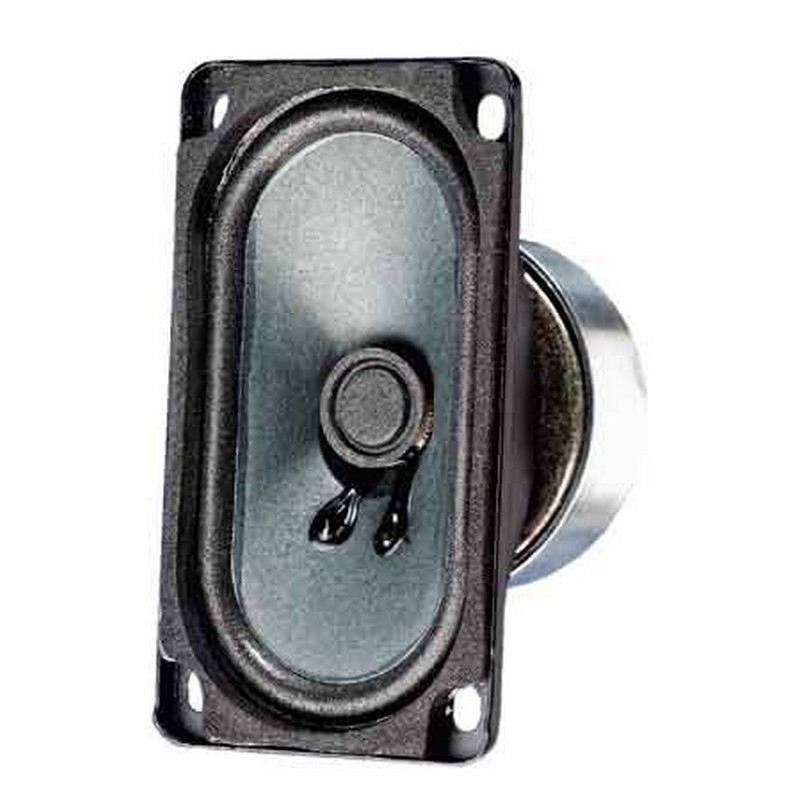

Visaton SC 5.9 - 8 Ohm broadband speakers
Magnetically shielded 5 x 9 cm (2" x 3.5") Broadband speakers
Visaton SC 5.9 - 8 Ohm broadband speakers
Magnetically shielded 5 x 9 cm (2" x 3.5") Broadband speakers
€8.86
Our previous price
€12.65
Save 30%
Tax included
Shipping excluded
4-0080
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
Magnetically shielded 5 x 9 cm (2" x 3.5") Broadband speakers with strong drive, good efficiency and a very balanced frequency response.
The SC 5.9 - 8 Ohm is particularly suitable for space-saving solutions in the area of multimedia and Dolby surround as well as as as a replacement fitting for TV-built loudspeakers.
Applications
- Multimedia boxes
- Video monitors
- TV sets
- Computer terminals
- Control loudspeaker for electronic devices
Characteristics
- Moisture-impregnated membrane
- Metal design
- Magnetic shielding
Technical data
| Rated load capacity | 10 W |
|---|---|
| Music loading | 15 W |
| Nominal impedance Z | 8 Ohm |

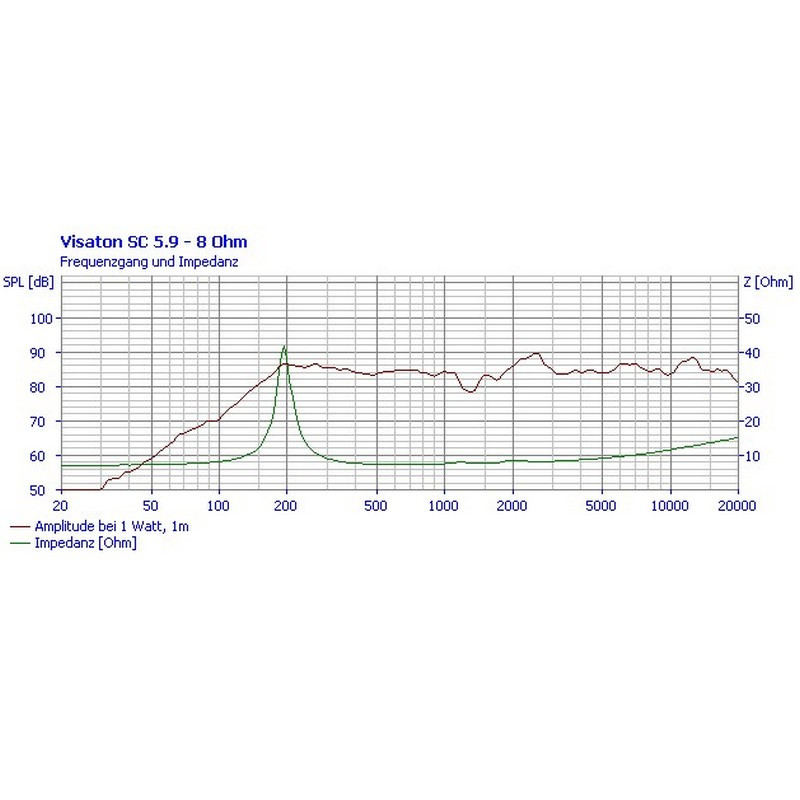

| Transmission range (-10 dB) | 130–20000 Hz |
| Medium sound pressure level | 84 dB (1 W/1 m) |

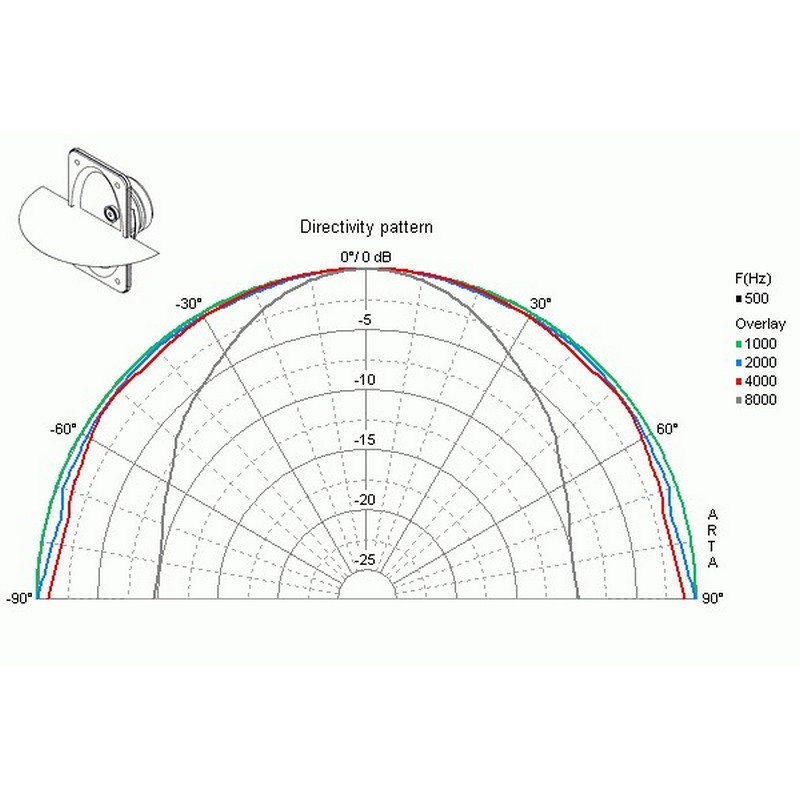

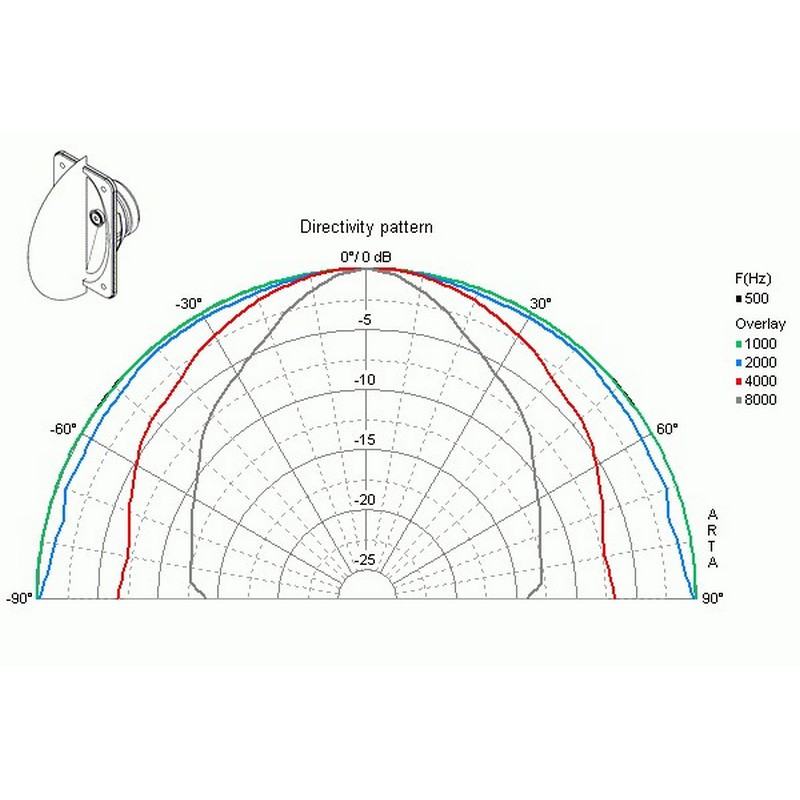

| Beam angle (-6 dB) | 180°/4000 Hz. 131°/4000 Hz. |
| Border deflection | +/-1.5 mm |
| Reaction frequency fs | 193 Hz |
| Magnetic induction | 0,9 % |
| Magnetic flux | 120 μWb |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 14 mm |
| Winding height | 4 mm |

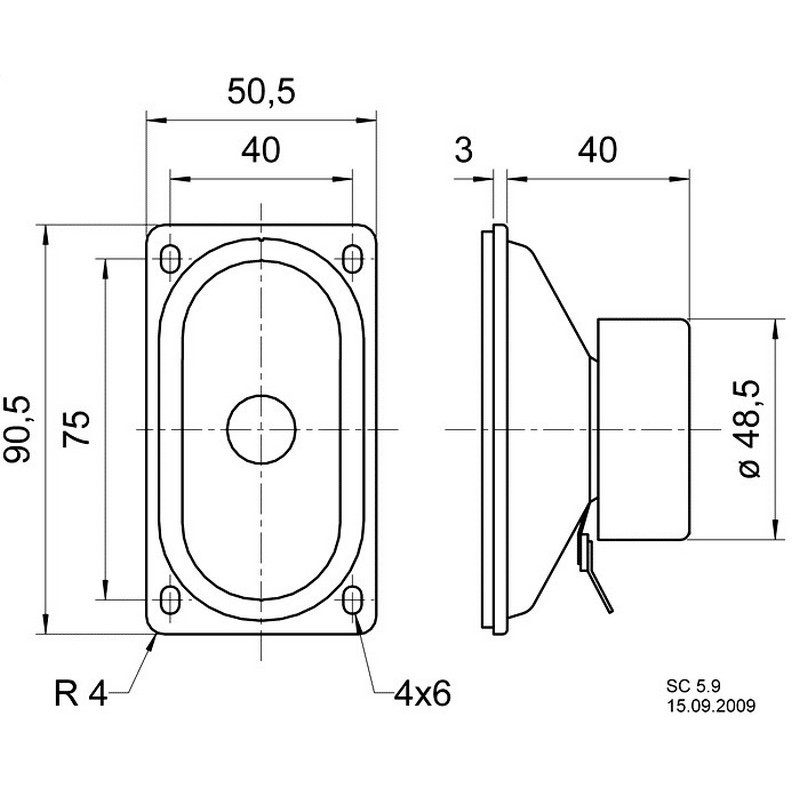

| Sound wall opening | 43 x 82 mm (oval) |
| Weight net | 0,214 |
| DC resistance Rdc | 7.0 Ohm |
| Mechanical Q-factor Qms | 7,52 |
| Electric Q-factor Qes | 1,5 |
| Total Q factor Qts | 1,25 |
| Equivalent air yield volume Vas | 0.4 l |
| Effective membrane surface Sd | 26,5 cm2 |
| Dynamic moving mass Mms | 1.5 g |
| Drive factor Bxl | 2.5 Tm |
| Vibration coil inductance L | 0.4 mH |
| Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-) |
| Temperature range | −25 ... 70 °C |
