Visaton LA BELLE Speaker kit pair
Couple price!
(quantity 1 = 2 pieces)
€1,075.40 pro Stück
Delivery by DHL in a well-padded shipping box
14-day right of return
Features and sound
The equally simple and ambitious idea in the development of LA BELLE was to create a completely perfect loudspeaker, which does not allow any measurable or audible discipline to reveal significant weaknesses and thus promises maximum listening pleasure in every music and space.
To achieve this, some factors had to be taken into account: A linear frequency response on the axis as well as at angles and slight distortions even at high dynamic peaks are the most important.
For a sovereign large signal behavior, a large amount of membrane area is required in the bass in conjunction with a large linear stroke.
In terms of length, no way passes the extremely long-stroke TIW 200 XS - 8 Ohm.
As a pair, the 2 tweeters per side even surpass a TIW 300 - 8 ohm, with the additional advantage of the smaller volume requirement and the possibility to realize a rather narrow box with basses in the front.
Thanks to the sheer inexhaustible level reserves of the tweeters and the specially adapted frequency switch, a lifting-relieving bass reflection design could be dispensed with.
The bass of the LA BELLE is even more precise and clean, and even deeper, depending on the space, than is used by conventional bass reflex boxes.
For a dynamic medium tone with a sufficient membrane surface, the B 200 - 6 ohm just pushed up.
Actually, a wide band, the B 200 - 6 Ohm convinces with the slightest mechanical losses and a starting, light-footed middle tone.
In the low tone protected from large strokes and in the high tone supplemented by the proven ceramic kalotte KE 25 SC - 8 Ohm, the B 200 - 6 Ohm in this combination runs up to the absolute maximum shape and leaves nothing to be desired.
The tweeter also reveals in conjunction with the Waveguide WG 220x150 unprecedented qualities.
As a result of the optimized bundling behavior, the ceramic kalotte can be coupled perfectly to the large midrange driver in the wave guide, resulting in an absolutely homogeneous and breakless unit.
During the transition from the middle tone to the tweeters, there is no jump in the bundling measure, which is why the frequency response of the entire box extends not only on the axis, but also at different angles in an exemplary fashion.
In addition, the separation frequencies were selected such that each branch covers an approximately equally wide frequency range.
This reduces disruptive intermodulation distortions to an absolute minimum.
The listening experience confirms the full success of the concept: The LA BELLE has created a loudspeaker that does not allow the slightest weakness and reproduces any music material with such a battery rate and authenticity, that one quickly reveals the search for any mistakes and simply enjoys music in previously unknown quality.
Room influences play a much smaller role than most other speakers.
Due to the steady bundling measure, LA BELLE sounds tonal in strongly damped rooms just as correct as in weakly damped modern living environments.
Thanks to its closed design, the rich low bass does not exaggerate even in smaller rooms, but also in large rooms and high volume does not sweep the sails and rises effortlessly in the lowest frequency cellar.
The highest-quality high/medium-tone combination ensures a virtual stage which, regardless of the pitch, opens in a stable manner as in stone and wide fanned in front of the listener.
The special fascination lies in the extremely high dynamic range of LA BELLE.
Even at very low volume levels, she transports instruments and singers physically and realistically into the auditorium, but remains impressively loose and low-distortion to levels beyond the pain limit, so that even louder hearing does not exhaust.
The LA BELLE is thus clearly the recommendation for the demanding listener who wants to relive his entire music collection and who wants to get no limits from the speaker.
Technical data
Rated load capacity | 200 W |
---|---|
Music loading | 300 W |
Nominal impedance Z | 4 Ohms |
Transmission range (-10 dB) | 26–25000 Hz |
Medium sound pressure level | 81 dB (1 W/1 m) |
Frequency | 300 / 2500 Hz |
Housing principle | closed / closed |
Net volume | 32 l + 28 l + 8 l |

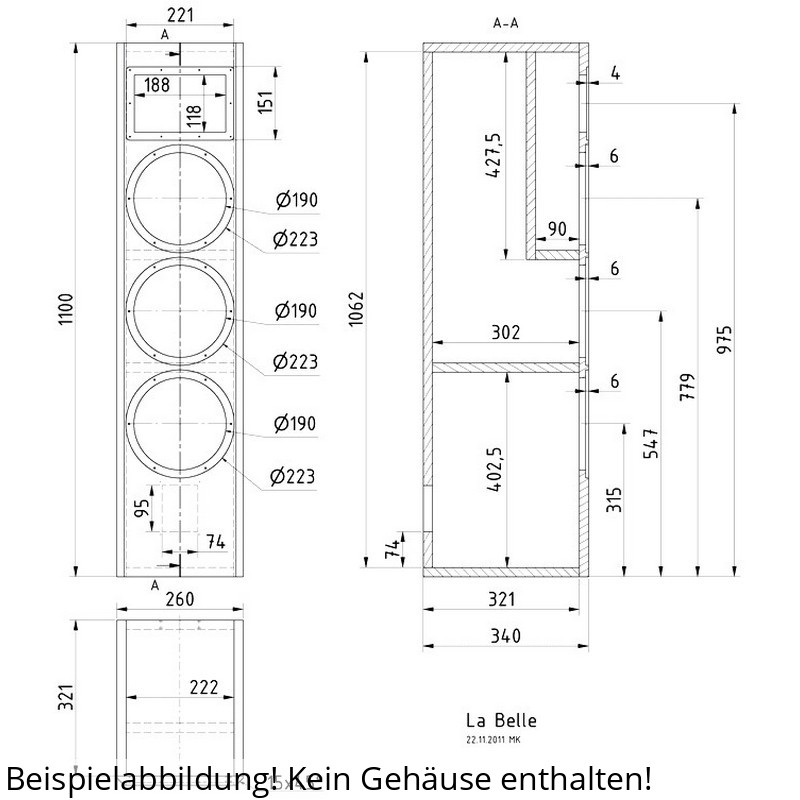

Exterior height | 1100 mm |
External dimension width | 260 mm |
Exterior depth | 340 mm |
Scope
The kit contains all components listed in this list of fittings, but no housing.
Housing kits or CNC-freed sound walls are also available here in the shop.
Tweeters | KE 25 SC - 8 Ohm | 2 pcs. |
Waveguide | WG 220x150 | 2 pcs. |
Medium tones | B 200 - 6 Ohm | 2 pcs. |
Low-tone | TIW 200 XS - 8 Ohm | 4 hours. |

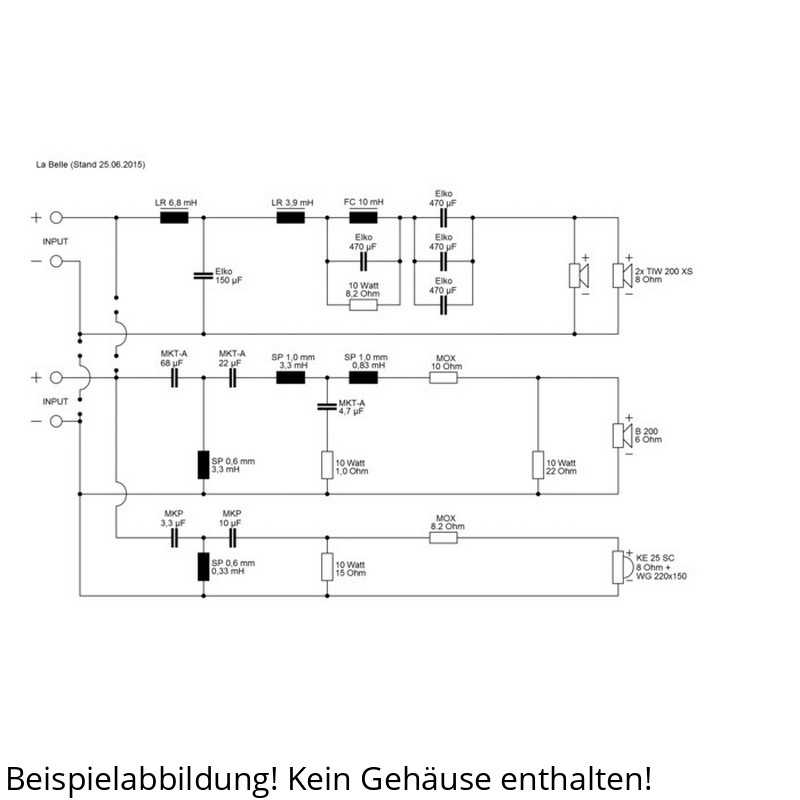

Frequency switch | LA BELLE | 2 pcs. |
Connection terminal | BT 95 % | 2 pcs. |
Damping material | Polyester wool | 10 btl. |
Wooden screws | 5 x 30 mm | 36 pcs. |
Lower head screws | 3,5 x 25 mm | 28 pcs. |
Cable | 2 x 2,5 mm2 | 8 m |
