Visaton CLOU speaker kit pair

Couple price!

(quantity 1 = 2 pieces)

€326.54
Our previous price €466.48
Save 30%

€163.27 pro Stück

Tax included Shipping excluded
Visaton
3-0028
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

Features and sound

The CLOU is a slender 2-way standbox, whose charm is clearly in the price-performance ratio, which is underlined by the fitting with two WS 17 E - 8 Ohm for low to medium frequencies and the SC 10 N - 8 Ohm for the high tone.
In order to ensure a balanced sound image with these low-priced chassis, the two bass sounders were spatially separated from each other and assigned a separate closed volume to each.
The lower WS 17 E - 8 Ohm plays in a 36 l case.
This leads to a uniform increase in the frequency response from 60 Hz to 600 Hz.
The upper WS 17 E - 8 ohm, on the other hand, must have a volume of 16 l, which results in a slight increase in the frequency range between 60 Hz and 150 Hz.
In total, the two bass toners add to a harmonious bass foundation with targeted emphasis on the frequencies from 60 to 130 Hz.

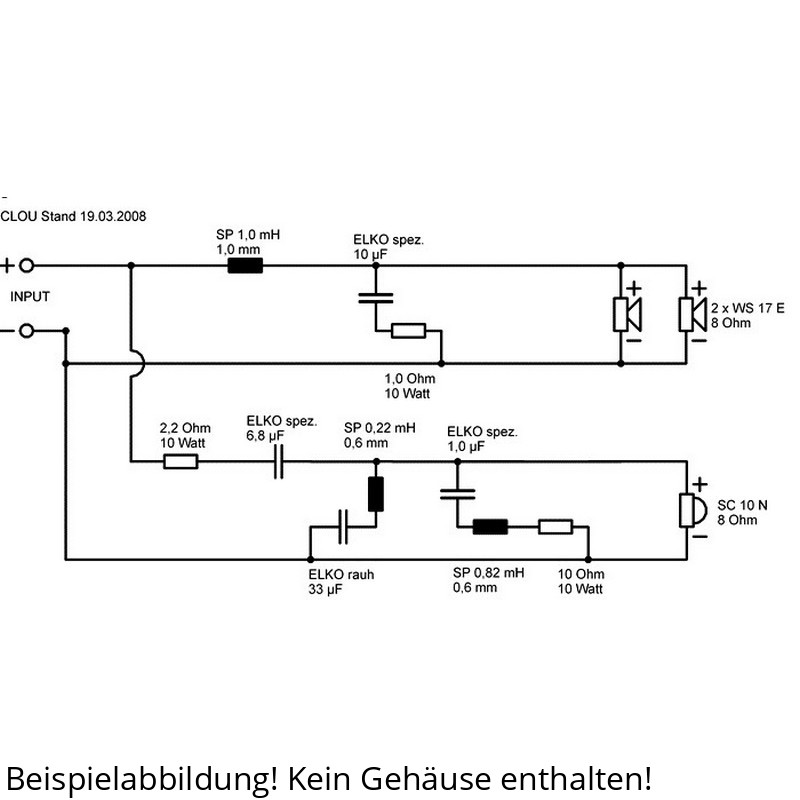

In order to connect the tweeter seamlessly to the bass, a properly dimensioned locking circuit is required, which smooths undesirable level peaks and resonances.

The result of this unusual chassis and housing combination is a standbox that is absolutely worth seeing and listening, which acts soundly far above its pricey frame.

Technical data

Rated load capacity 120 W
Music loading 180 W
Nominal impedance Z 4 Ohms
Transmission range (-10 dB) 38–20000 Hz
Medium sound pressure level 82 dB (1 W/1 m)
Frequency 3200 Hz

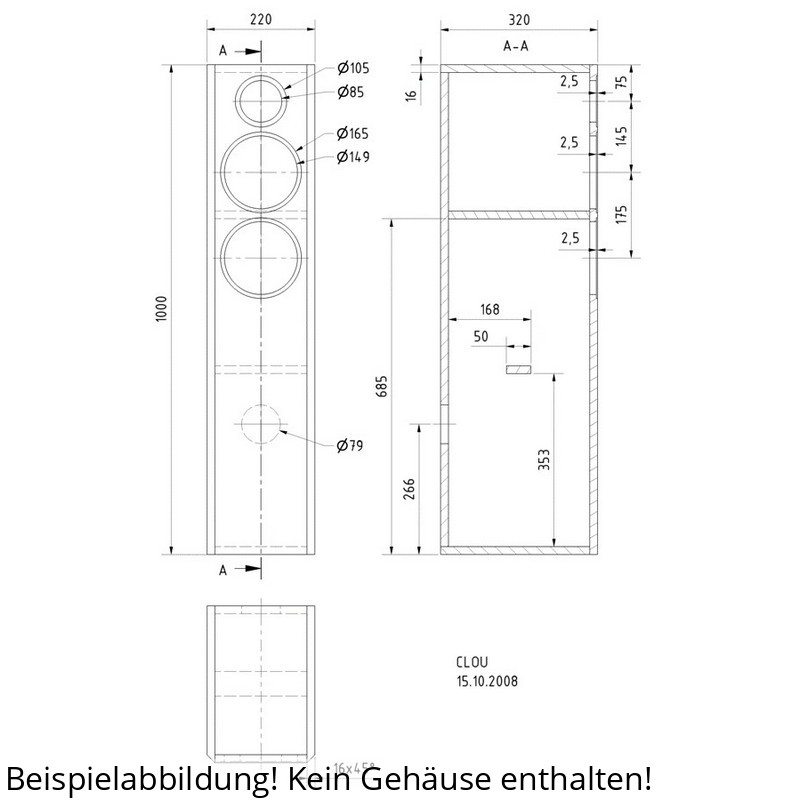

Housing principle closed/ closed
Net volume 36 l + 16 l
Exterior height 1000 mm
External dimension width 220 mm
Exterior depth 320 mm

The kit contains all components listed in this list of fittings, but no housing. Housing kits or CNC-freed sound walls are also available here in the shop.

Tweeters SC 10 N - 8 Ohm 2 pcs.
Low-medium tones WS 17 E - 8 Ohm 4 hours.
Connection terminal ST 77 2 pcs.
Damping material Polyester wool 4 Btl.
Frequency switch Soft CLOU 2 pcs.
Wooden screws 3,5 x 19 mm 24 pcs.
Lower head screws 3,5 x 25 mm 8 pcs.
Cable 2 x 1,5 mm2 5 m
