Visaton ATLANTIS MK II Speaker Kit Visaton ATLANTIS MK II Speaker Kit Visaton ATLANTIS MK II Speaker Kit Visaton ATLANTIS MK II Speaker Kit
Visaton ATLANTIS MK II Speaker Kit
Visaton ATLANTIS MK II Speaker Kit
Visaton ATLANTIS MK II Speaker Kit
Visaton ATLANTIS MK II Speaker Kit

Visaton ATLANTIS MK II Speaker Kit Pair

Couple price!

(quantity 1 = 2 pieces)

€1,739.30
Our previous price €2,484.72
Save 30%

€869.65 pro Stück

Tax included Shipping excluded
Visaton
3-0047
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

Features and sound

The ATLANTIS is consistently designed for good acoustic pressure with moderate housing size and elegant optics.
In the bass area, two AL 170 - 8 ohms are used in parallel in separate chambers, each of which has a volume of approximately 27 l.
This already achieves a lower limit frequency of 28 Hz, i.e. a saturated low bass.
The positioning of the boxes is relatively uncritical, they should not be directly on the wall (min. 10 cm distance), since the effect of the bass reflex tubes is then hindered.

The middle toner AL 130 - M 8 Ohm is equipped with a shorter oscillating coil compared to the normal AL 130 - 8 Ohm.
This leads to higher efficiency and makes it an ideal partner in this combination.
The KE 25 SC - 8 Ohm from 2500 Hz is coupled as a tweeter.
The clirr factor of this ceramic cap is already extremely low at these frequencies, so that even high levels can be reproduced without distortion.

Technical data

Rated load capacity 140 W
Music loading 200 W
Nominal impedance Z 4 Ohms
Transmission range (-10 dB) 28–25000 Hz
Medium sound pressure level 86 dB (1 W/1 m)
Frequency 200/2500 Hz
Housing principle Bass reflex
Net volume 2 x 27 l + 7 l

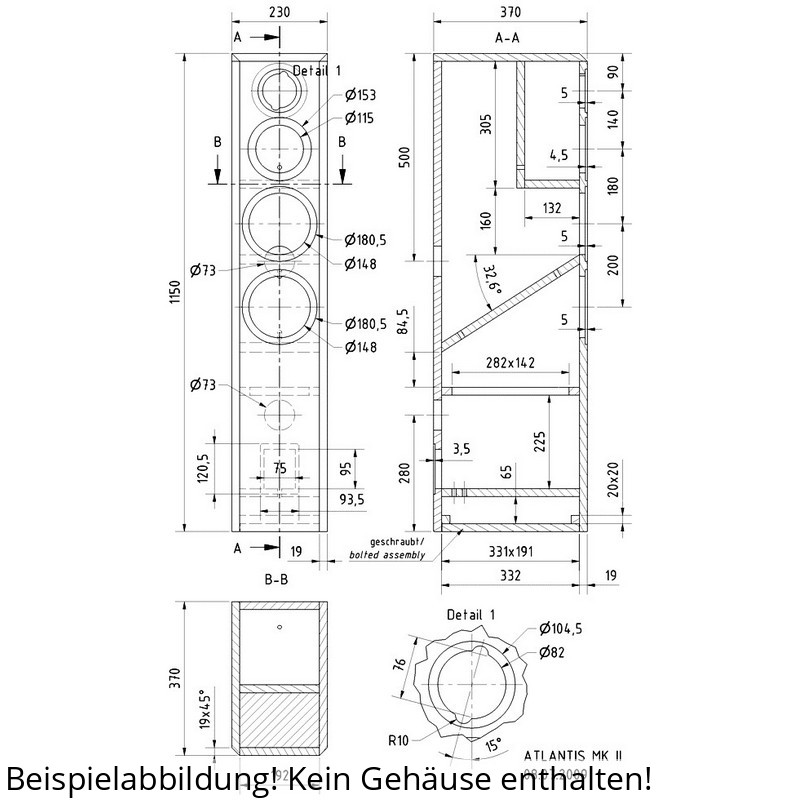

Exterior height 1150 mm
External dimension width 230 mm
Exterior depth 370 mm

Scope

The kit contains all components listed in this list of fittings, but no housing.
Housing kits or CNC-freed sound walls are also available here in the shop.

Tweeters KE 25 SC - 8 Ohm 2 pcs.
Medium tones AL 130 M - 8 Ohm 2 pcs.
Low-tone AL 170 - 8 Ohm 4 hours.

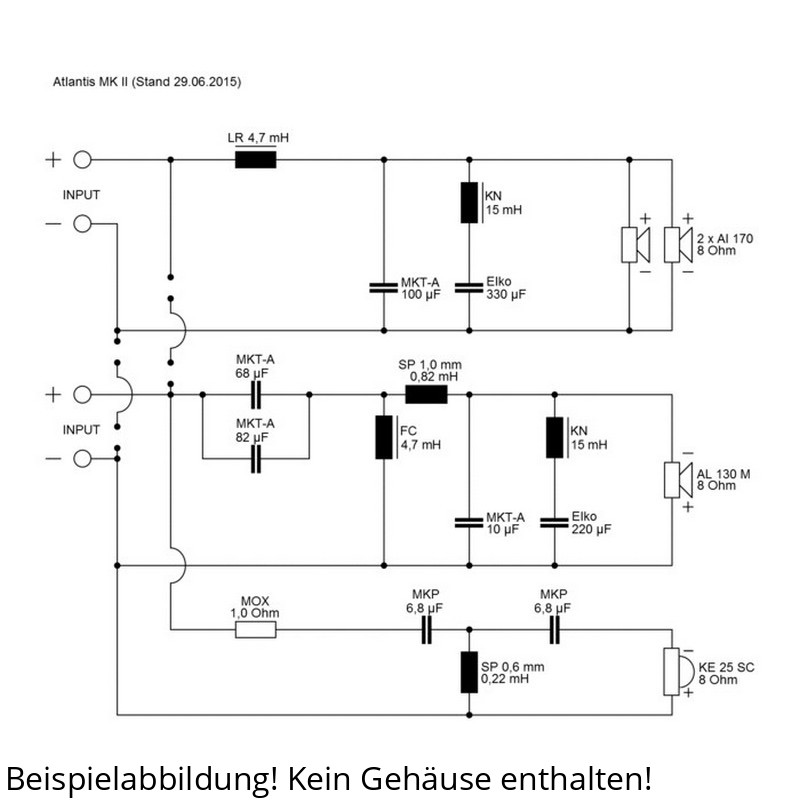

Frequency switch Soft Atlantis 2 pcs.
Bass reflex tubes BR 15.34 (full length) 4 hours.
Connection terminal BT 95 % 2 pcs.
Damping material Polyester wool 5 Btl.
Special wood screws 4 x 25 mm 32 pcs.
Lower head screws 3,5 x 25 mm 8 pcs.
Cable 2 x 1,5 mm2 5 m
Cable 2 x 2,5 mm2 5 m
