Visaton STUDIO 1 speaker kit 1 piece
Price! (quantity 1 = 1 piece, quantity 2 = 1 pair)
Visaton STUDIO 1 speaker kit 1 piece
Price! (quantity 1 = 1 piece, quantity 2 = 1 pair)
€569.77
Our previous price
€813.96
Save 30%
€569.77 pro Stück
Tax included
Shipping excluded
3-0038
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
Features and sound

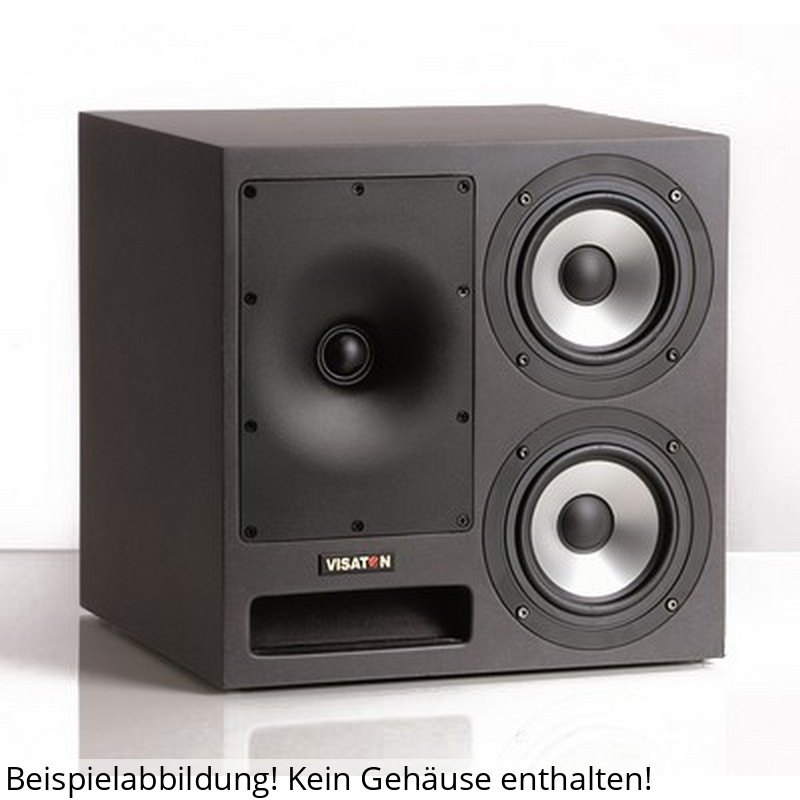

The name of the STUDIO 1 was easy due to the appearance that reminds of studio monitors.
This should not mean that this is a pure studio monitor.
This loudspeaker can easily be used both in larger home cinema systems and as a pure stereo system, optionally supplemented by an active subwoofer.
Using the Waveguide WG 220x150, paired with the excellent properties of the well-known G 25 FFL - 8 Ohm tweeter, as well as the two AL 130 - 8 Ohm tweeters, an interesting and extraordinary design has been created, which can be described as enormously detailed and realistic in terms of location sharpness and stage imaging.

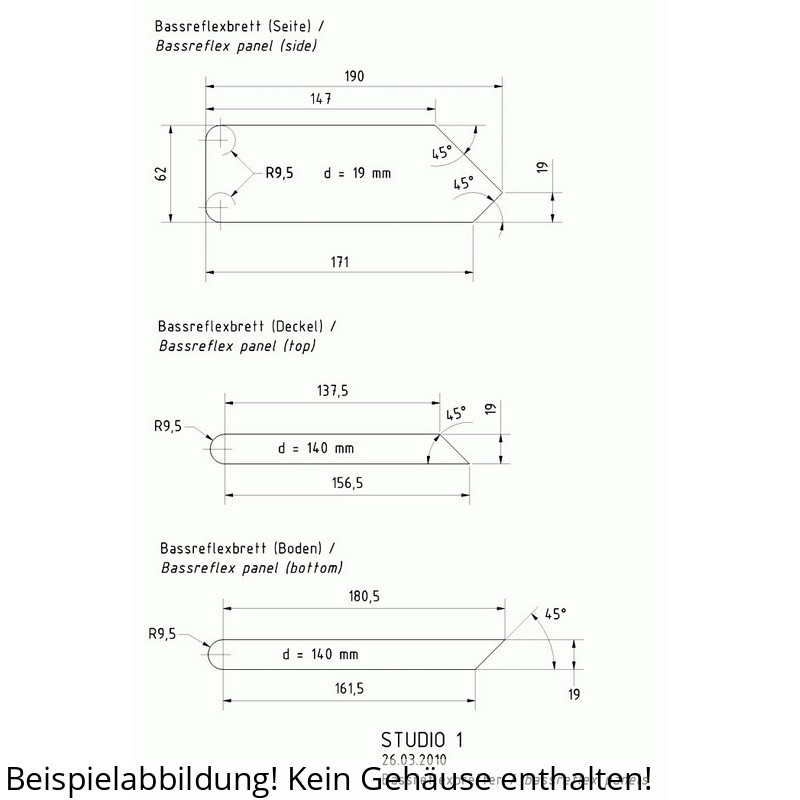

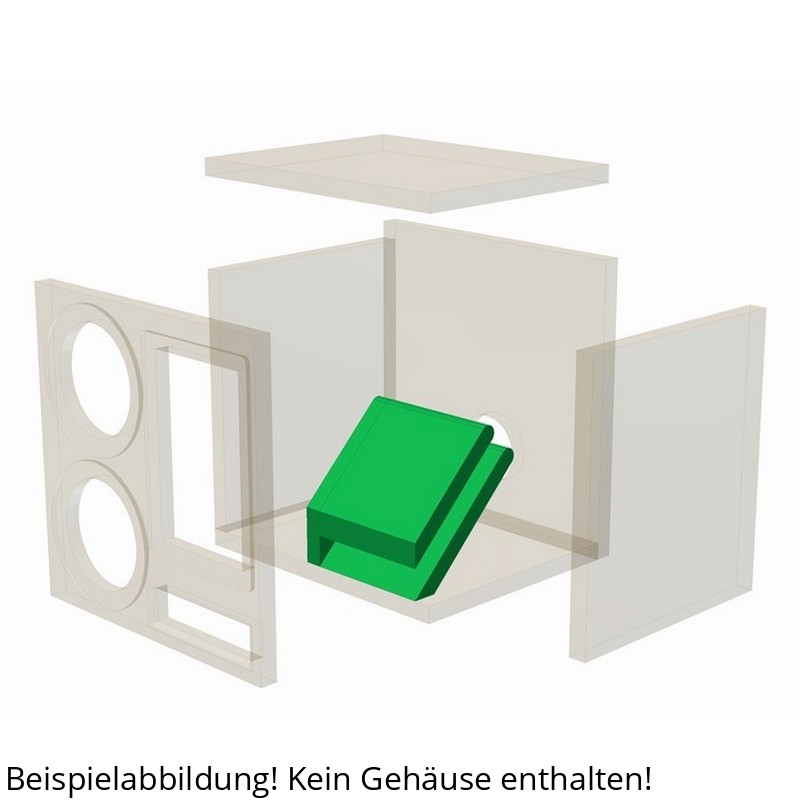

In this case, the bass reflection channel is installed in the angled state.
This eliminates the known problem of the standing shaft in the channel itself.
The Waveguide WG 220x150 for significant improvements on the tweeter G 25 FFL - 8 Ohm: On the one hand, due to the overall height of the wave guide, the sound generation site becomes more loudspeakers (z.B. Tweeters) approached and, on the other hand, the exponentially expanding form optimizes the bundling and relieves the tweeter in the lower frequency range.
An optimized bundling means here that the directional characteristic of the tweeter in the takeover region is adapted to that of the AL 130 - 8 ohm.
This results in a homogeneous sound even in rooms with different reverberation times.
These important points enable the excellent sound image of the STUDIO 1, which can be best described in combination with the term "direct".
Technical data
| Rated load capacity | 120 W |
|---|---|
| Music loading | 180 W |
| Nominal impedance Z | 4 Ohms |
| Transmission range (-10 dB) | 32–20000 Hz |
| Medium sound pressure level | 84 dB (1 W/1 m) |
| Frequency | 1600 Hz |
| Housing principle | Bass reflex |
| Net volume | 20.5 l |

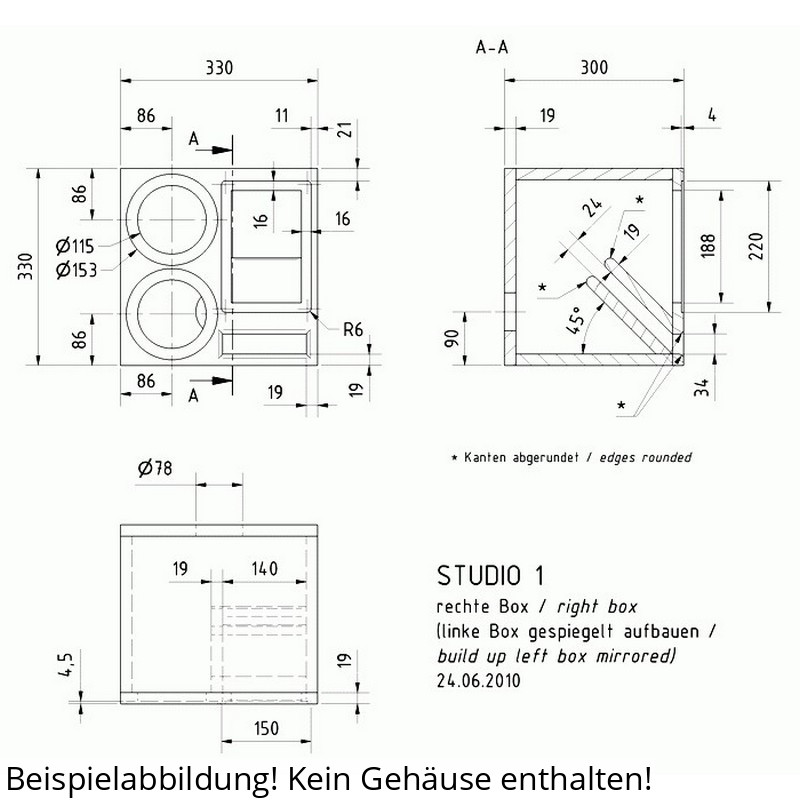

| Exterior height | 330 mm |
| External dimension width | 330 mm |
| Exterior depth | 300 mm |
Scope
The kit contains all components listed in this list of fittings, but no housing. Housing kits or CNC-freed sound walls are also available here in the shop.
| Tweeters | G 25 FFL - 8 Ohm | 1 pc. |
| Low-medium tones | AL 130 - 8 Ohm | 2 pcs. |
| Waveguide | WG 220x150 | 1 pc. |

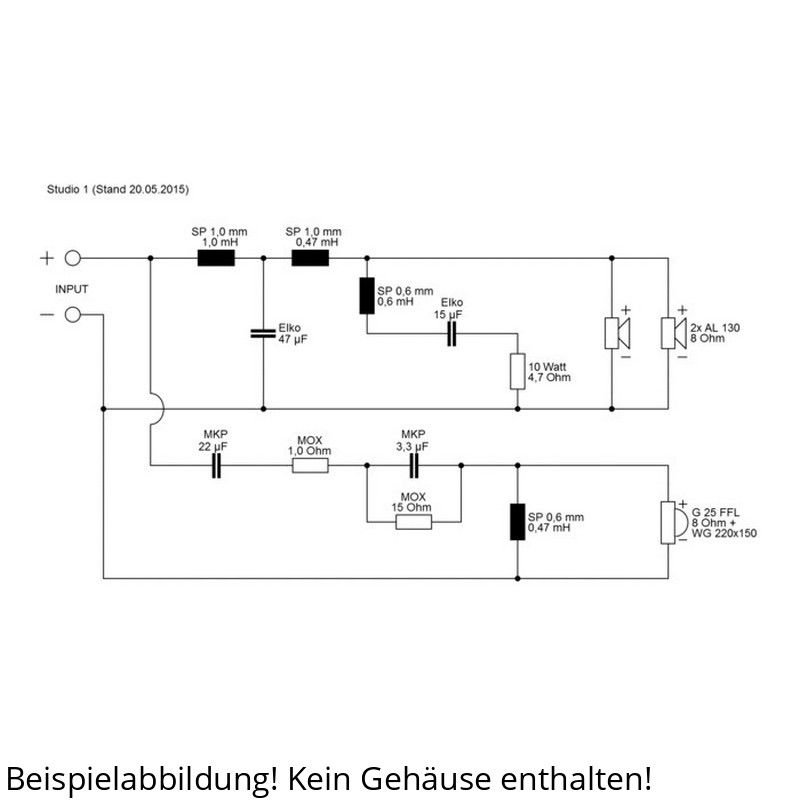

| Frequency switch | STUDIO 1 | 1 pc. |
| Terminal | ST 77 | 1 pc. |
| Damping material | Polyester wool | 1 btl. |
| Cable | 2 x 1,5 mm2 | 1.5 m |
| Wooden screws (cylinder head) | 4,0 x 25 mm | 8 pcs. |
| Lower head screws | 3,5 x 25 mm | 14 p. |
