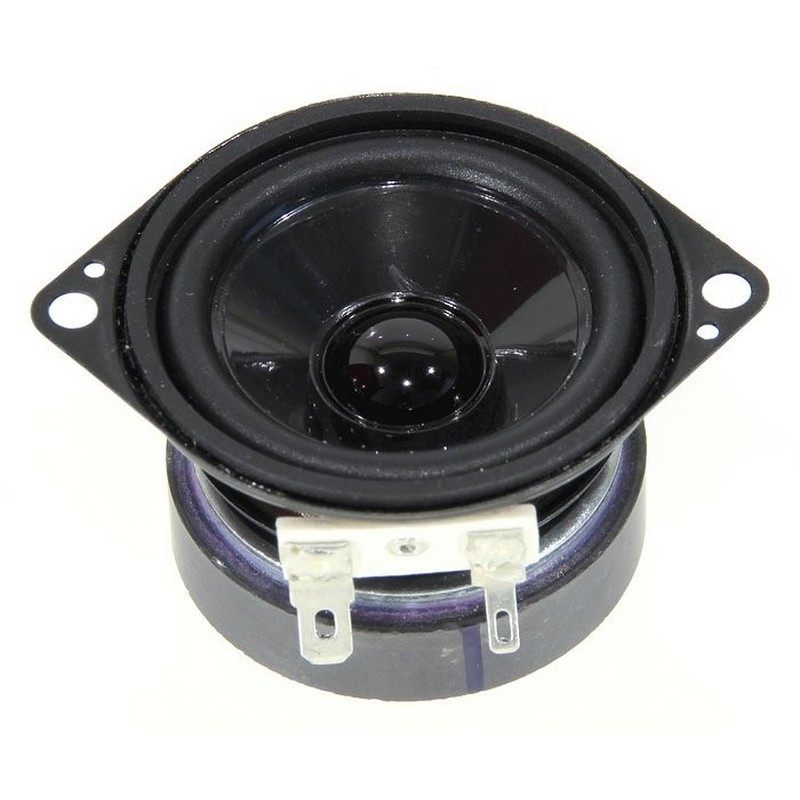

Visaton FRS 5 XWP - 8 Ohm broadband speakers
5 cm (2") broadband loudspeaker
Visaton FRS 5 XWP - 8 Ohm broadband speakers
5 cm (2") broadband loudspeaker
€13.63
Our previous price
€19.47
Save 30%
Tax included
Shipping excluded
4-0046
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
5 cm (2") broadband loudspeaker with black metal basket and two fastening straps.
Due to the low resonance frequency, the transmission range starts at 120 Hz.
Suitable as a broadband loudspeaker or midrange loudspeaker in loudspeaker lines for Hifi and sound systems as well as for ELA systems in 100 V technology.
Due to the small dimensions also very well suited as control loudspeakers in electronic devices.
*) IP protection class for front side when installed in a sealed housing
Characteristics
- Rubber seal
- waterproof by PET membrane and Mylar dust protection cup
- UV-resistant
- Metal design, corrosion-proof
Technical data
| Rated load capacity | 5 W |
|---|---|
| Music loading | 8 W |
| Nominal impedance Z | 8 Ohm |
| Transmission range (-10 dB) | 120–20000 Hz |
| Medium sound pressure level | 86 dB (1 W/1 m) |
| Reaction frequency fs | 190 Hz |
| Weight net | 0,14 kg |
| DC resistance Rdc | 7.9 Ohm |
| Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-) |
| Protection class | IP 65 *) |
| Temperature range | −25 ... 70 °C |
