Visaton DX 10 - 4 Ohm coaxial loudspeaker
10 cm (4") 2-way coaxial loudspeaker
Visaton DX 10 - 4 Ohm coaxial loudspeaker
10 cm (4") 2-way coaxial loudspeaker
€60.82
Our previous price
€86.89
Save 30%
€30.41 pro Stück
Tax included
Shipping excluded
4-0147
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
Couple price!

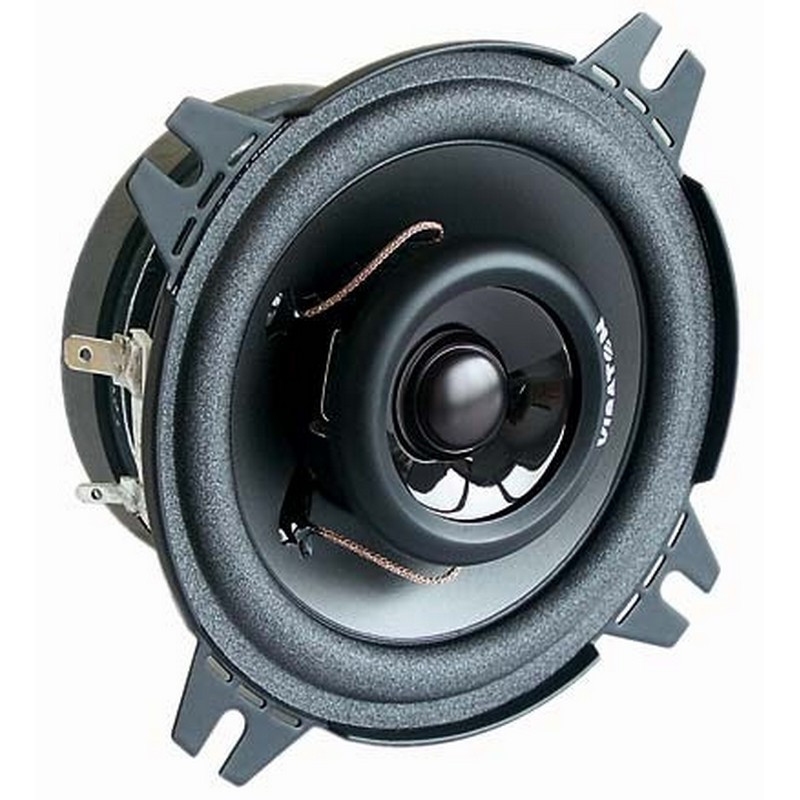

10 cm (4") 2-way coaxial loudspeaker with polypropylene membrane and polycarbonate tweeter.
Integrated frequency switch (condenser) for the tweeter.
Balanced sound.
Unproblematic assembly in vehicles with 10-cm installation openings.
With mounting ring and grid installation on door panels and rear racks possible.

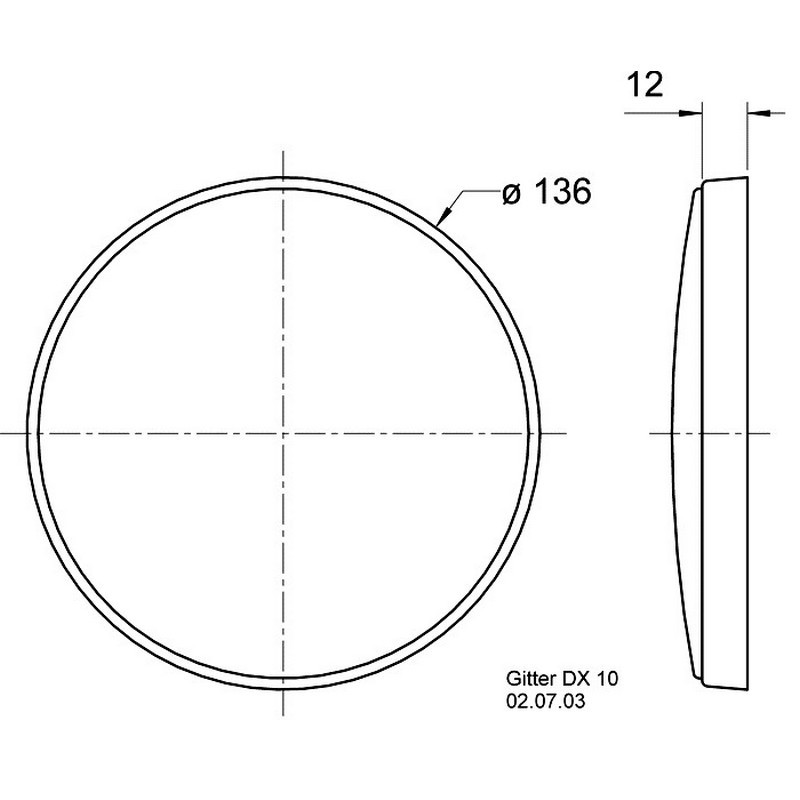

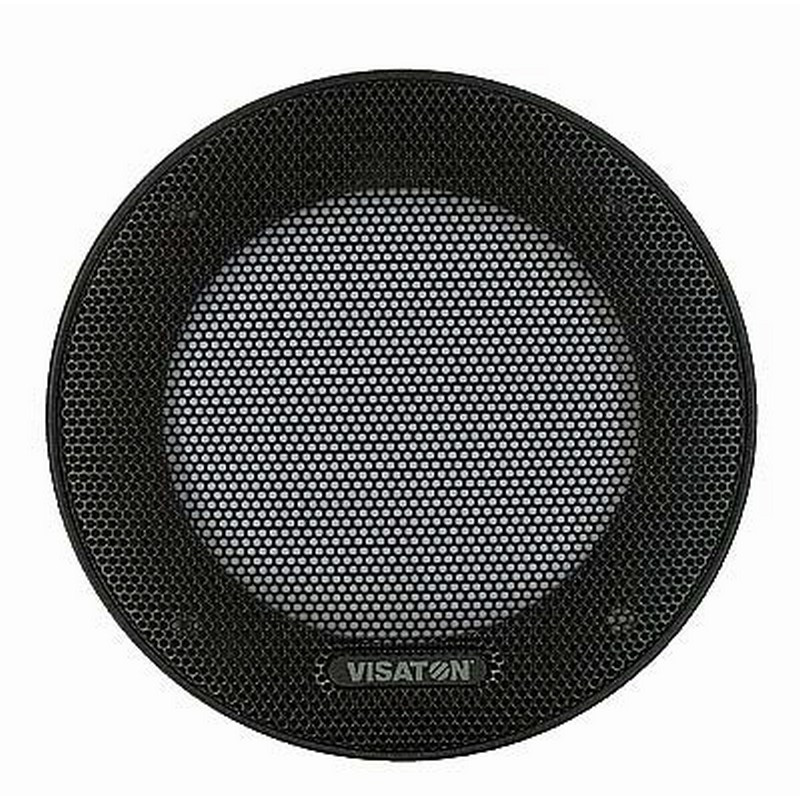

Packed in pairs, including mounting material and protective grid.
Applications
- Vehicles
- motorhome
Technical data
| Rated load capacity | 50 W |
|---|---|
| Music loading | 70 W |
| Nominal impedance Z | 4 Ohms |

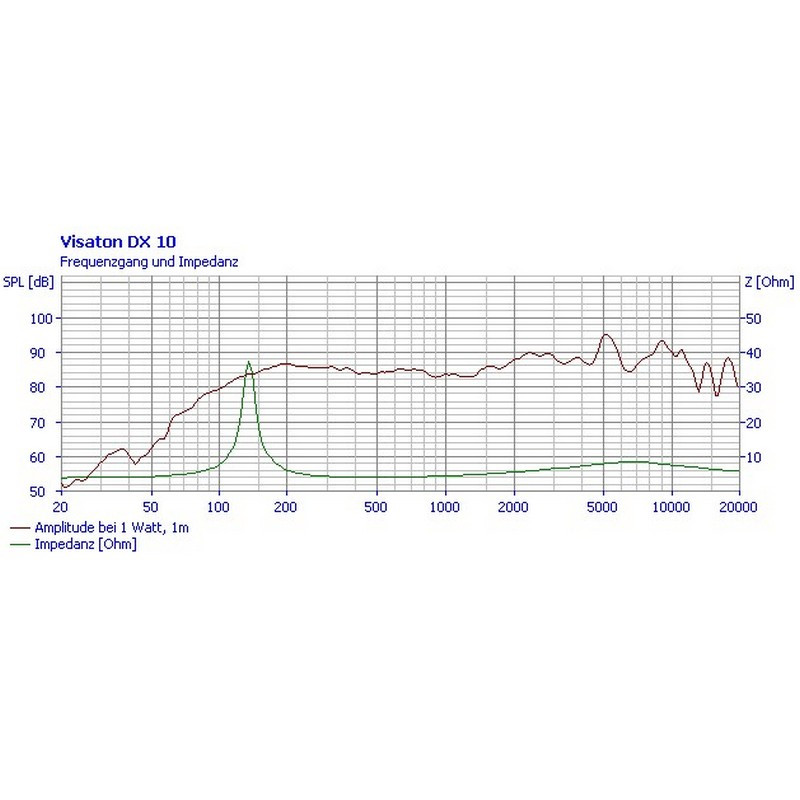

| Transmission range (-10 dB) | 80–20000 Hz |
| Medium sound pressure level | 88 dB (1 W/1 m) |

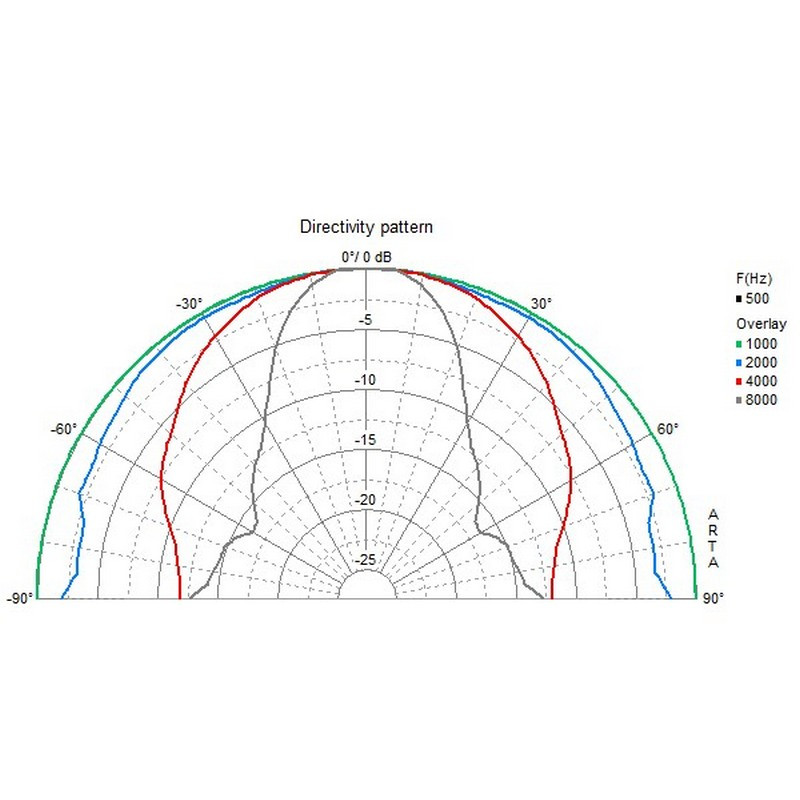

| Beam angle (-6 dB) | 98°/4000 Hz |
| Border deflection | +/-3 mm |
| Reaction frequency fs | 110 Hz |
| Magnetic induction | 1 T |
| Magnetic flux | 310 μWb |
| Upper pole plate height | 4 mm |
| Oscillating coil diameter | 25 mm/14 mm |
| Winding height | 6 mm |

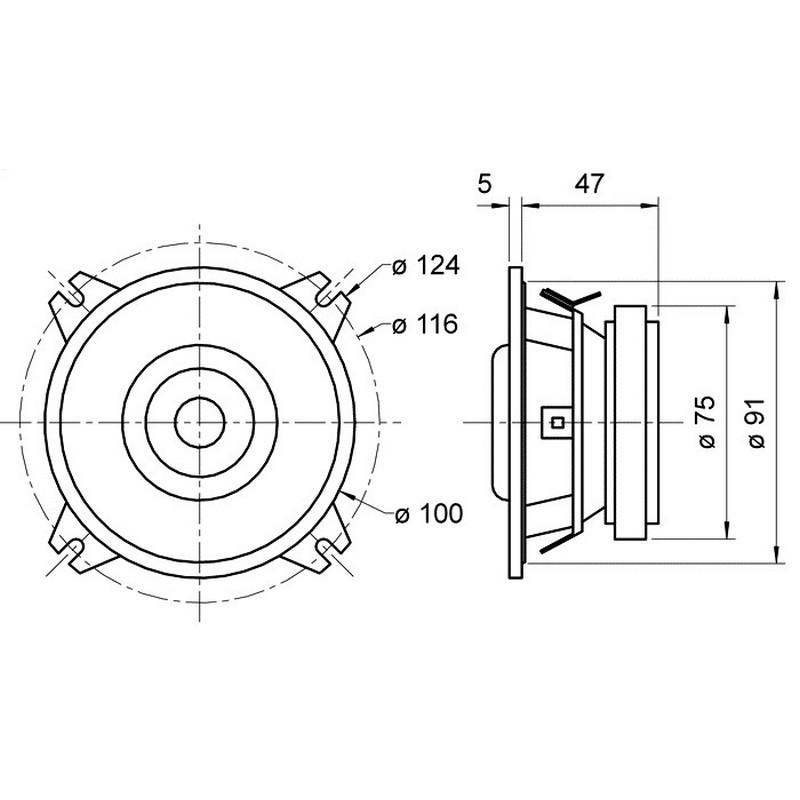

| Sound wall opening | 91 mm |
| Weight net | 0,64 |
| DC resistance Rdc | 3.6 Ohm |
| Mechanical Q-factor Qms | 8,17 |
| Electric Q-factor Qes | 0,92 |
| Total Q factor Qts | 0,83 |
| Effective membrane surface Sd | 50 cm2 |
| Vibration coil inductance L | 0,37 mH |
| Temperature range | −25 ... 70 °C |
