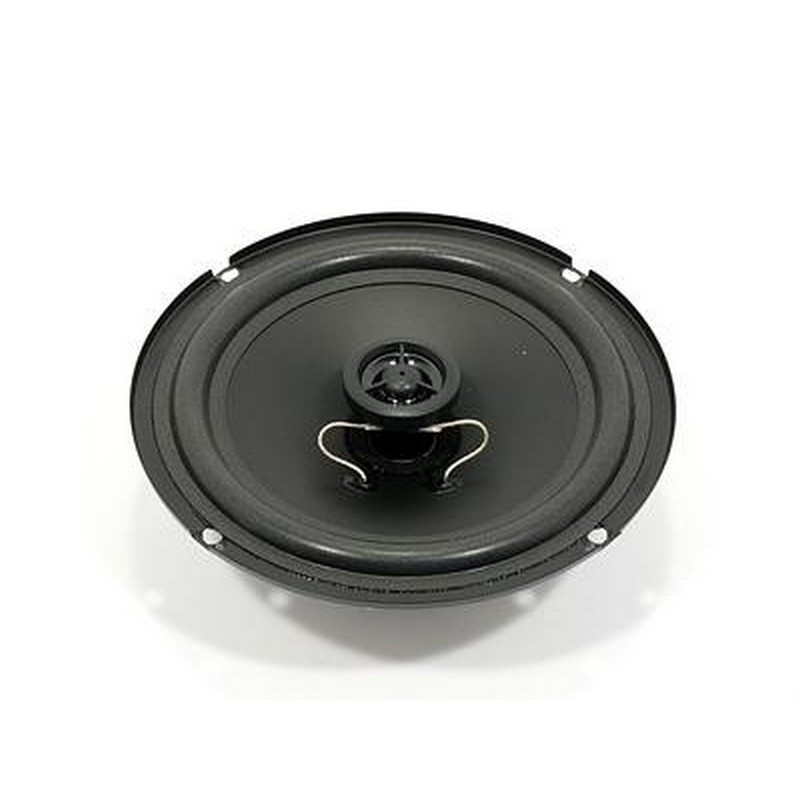

Visaton FX 16 - 4 Ohm coaxial loudspeaker
16 cm (5") 2-way coaxial loudspeaker
Visaton FX 16 - 4 Ohm coaxial loudspeaker
16 cm (5") 2-way coaxial loudspeaker
€27.66
Our previous price
€39.52
Save 30%
Tax included
Shipping excluded
4-0152
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
16 cm (6.5") 2-way coaxial loudspeaker with standard basket.
Integrated frequency switch (condenser) for the tweeter.
Easy installation in vehicles with installation locations for 16 cm loudspeakers.
Waterproof polypropylene membrane.
Applications
- Vehicles
- motorhome
Characteristics
- Waterproof membrane
- Metal basket
- coaxial speakers
Technical data
| Rated load capacity | 40 W |
|---|---|
| Music loading | 60 W |
| Nominal impedance Z | 4 Ohms |

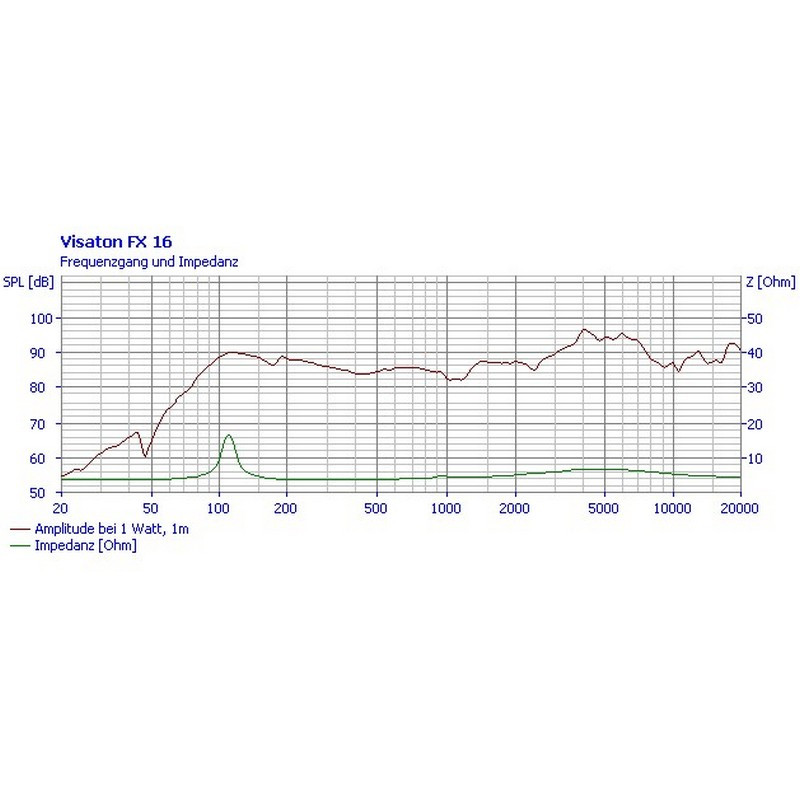

| Transmission range (-10 dB) | 60–20000 Hz |
| Medium sound pressure level | 86 dB (1 W/1 m) |

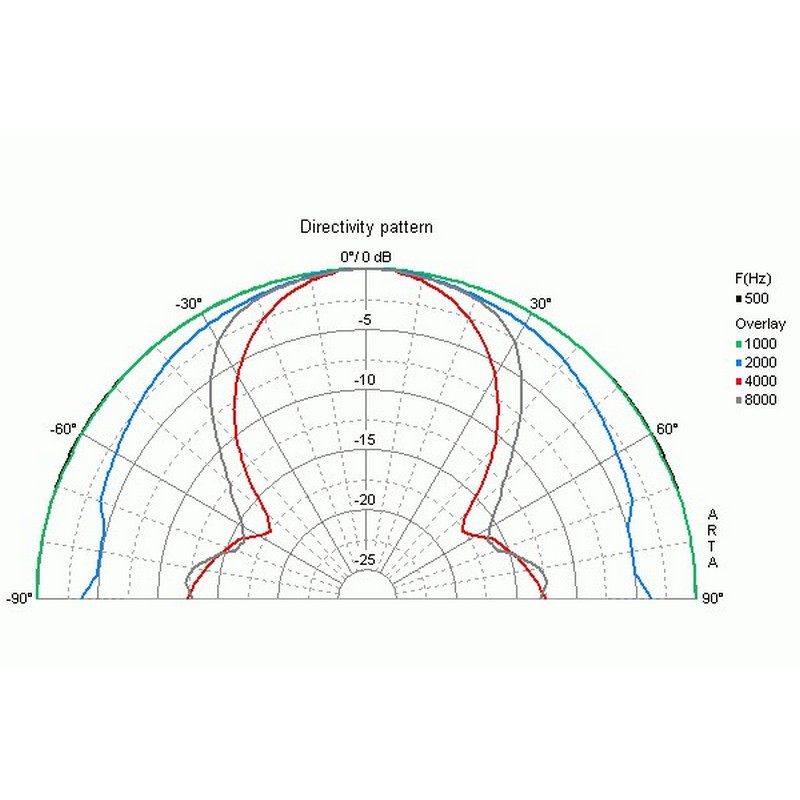

| Beam angle (-6 dB) | 60°/4000 Hz |
| Reaction frequency fs | 105 Hz |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 6,3 mm |

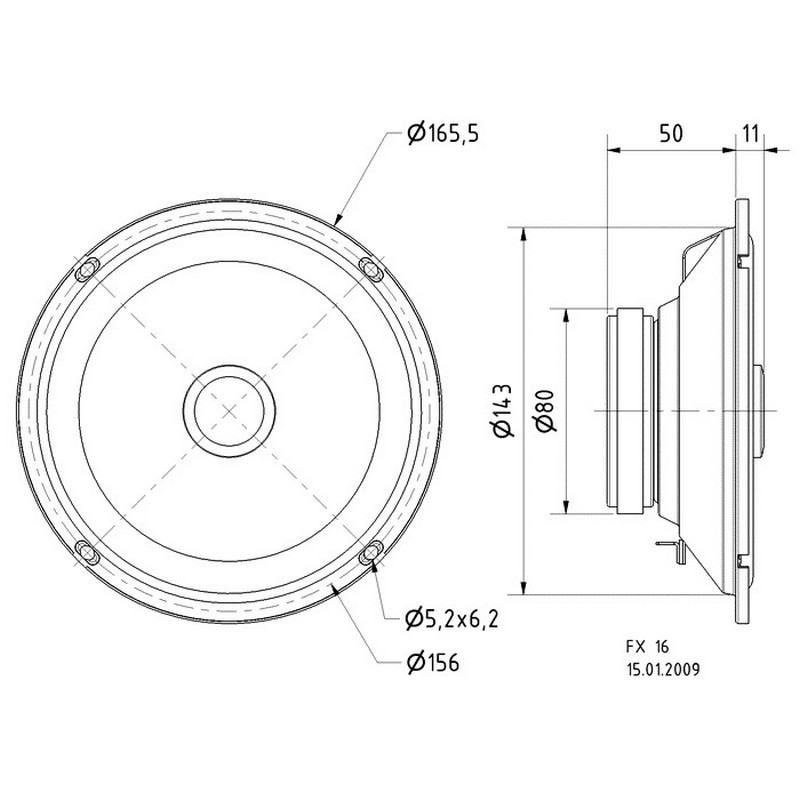

| Sound wall opening | 144 mm |
| Weight net | 0,6 % |
| Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-) |
| Temperature range | −25 ... 70 °C |
