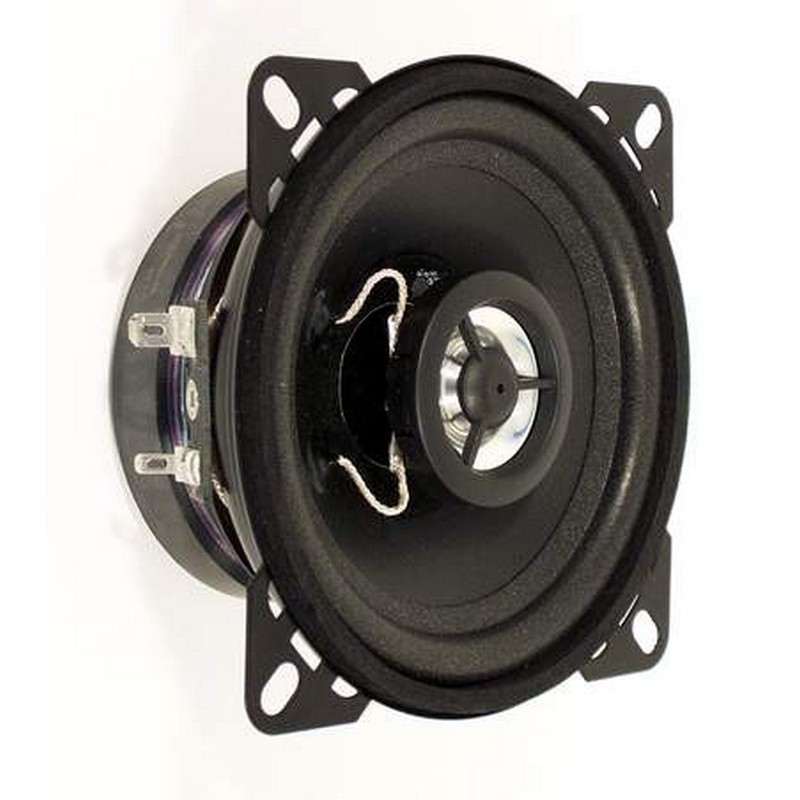

Visaton FX 10 - 4 Ohm coaxial loudspeaker
10 cm (4") 2-way coaxial loudspeaker
Visaton FX 10 - 4 Ohm coaxial loudspeaker
10 cm (4") 2-way coaxial loudspeaker
€20.51
Our previous price
€29.30
Save 30%
Tax included
Shipping excluded
4-0150
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
10 cm (4") 2-way coaxial loudspeaker with Euro standard basket.
Integrated frequency switch (condenser) for the tweeter.
Easy installation in vehicles with installation locations for 10 cm speakers.
Waterproof polypropylene membrane.
Applications
- Vehicles
- motorhome
Characteristics
- Waterproof membrane
- Metal basket
- coaxial speakers
Technical data
| Rated load capacity | 40 W |
|---|---|
| Music loading | 70 W |
| Nominal impedance Z | 4 Ohms |

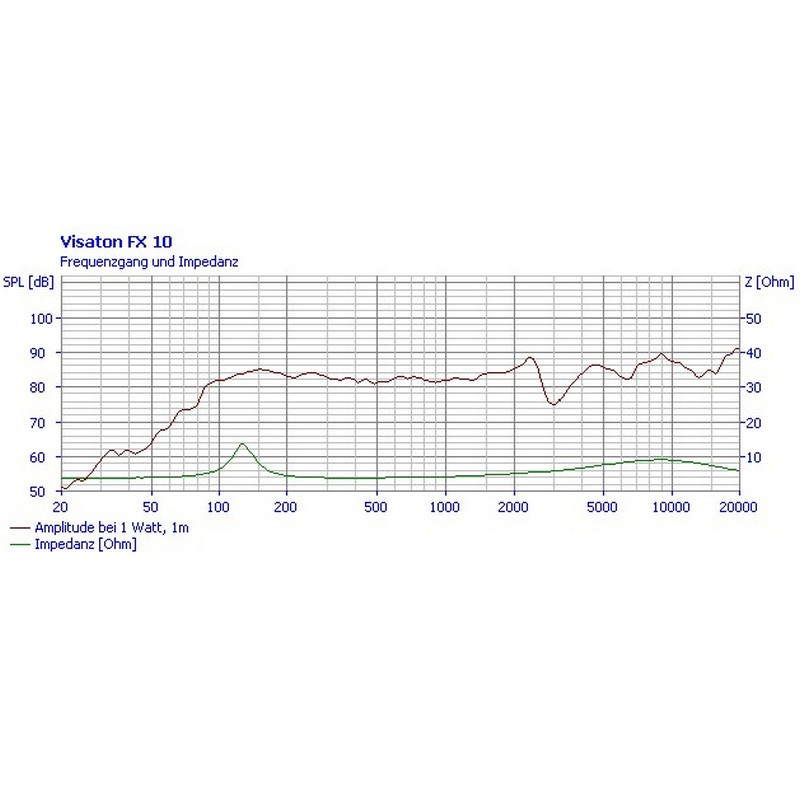

| Transmission range (-10 dB) | 70–22000 Hz |
| Medium sound pressure level | 84 dB (1 W/1 m) |

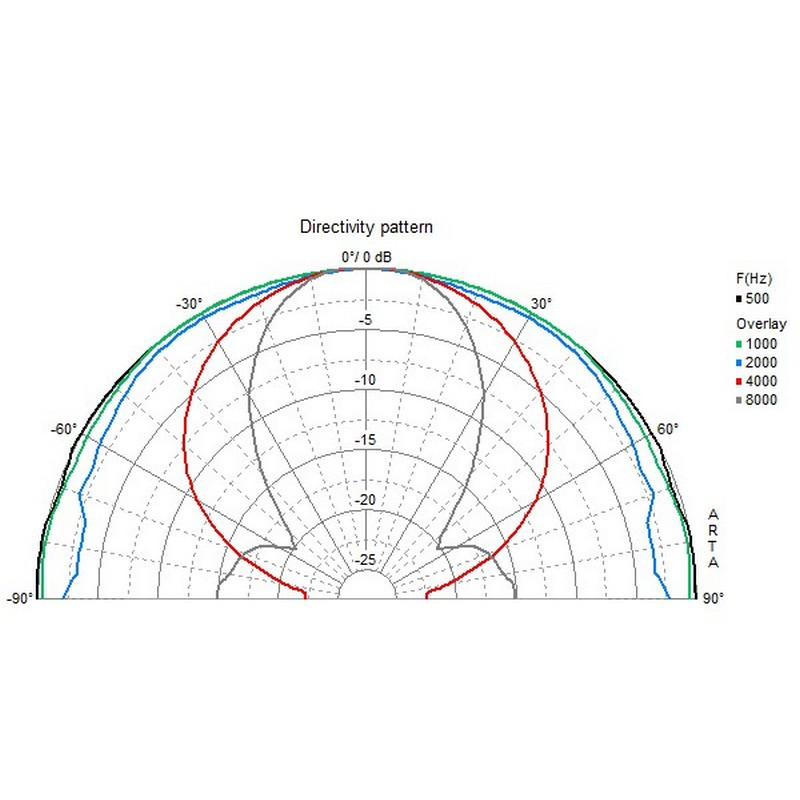

| Beam angle (-6 dB) | 88°/4000 Hz |
| Border deflection | +/-2 mm |
| Reaction frequency fs | 110 Hz |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 25 mm |
| Winding height | 6 mm |
| Sound wall opening | 93 mm |
| Weight net | 0.4 kg |
| Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-) |
| Temperature range | −25 ... 70 °C |
