Visaton SUB T-30.60 Speaker Kit Visaton SUB T-30.60 Speaker Kit Visaton SUB T-30.60 Speaker Kit
Visaton SUB T-30.60 Speaker Kit
Visaton SUB T-30.60 Speaker Kit
Visaton SUB T-30.60 Speaker Kit

Visaton SUB W-20.39 Speaker kit Subwoofer 1 piece

Price!

(quantity 1 = 1 piece, quantity 2 = 1 pair)

€124.95
Our previous price €178.50
Save 30%

€124.95 pro Stück

Tax included Shipping excluded
Visaton
3-0083
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

Features and sound

The SUB W-20.39 is an ideal subwoofer to support smaller and medium speaker boxes in the bass sector.
It is powerful enough to reproduce strong bass attacks in normal rooms and still has compact external dimensions.
In large rooms or if permanently extreme levels are required, a second subwoofer of the same design can be added.

If the SUB W-20.39 is placed near a television set, the magnetically shielded W 200 SC-4 OHM should be used instead of the W 200 S-4 OHM.
This avoids image disturbances due to the magnetic scattering field.
It is also possible, of course, to use the 8-ohm variants of the tweeters (W 200 S - 8 OHM, W 200 SC - 8 OHM) if the amplifier used does not allow lower impedances or if several subwoofers are to be combined.
The use of a subwoofer amplifier with integrated active frequency switch is recommended.
Then a deep-bass elevation may also be carried out.

Technical data

Rated load capacity 75 W
Music loading 115 W
Nominal impedance Z 4 Ohms
Transmission range (-10 dB) 30-x Hz
Medium sound pressure level 85 dB (1 W/1 m)
Housing principle Bass reflex
Net volume 39 l

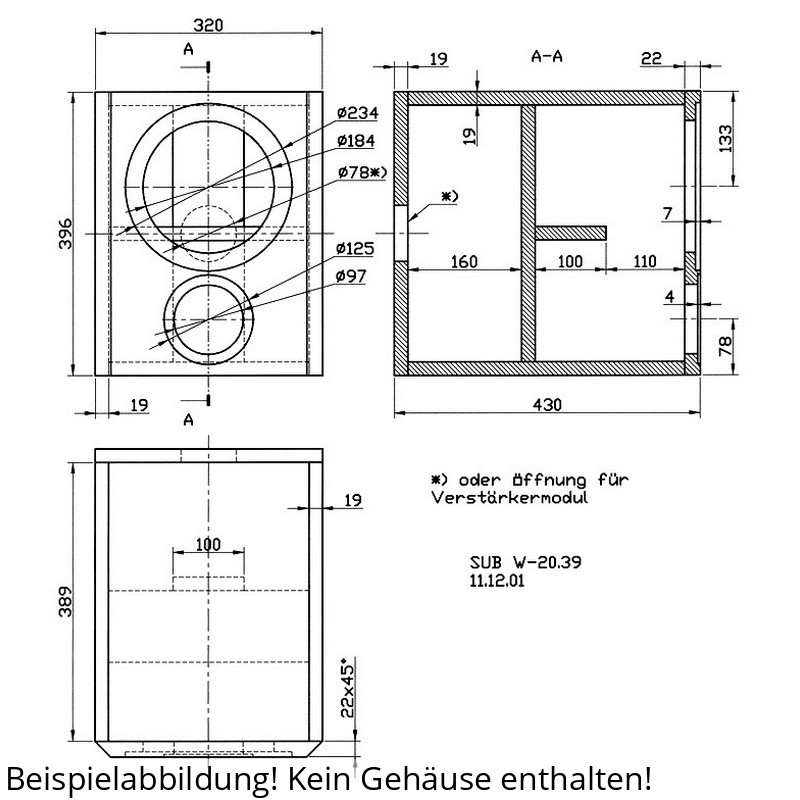

Exterior height 396 mm
External dimension width 320 mm
Exterior depth 430 mm


Scope

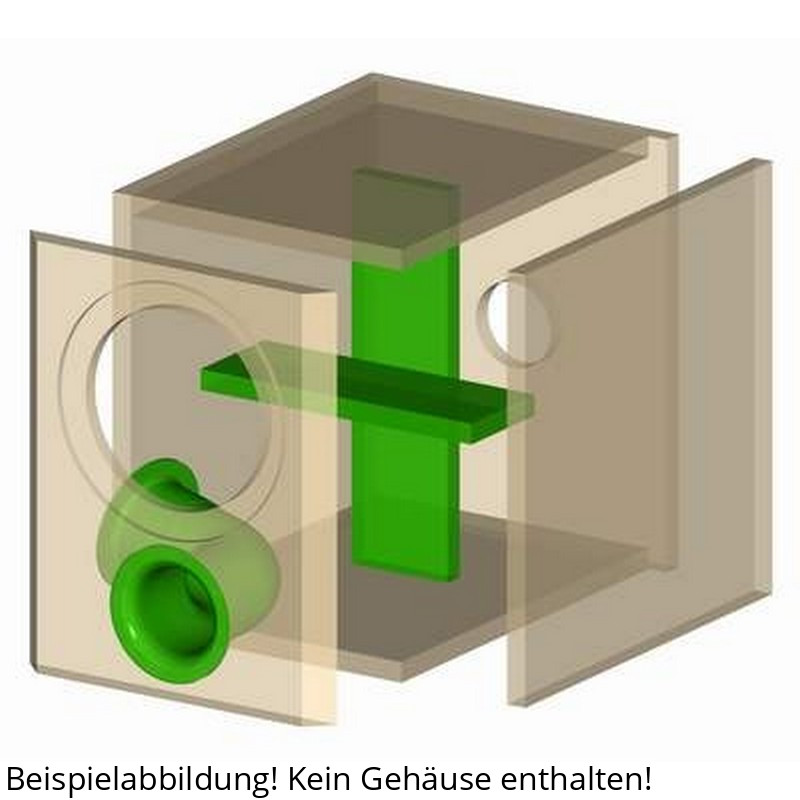

The kit contains all components listed in this list of fittings, but no housing. Housing kits or CNC-freed sound walls are also available here in the shop.

Low-tone W 200 S - 4 OHM 1 pc.
Bass reflex tube BR 25.50 (full length) 1 pc.
Connection terminal ST 77 1 pc.
Damping material Polyester wool 2 btl.
Wooden screws 3,5 x 25 mm 13 pcs.
Cable 2 x 2,5 mm2 0,5 m
